Can Communication System: Schematic

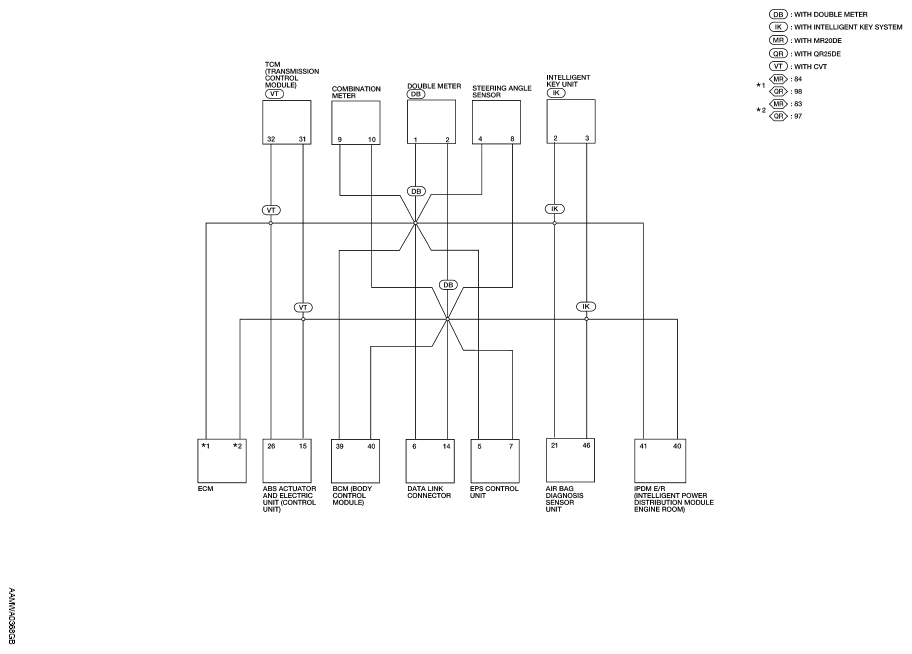

Fig 1: CAN Communication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
