System - Engine Mechanical & Other

WARNING: This page is about a different variant/trim than selected.

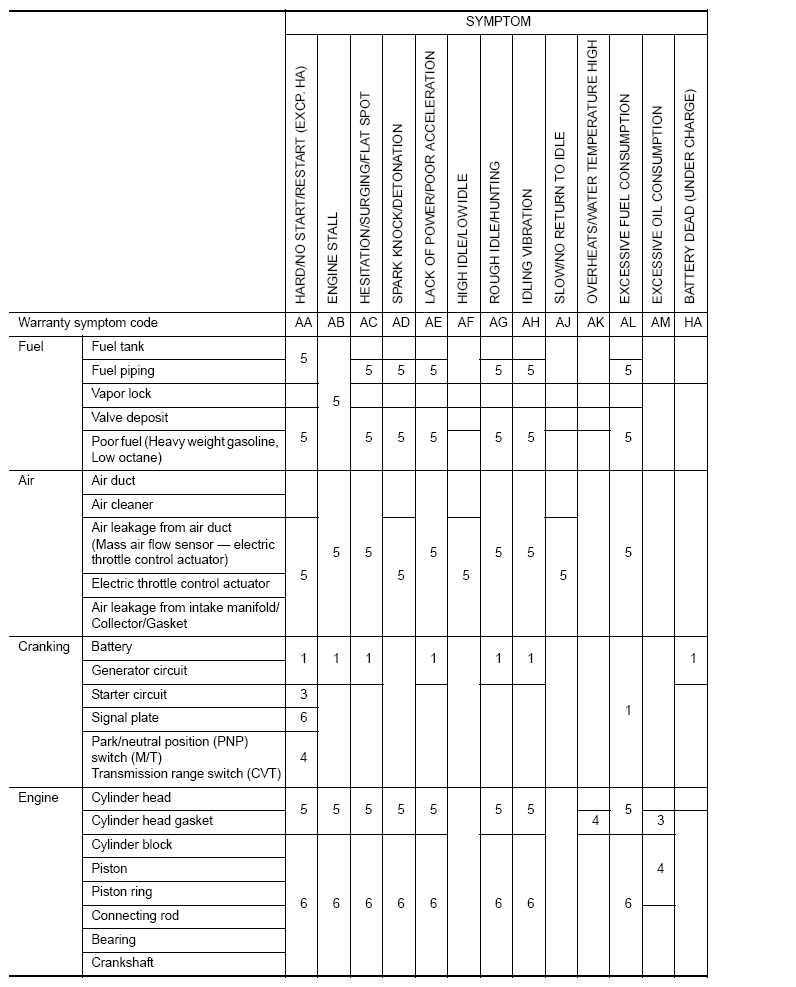

Fig 1: Engine Mechanical & Other System Symptom Matrix Chart (1 Of 2)
G08186081Courtesy of NISSAN NORTH AMERICA, INC.

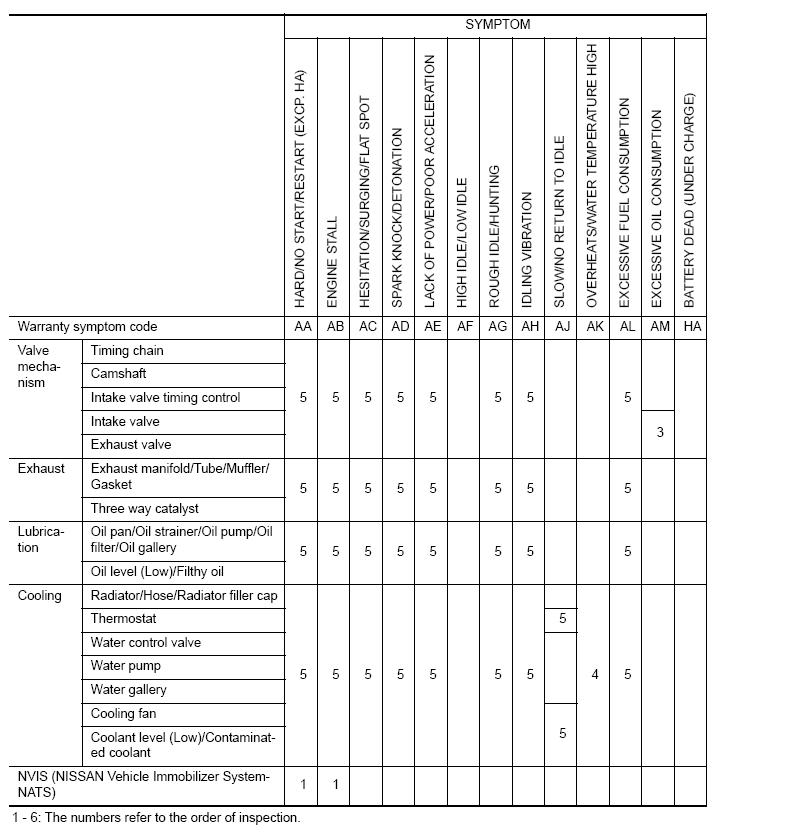

Fig 2: Engine Mechanical & Other System Symptom Matrix Chart (2 Of 2)
G08186082Courtesy of NISSAN NORTH AMERICA, INC.
