Front Suspension Assembly: Component

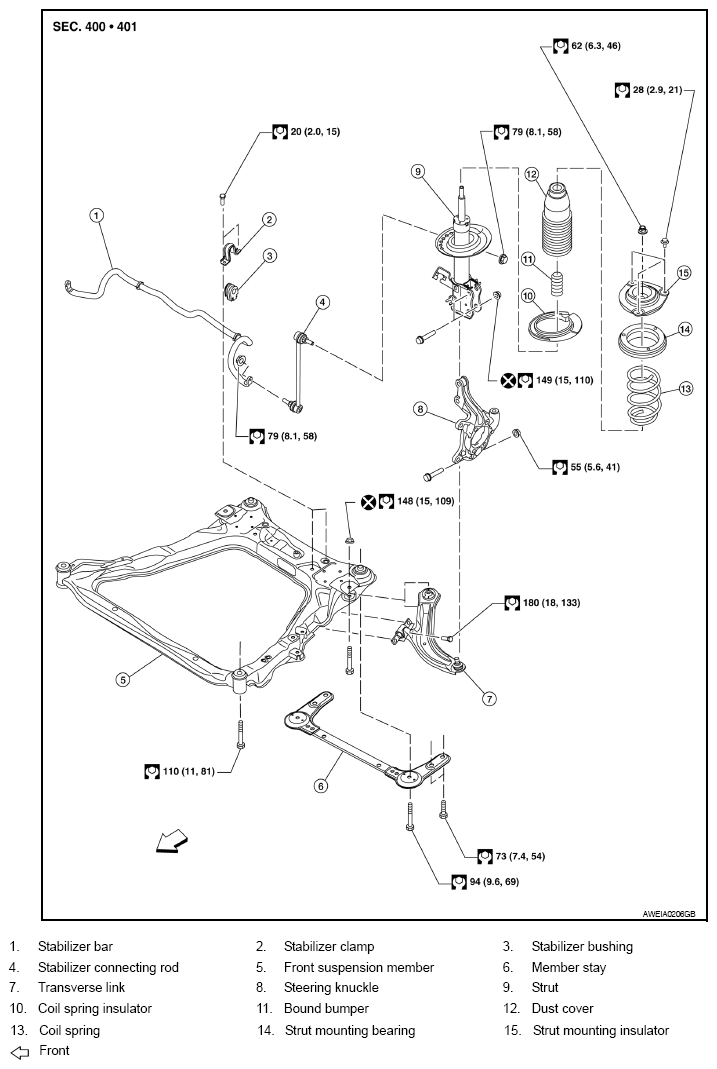

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications
G08180258Courtesy of NISSAN NORTH AMERICA, INC.
