Removal and Installation: Components

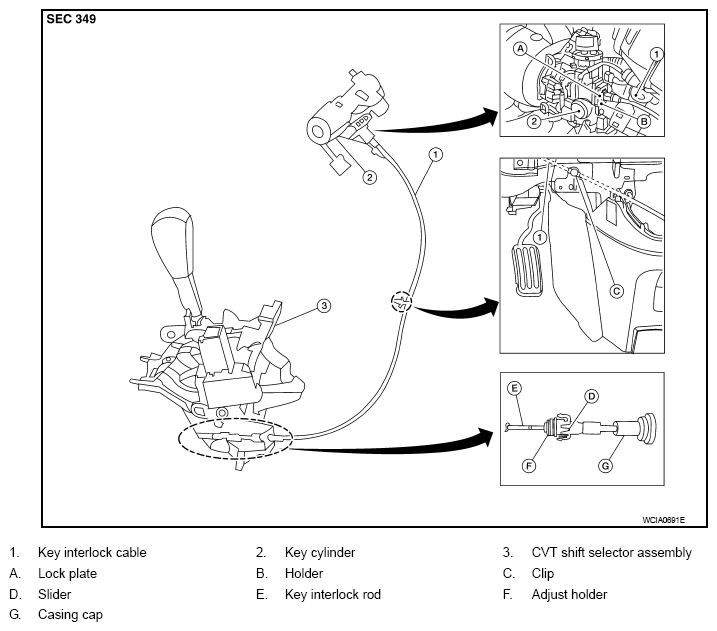

Fig 1: Identifying Key Interlock Cable Components
G08180824Courtesy of NISSAN NORTH AMERICA, INC.
