Primary Speed Sensor: Components

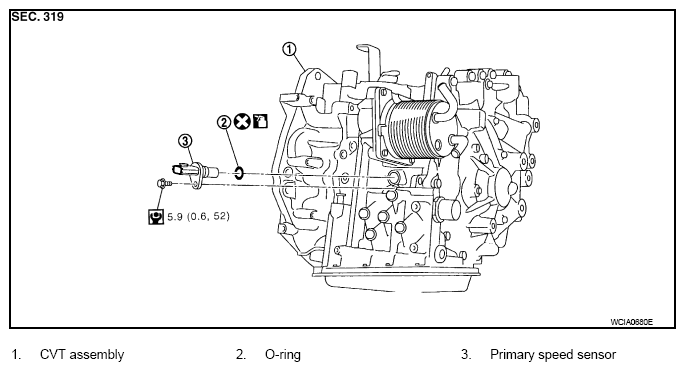

Fig 1: Identifying Primary Speed Sensor Replacement Components With Torque Specifications
G08180851Courtesy of NISSAN NORTH AMERICA, INC.
