Control Cable Components

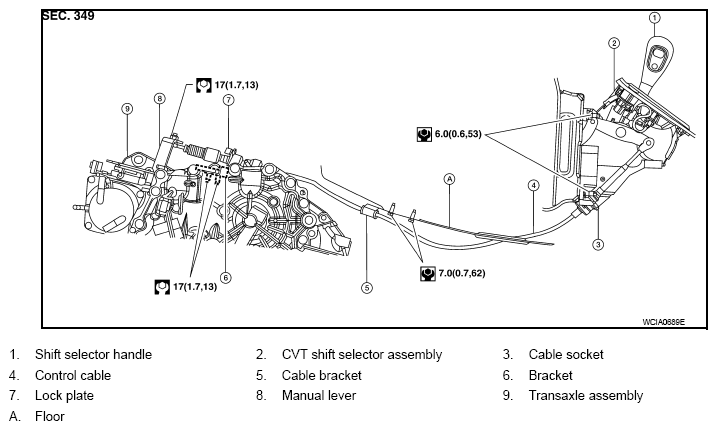

Fig 1: Control Cable Replacement Components With Torque Specifications
G08180817Courtesy of NISSAN NORTH AMERICA, INC.
