Component Inspection (Fuel Injector Relay)

  1. CHECK FUEL INJECTOR RELAY
    1. Turn ignition switch OFF.
    2. Remove fuel injector relay.
    3. Check the continuity between fuel heater relay terminals as per the following conditions.
      Fuel injector relay Conditions Continuity
      + -
      Terminal
      3 5 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed
      6 7 12 V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

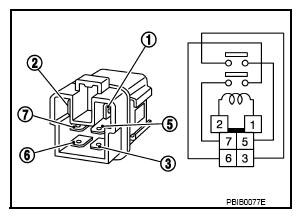

      Fig 1: Checking Continuity Between Fuel Heater Relay Terminals
      G08690411Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace fuel injector relay.
