System - Basic Engine Control System

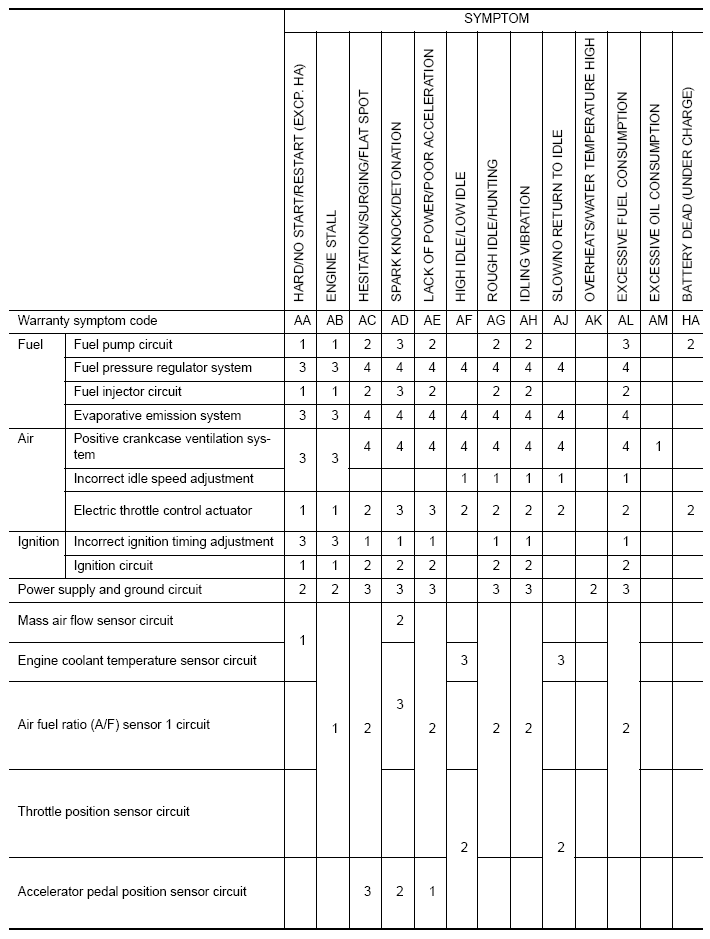

Fig 1: Engine Control System Symptoms Chart (Basic Engine Control) 1 Of 2)
G08909138Courtesy of NISSAN NORTH AMERICA, INC.

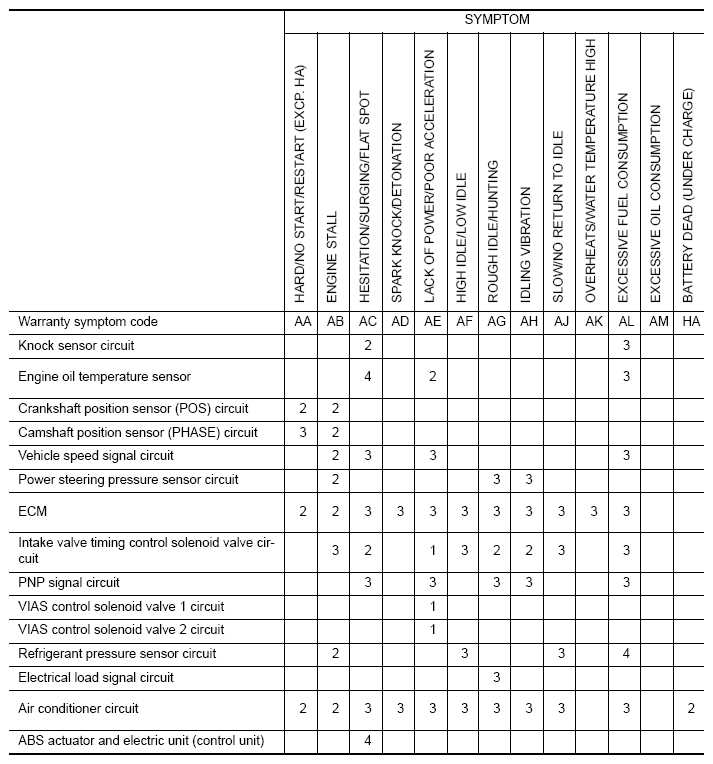

Fig 2: Engine Control System Symptoms Chart (Basic Engine Control) 2 Of 2)
G08909139Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.
