Removal and Installation: Removal
- Disconnect battery negative terminal. Refer to
"EXPLODED VIEW
".
- Drain brake fluid. Refer to
"DRAIN AND REFILL
".
- Remove the cowl top. Refer to
"REMOVAL AND INSTALLATION
".

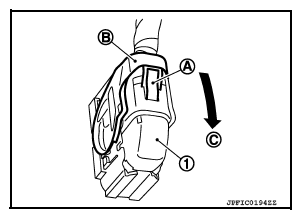

- Disconnect ABS actuator and electric unit (control unit) harness connector (1), follow the procedure described below.
- Push the pawl (A).
- Move the lever (B) in the direction (C) until locked.
- Disconnect ABS actuator and electric unit (control unit) harness connector.
- Loosen flare nut of brake tube using a flare nut wrench, and then remove brake tube from ABS actuator and electric unit (control unit). Refer to
"FRONT: EXPLODED VIEW
".
- Remove ABS actuator and electric unit (control unit) and bracket.
- Remove bracket and bushing from ABS actuator and electric unit (control unit).
Courtesy of NISSAN NORTH AMERICA, INC.
