Body Control Module Connector End Views

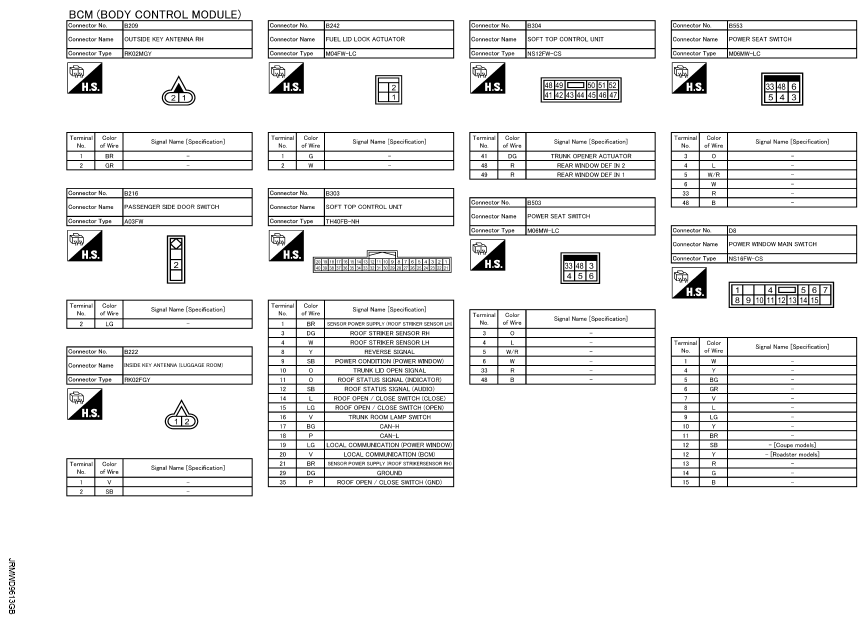

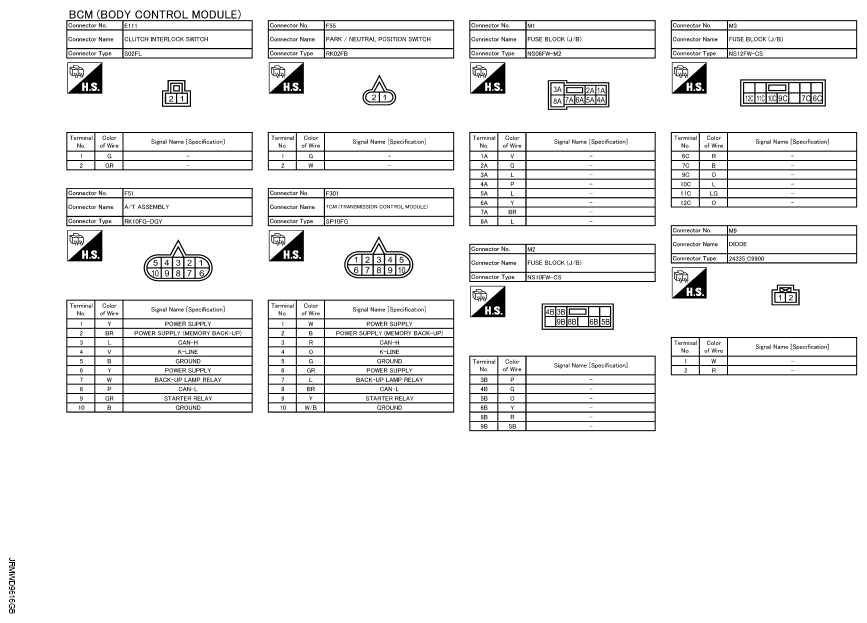

Fig 1: Body Control Module Connector End View (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

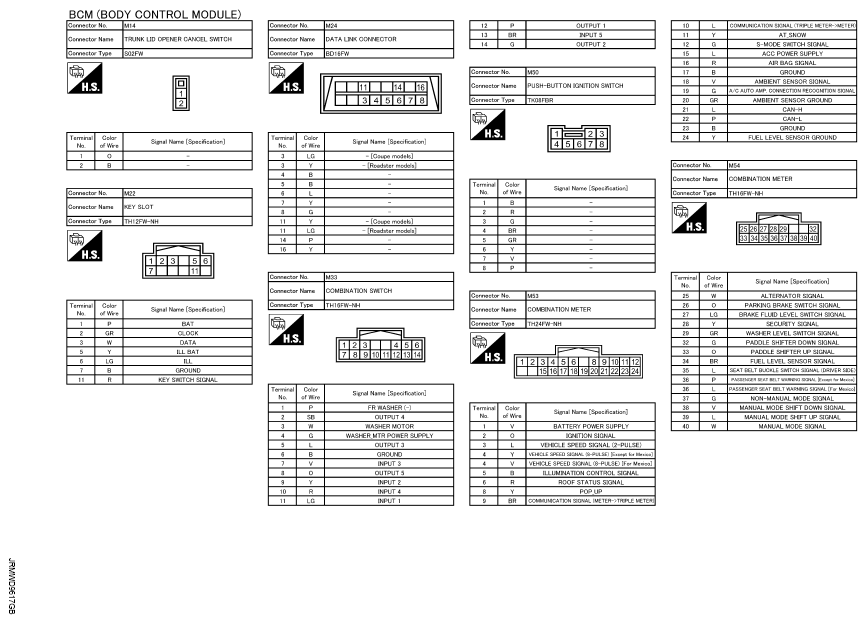

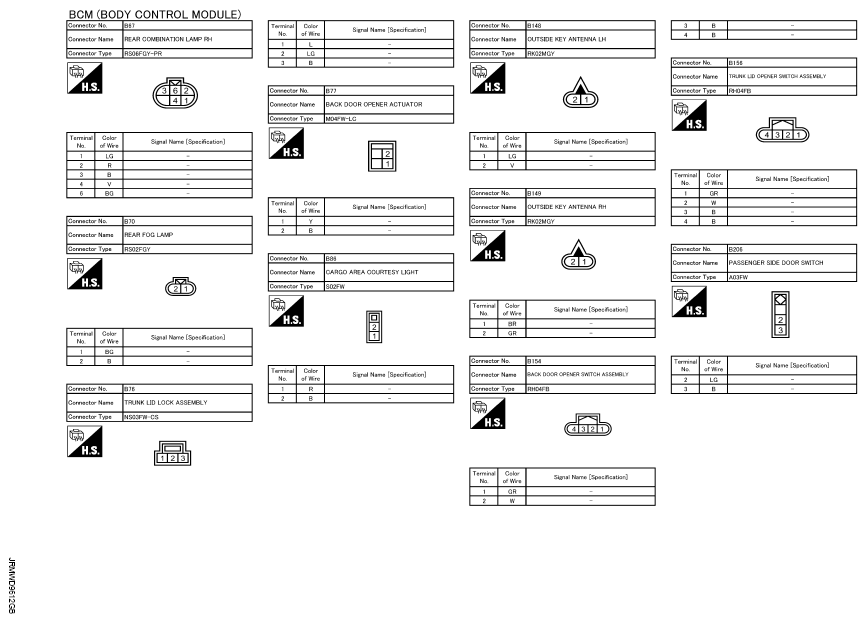

Fig 2: Body Control Module Connector End View (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

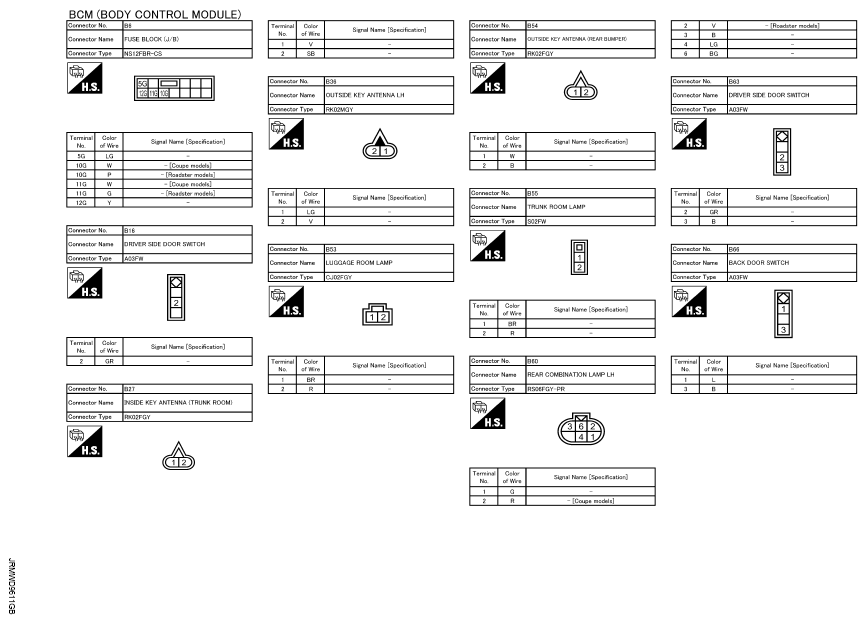

Fig 3: Body Control Module Connector End View (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

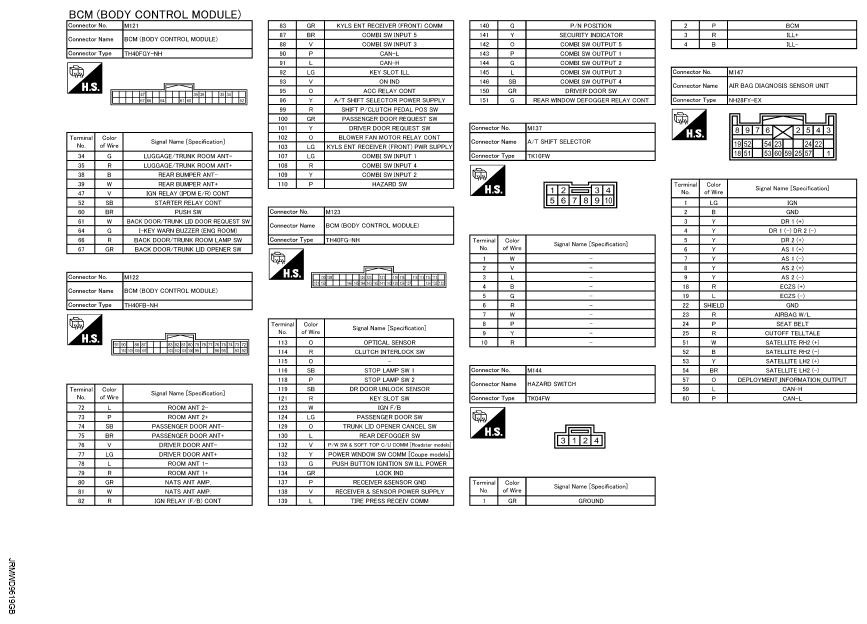

Fig 4: Body Control Module Connector End View (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

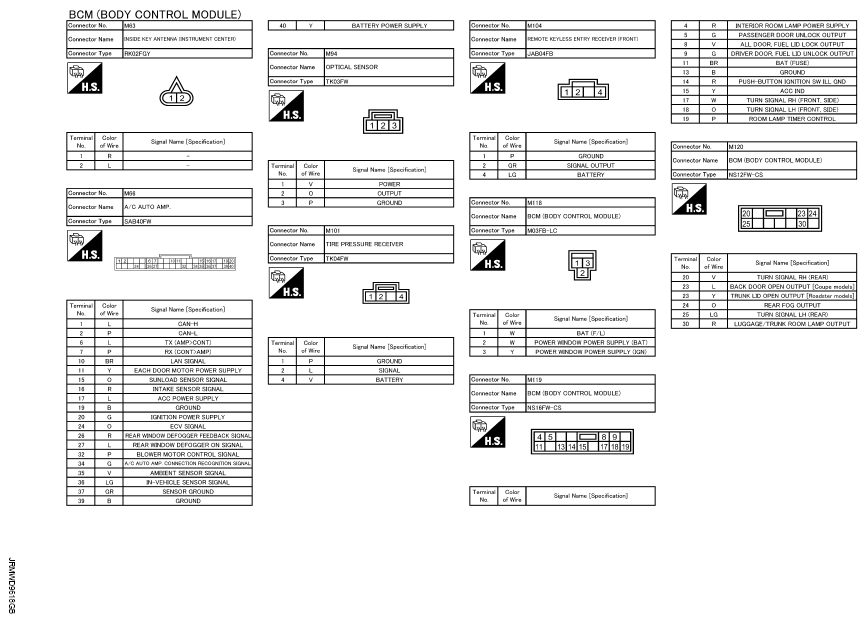

Fig 5: Body Control Module Connector End View (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

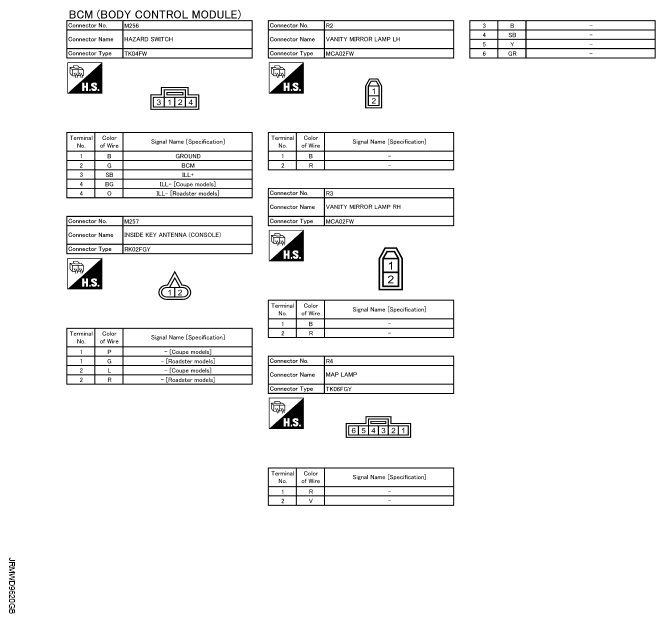

Fig 6: Body Control Module Connector End View (6 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

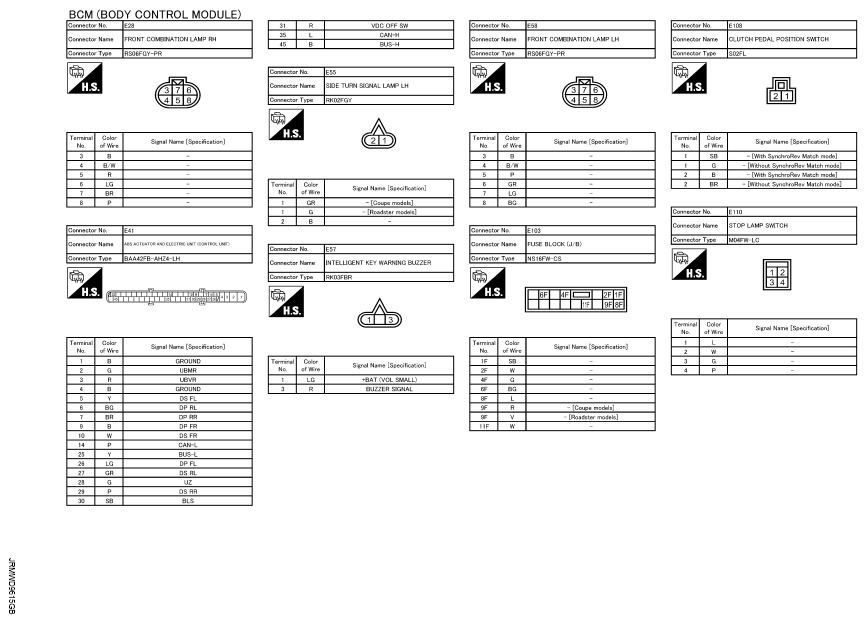

Fig 7: Body Control Module Connector End View (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

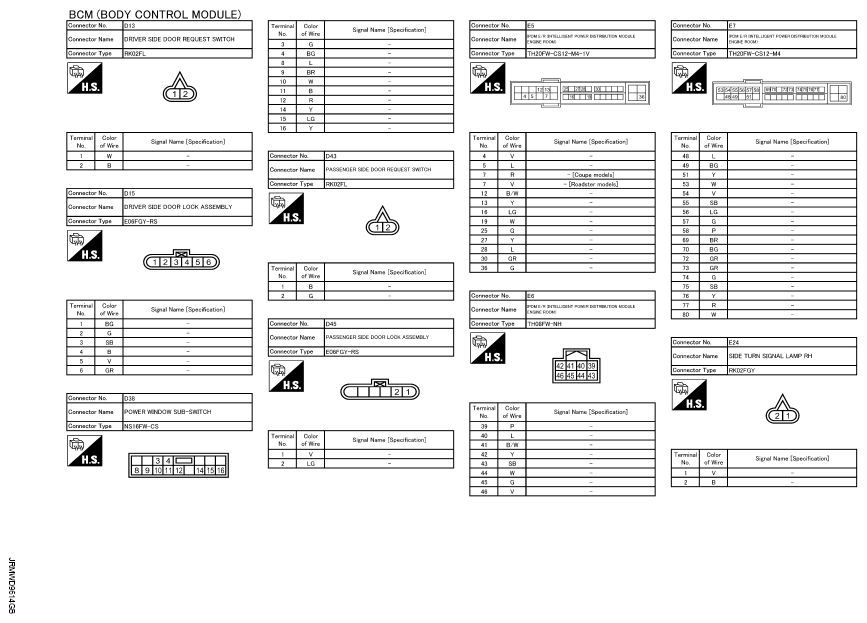

Fig 8: Body Control Module Connector End View (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Body Control Module Connector End View (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Body Control Module Connector End View (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
