Exploded View - Front Wheel Sensor

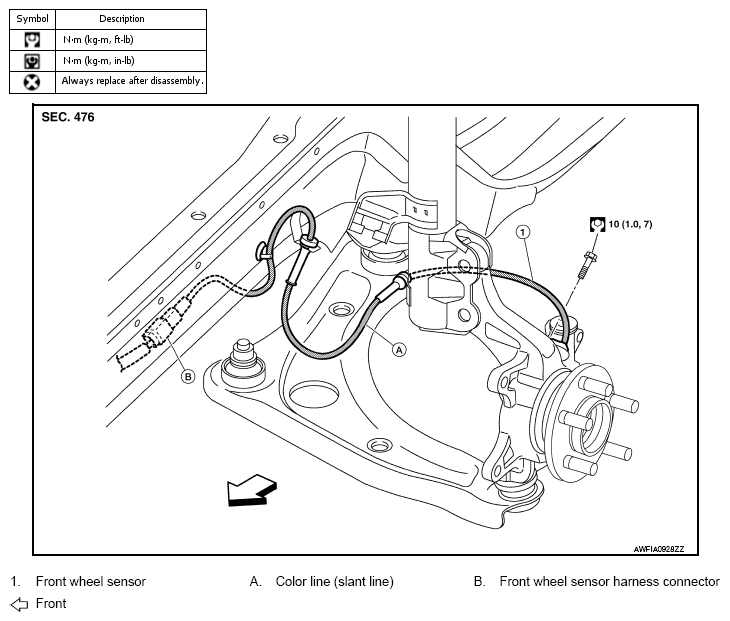

Fig 1: Front Wheel Sensor And Harness Connector With Torque Specification
G09141275Courtesy of NISSAN NORTH AMERICA, INC.
