Nissan-Datsun
>>
2014
>>
Juke SL, FWD, Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical
>>
Removal And Installation
>>
Intake Manifold
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

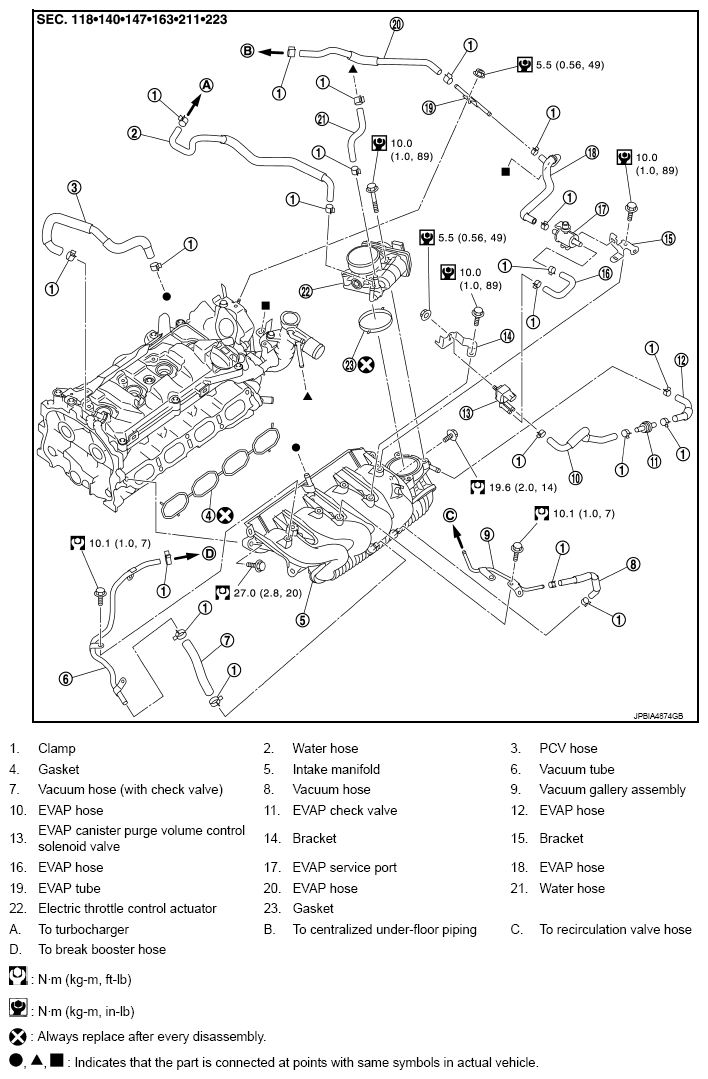

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
