Component Parts Location
WARNING: This page is about a different car, the 2014 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

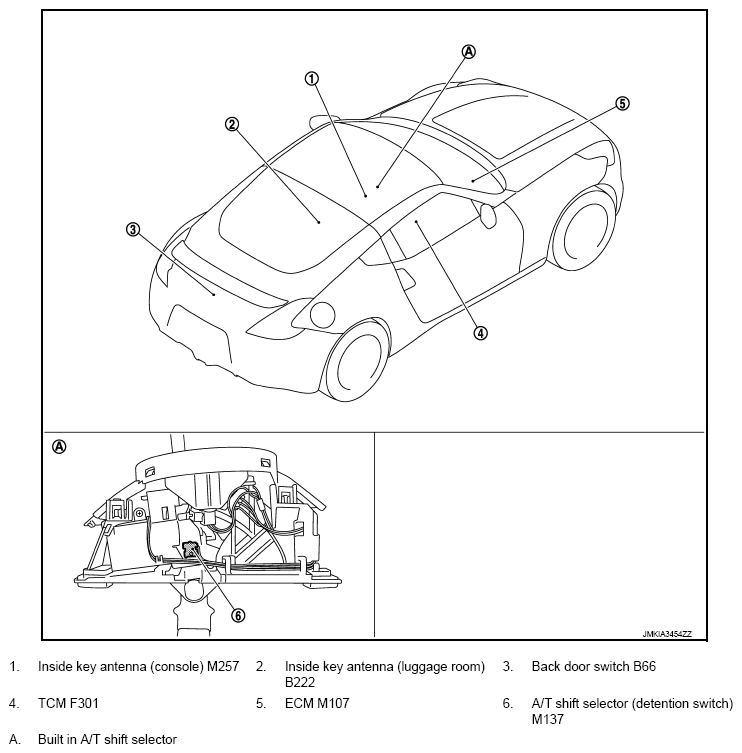

Fig 1: Vehicle Security System Component Parts Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

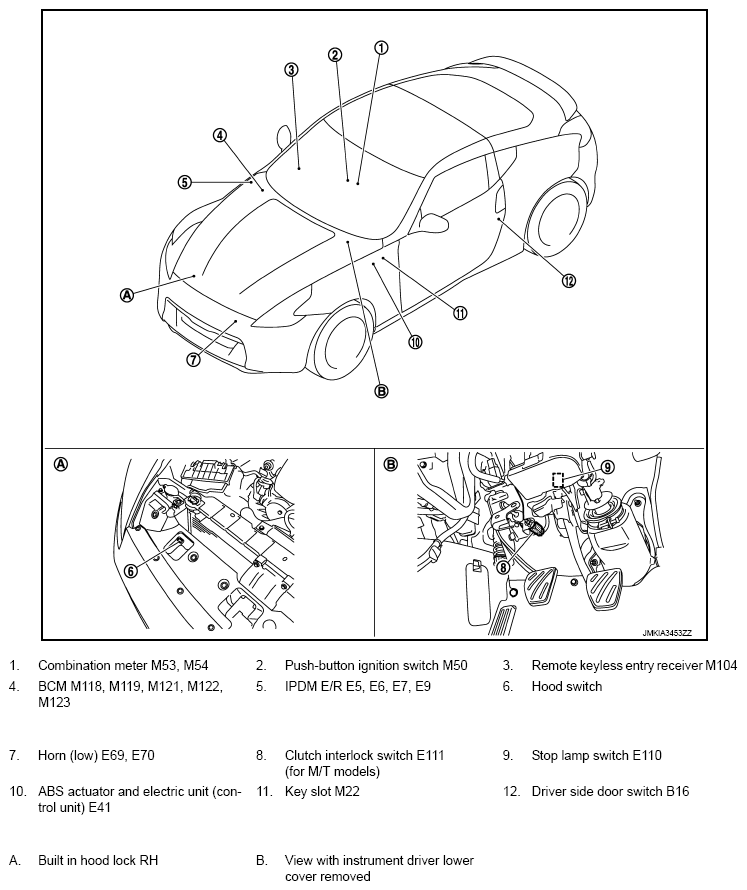

Fig 2: Vehicle Security System Component Parts Location (2 Of 2)
