System Diagram

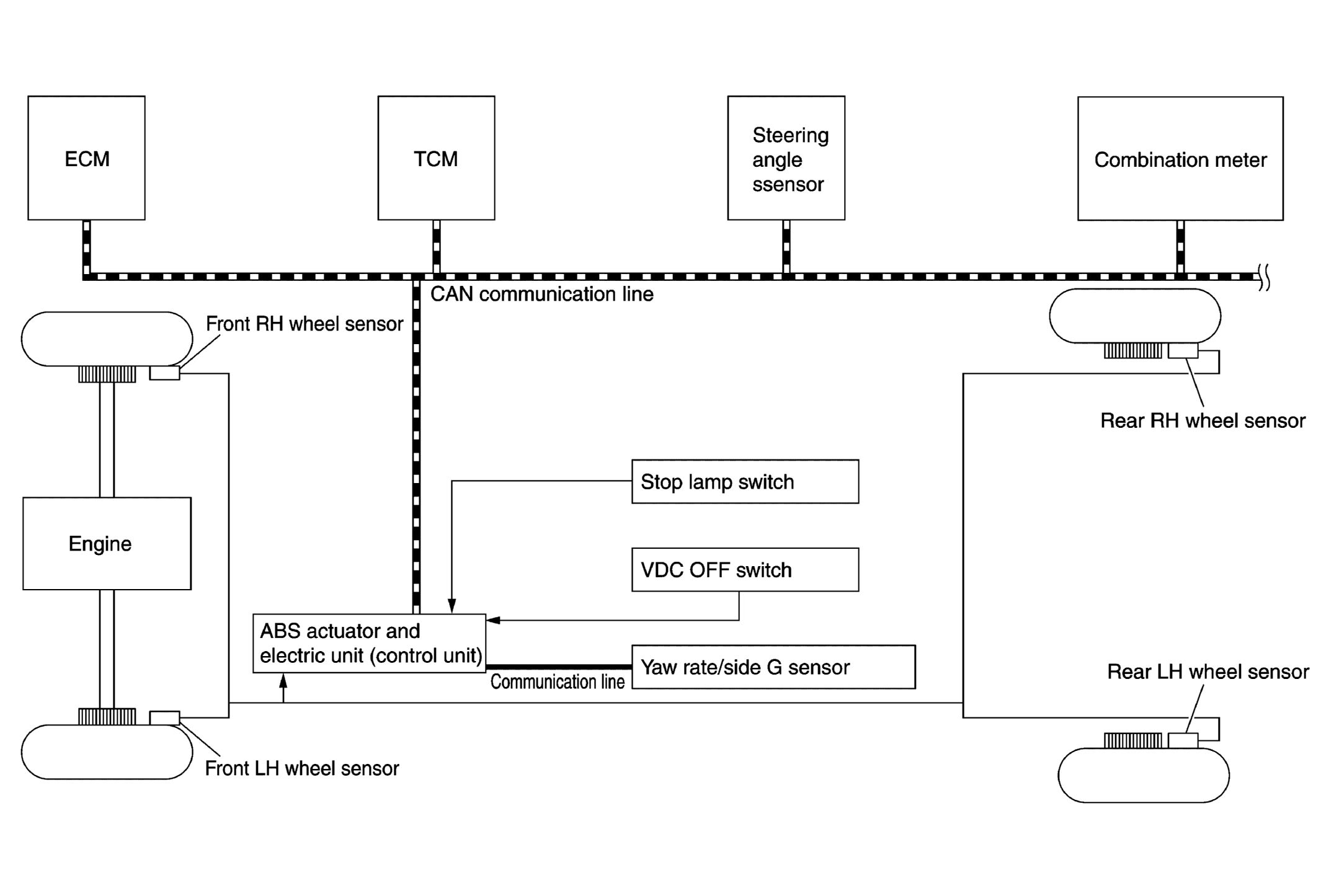

Fig 1: Brake Control - System Diagram

G07051379

Courtesy of NISSAN NORTH AMERICA, INC.
