Removal and Installation: Removal

CAUTION:

Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the ignition switch OFF.
Before replacing AV control unit, perform "READ CONFIGURATION" to save current vehicle specification. Refer to "CONFIGURATION (AV CONTROL UNIT): DESCRIPTION ".

NOTE: After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds. Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

Remove the battery negative terminal. Refer to "REMOVAL AND INSTALLATION (BATTERY) ".
Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
Remove the AV control unit screws (A) and partially remove the AV control unit (1).

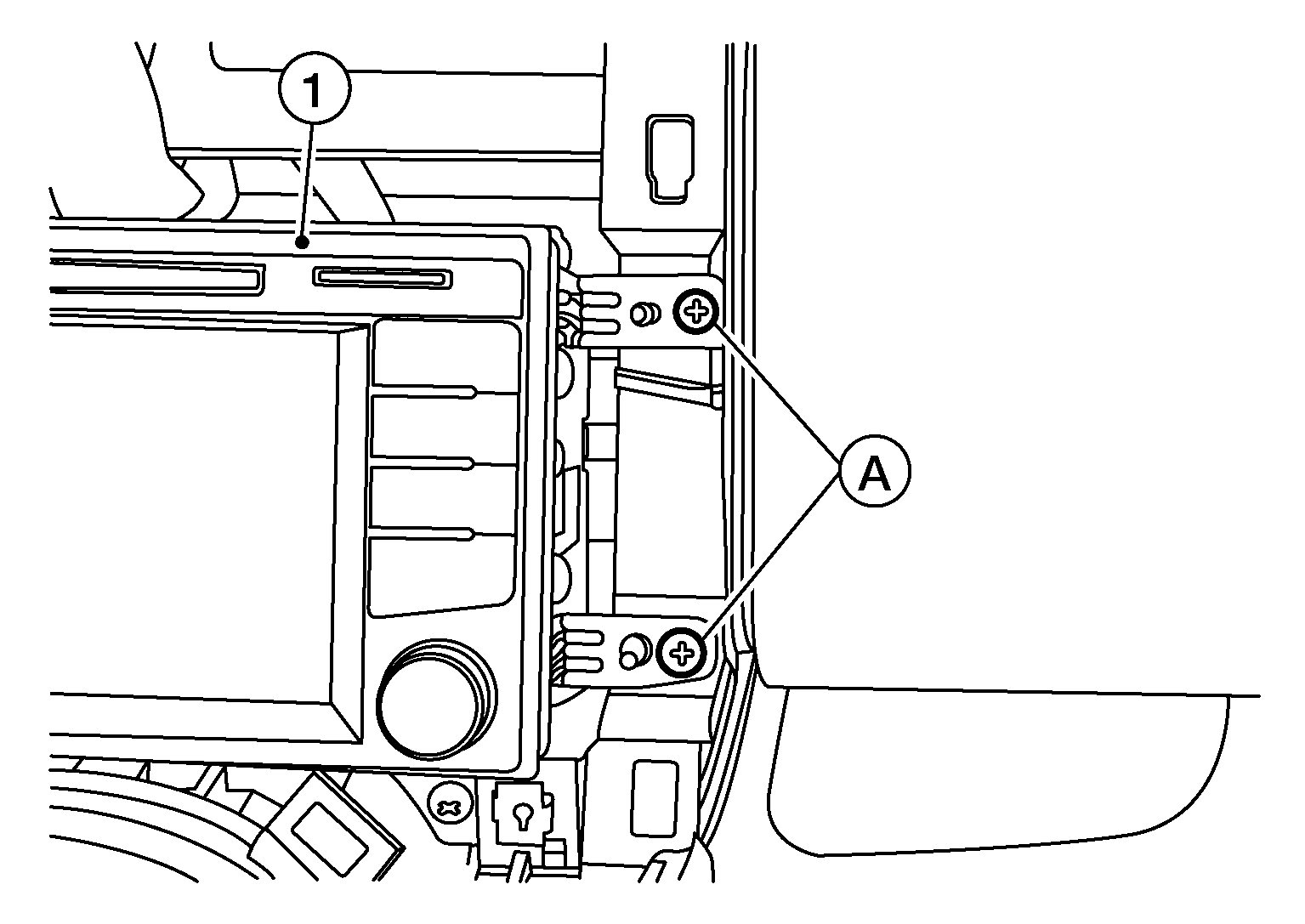

Fig 1: Identifying AV Control Unit And Screws
Courtesy of NISSAN NORTH AMERICA, INC.

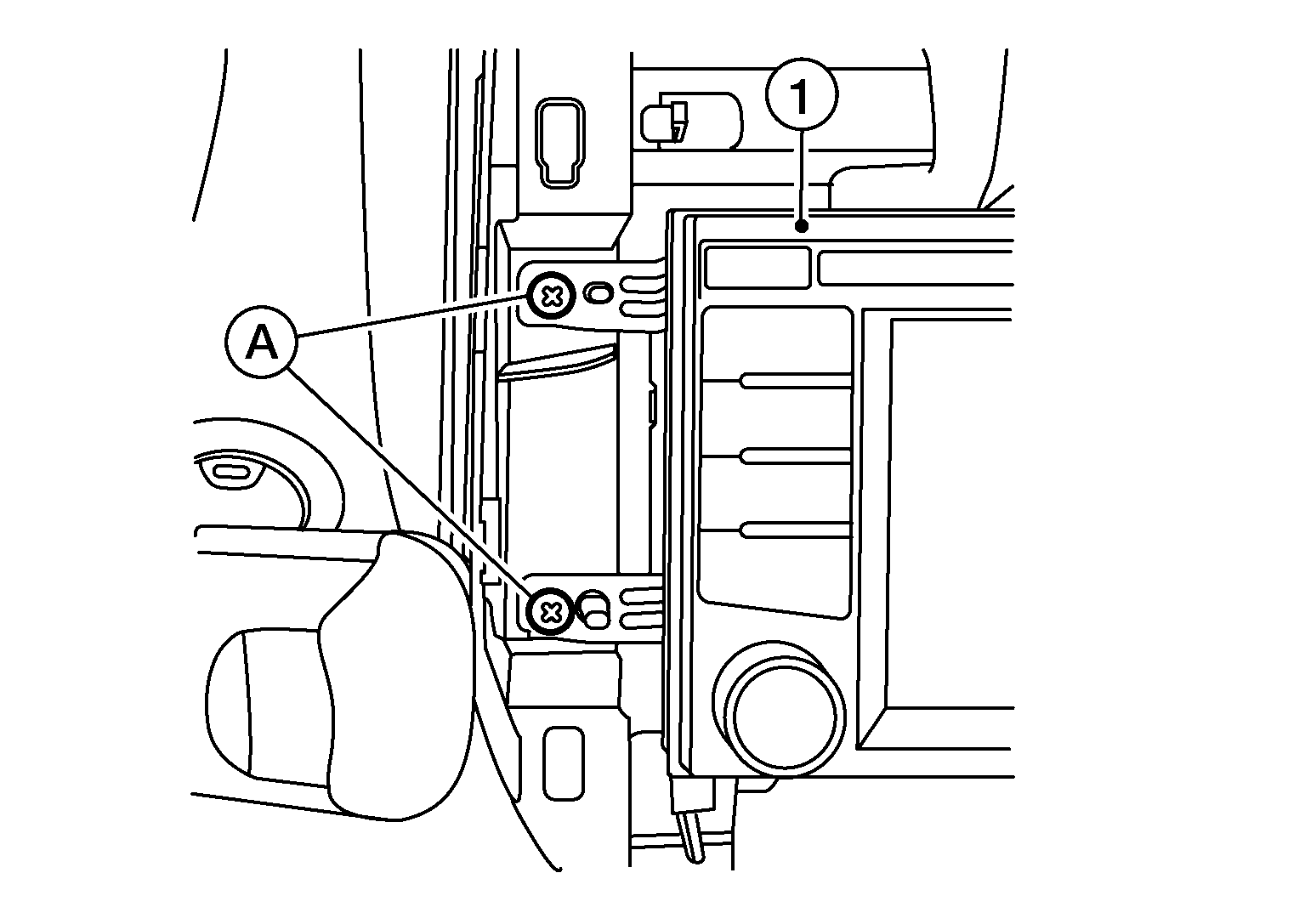

Fig 2: Identifying AV Control Unit And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connectors from the AV control unit and remove.
Remove the AV control unit bracket screws (A) and the AV control unit bracket (1) from each side of the AV control unit (if necessary).

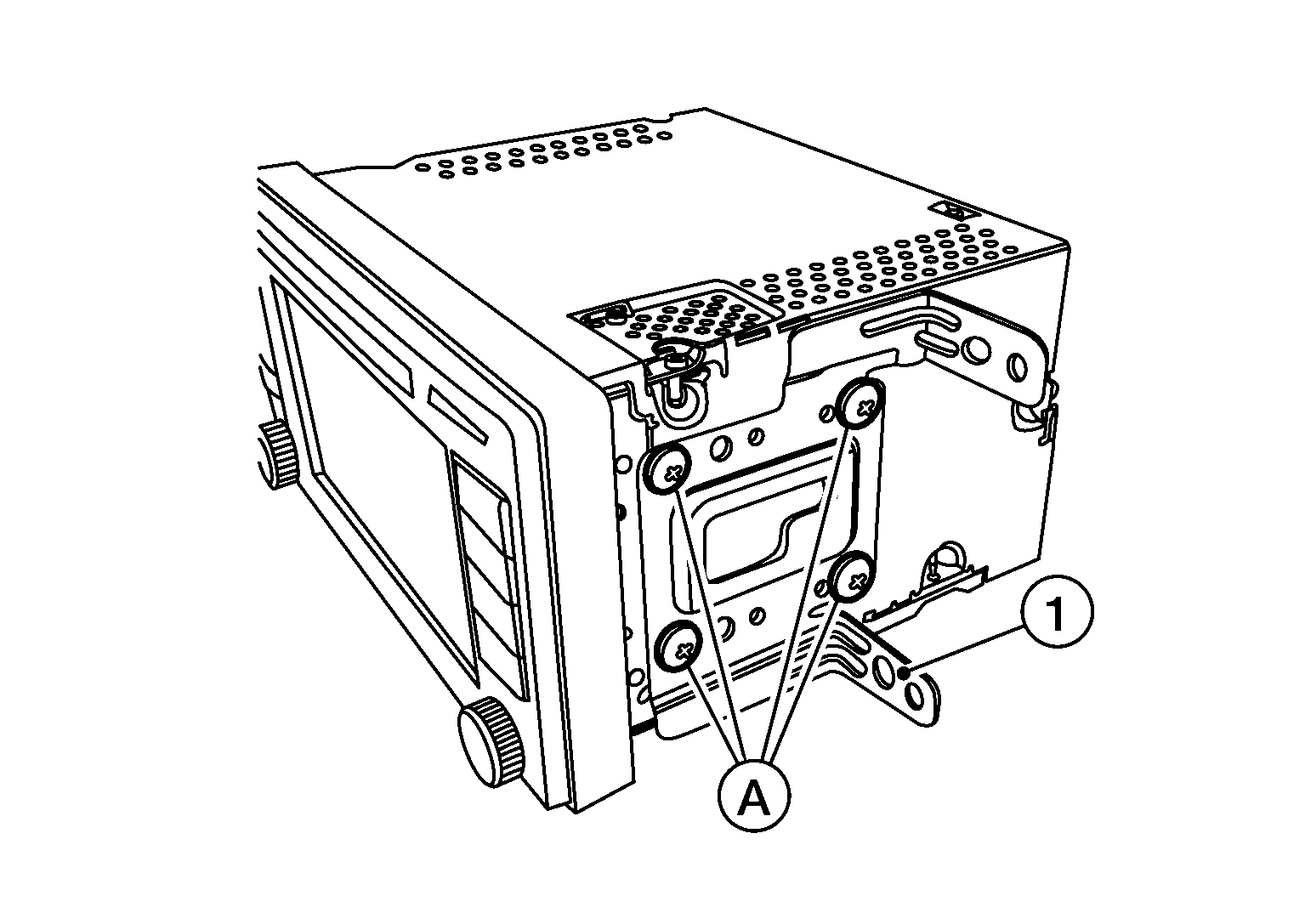

Fig 3: Identifying AV Control Unit Bracket And Screws
