Exploded View With Torque Specifications

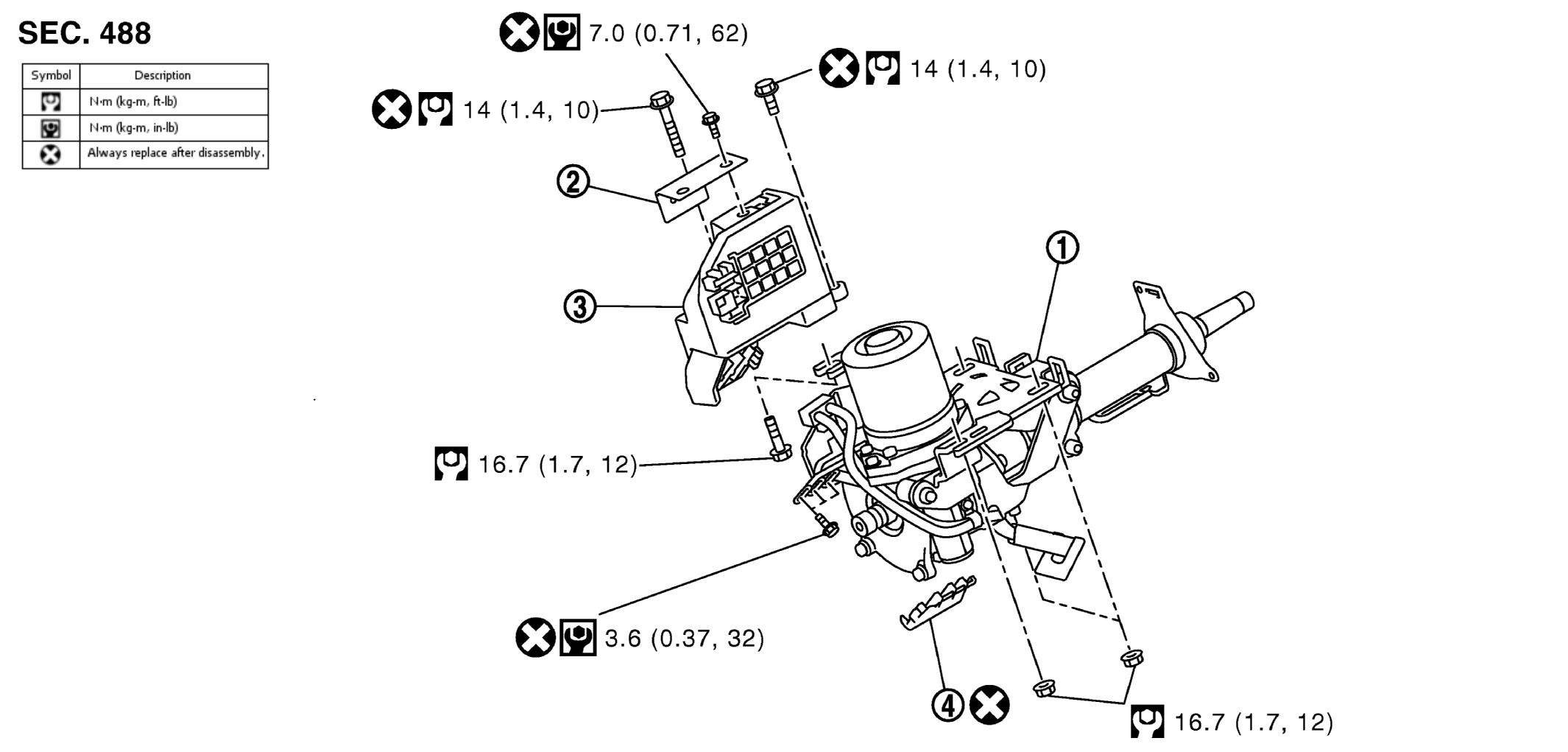

Fig 1: EPS Control Unit With Torque Specifications
GNSJSGIA0167GB-167Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Harness bracket 3. EPS control unit
4. Harness cover
Refer to COMPONENTS for symbols in the figure.
