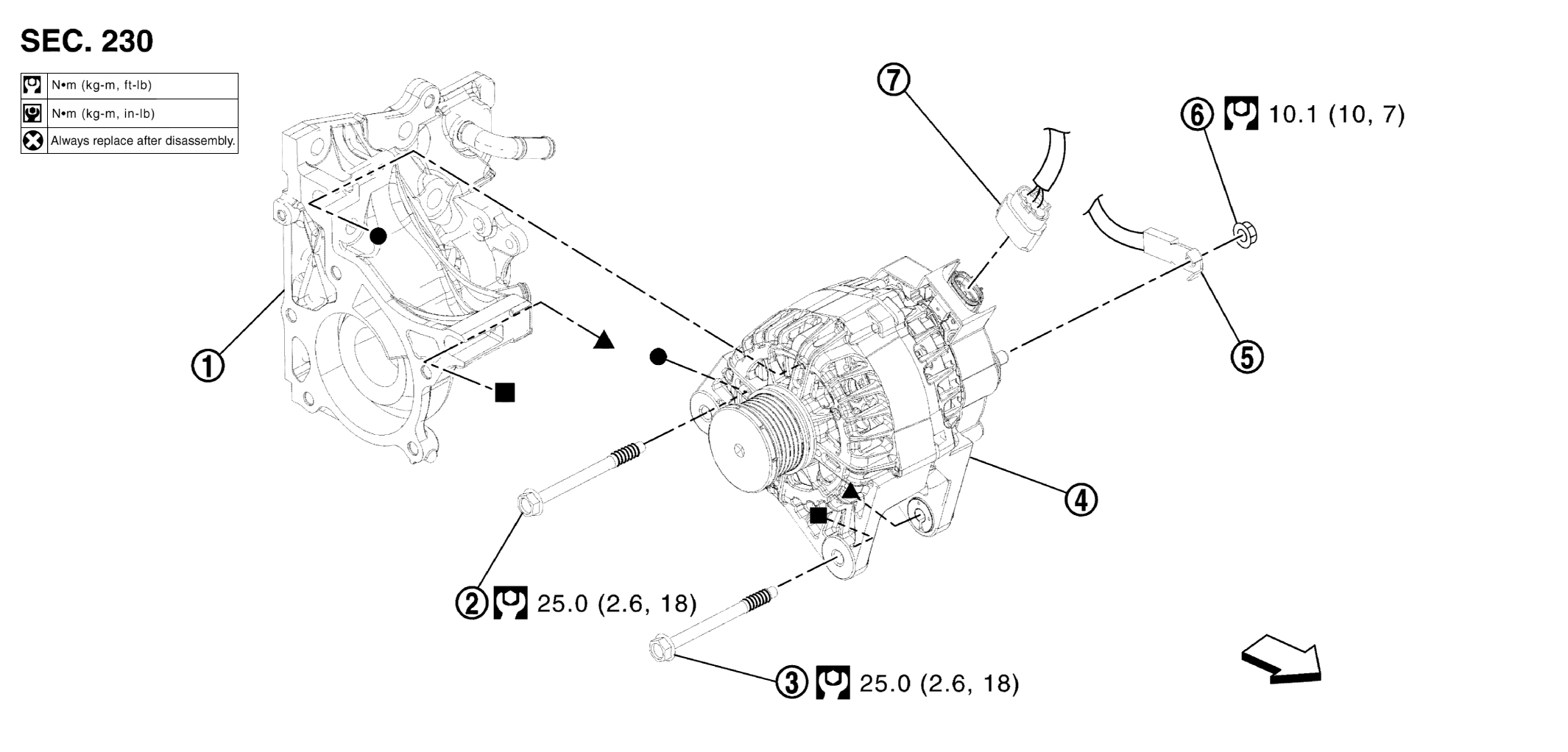

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Thermostat housing |
2. |
Generator bolt (upper) |
3. |
Generator bolt (lower) |
| 4. |
Generator |
5. |
"B" terminal harness |
6. |
"B" terminal nut |
| 7. |
Generator harness connector |
 |
Front |
|
|
