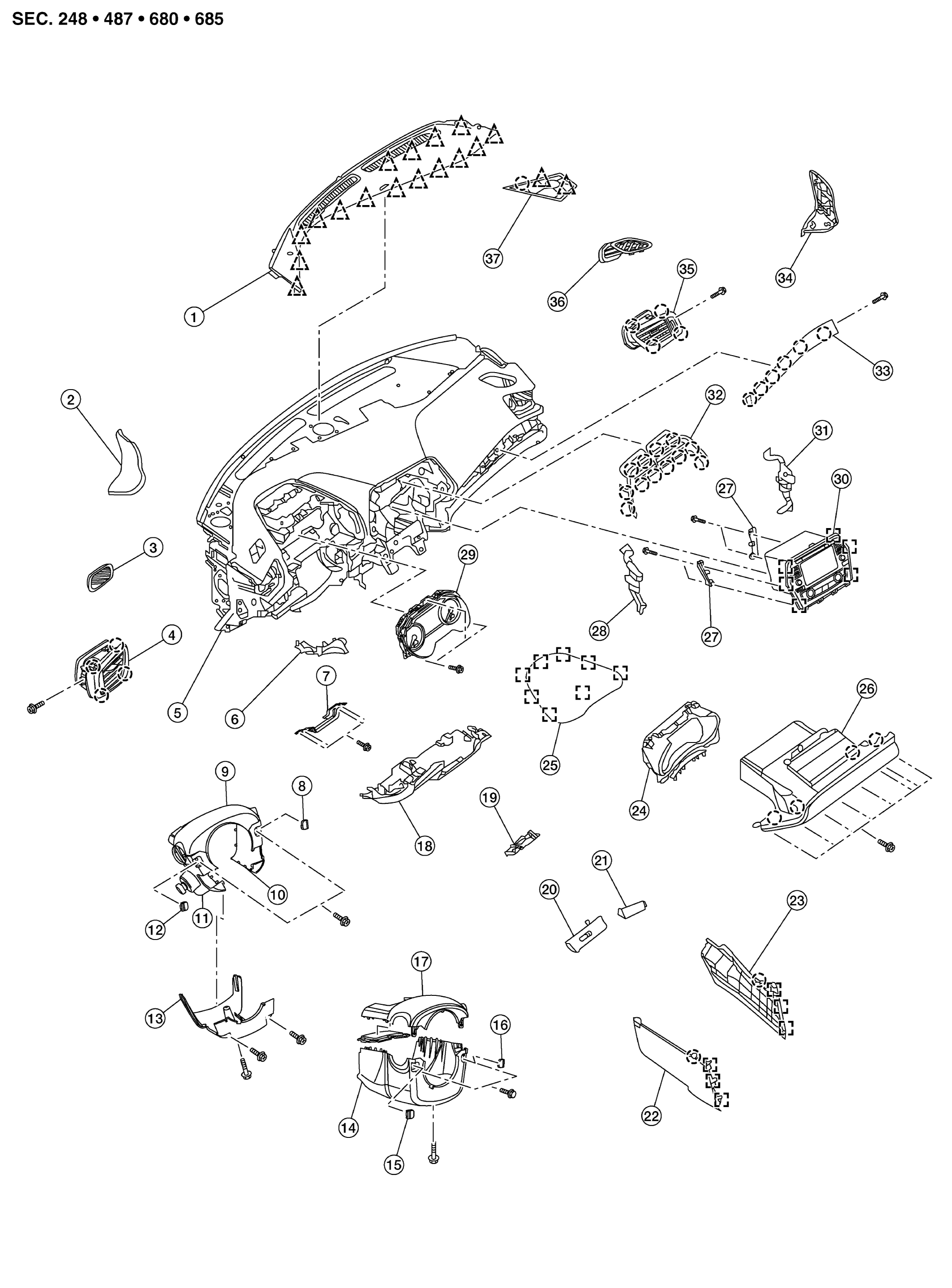

| 1. |
Defroster grille |
2. |
Instrument side finisher (LH) |
3. |
Side defroster grille (LH) |
| 4. |
Side ventilator grille (LH) |
5. |
Instrument panel |
6. |
Instrument finisher D |
| 7. |
Lower knee protector (LH) |
8. |
Steering column mask (RH) (electric steering column) |
9. |
Steering column upper cover (electric steering column) |
| 10. |
Steering column side cover (RH) (electric steering column) |
11. |
Steering column side cover (LH) (electric steering column) |
12. |
Steering column mask (LH) (electric steering column) |
| 13. |
Steering column lower cover (electric steering column) |
14. |
Steering column lower cover (mechanical steering column) |
15. |
Steering column mask (LH) (mechanical steering column) |
| 16. |
Steering column mask (RH) (mechanical steering column) |
17. |
Steering column upper cover (mechanical steering column) |
18. |
Instrument lower panel LH |
| 19. |
Fuse block cover |
20. |
Instrument finisher A |
21. |
Instrument finisher C |
| 22. |
Console lower cover (LH) |
23. |
Console lower cover (RH) |
24. |
Cluster lid A |
| 25. |
Meter cover |
26. |
Glove box assembly |
27. |
AV control unit finisher (LH/RH) |
| 28. |
AV control unit bracket (LH) |
29. |
Combination meter |
30. |
AV control unit |
| 31. |
AV control unit bracket (RH) |
32. |
Center ventilator finisher |
33. |
Instrument finisher B |
| 34. |
Instrument side finisher (RH) |
35. |
Side ventilator grille (RH) |
36. |
Side defroster grille (LH) |
| 37. |
Tweeter speaker grille (RH) |
 |
Pawl |
 |
Metal clip |
 |
Clip |
|
|
|
|
