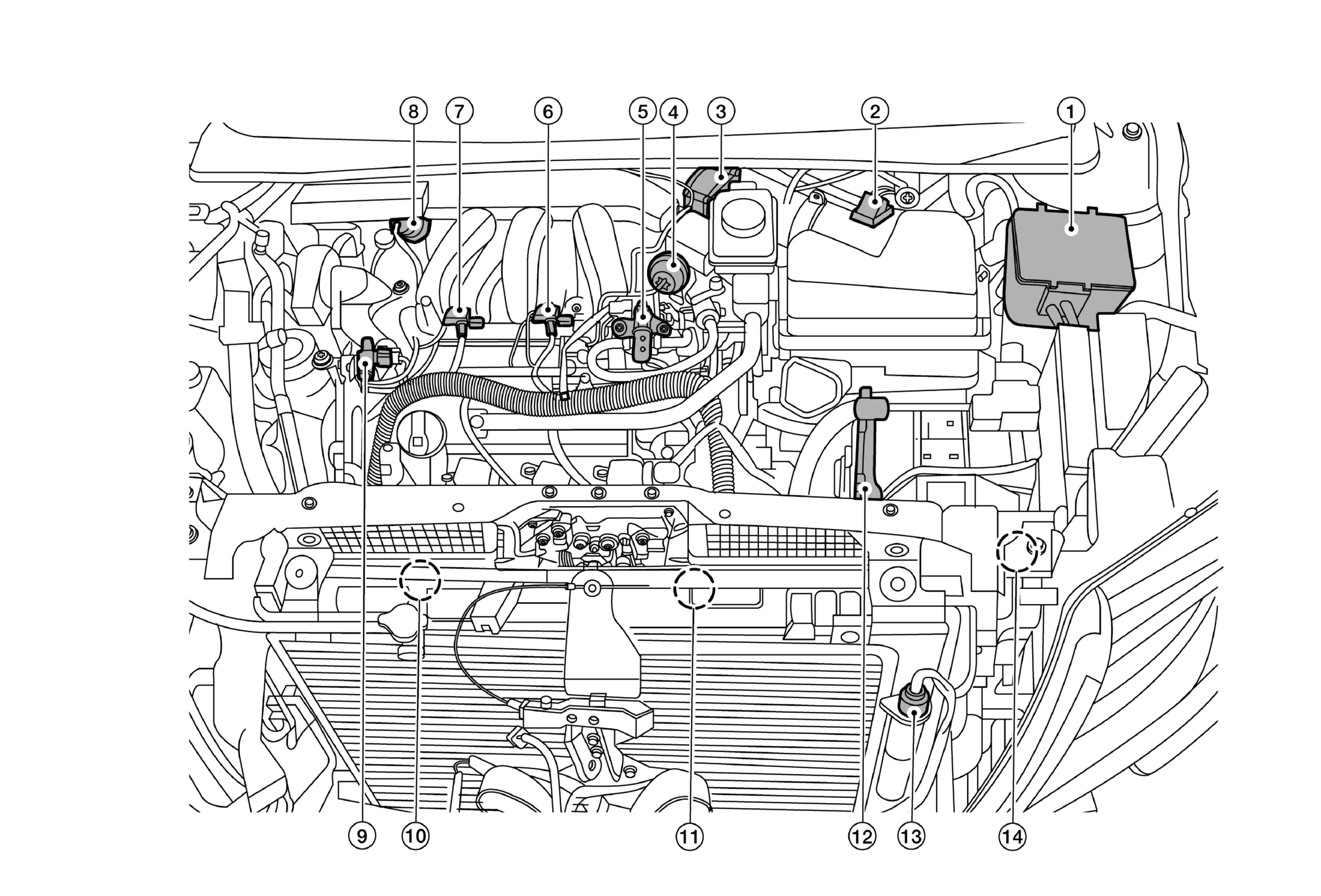

Engine Room
| No. | Component | Function |
|---|---|---|
| IPDM E/R | IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
|
| Mass air flow sensor (with intake air temperature sensor) | MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) | |
| Electric throttle control actuator | ELECTRIC THROTTLE CONTROL ACTUATOR | |
| Power valve actuator 2 | POWER VALVE ACTUATOR 1 AND 2 | |
| EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE | |
| VIAS control solenoid valve 2 | VIAS CONTROL SOLENOID VALVE 1 AND 2 | |
| VIAS control solenoid valve 1 | VIAS CONTROL SOLENOID VALVE 1 AND 2 | |
| Power valve actuator 1 | POWER VALVE ACTUATOR 1 AND 2 | |
| Electronic controlled engine mount control solenoid valve | ELECTRONIC CONTROLLED ENGINE MOUNT | |
| Cooling fan motor-2 | COOLING FAN MOTOR & COOLING FAN CONTROL MODULE | |
| Cooling fan motor-1 | COOLING FAN MOTOR & COOLING FAN CONTROL MODULE | |
| ECM | ECM | |
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR Refer to COMPONENT PARTS LOCATION for detailed installation location. |
|
| Battery current sensor (with battery temperature sensor)* | - |
*: Not used for engine control system.
