System Description
>>
Relay Control System
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

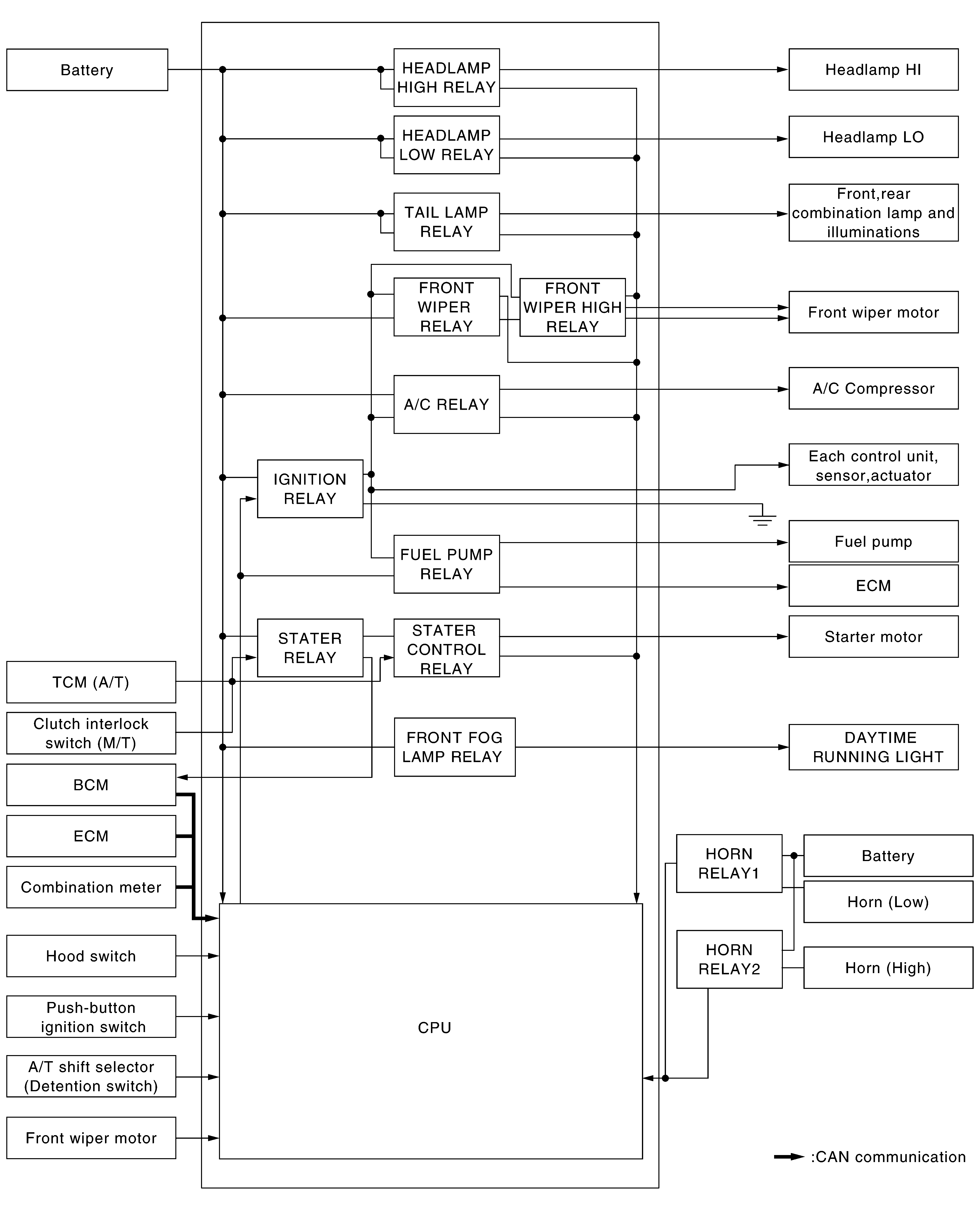

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
