Removal And Installation: Removal

WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove the shift selector finisher. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

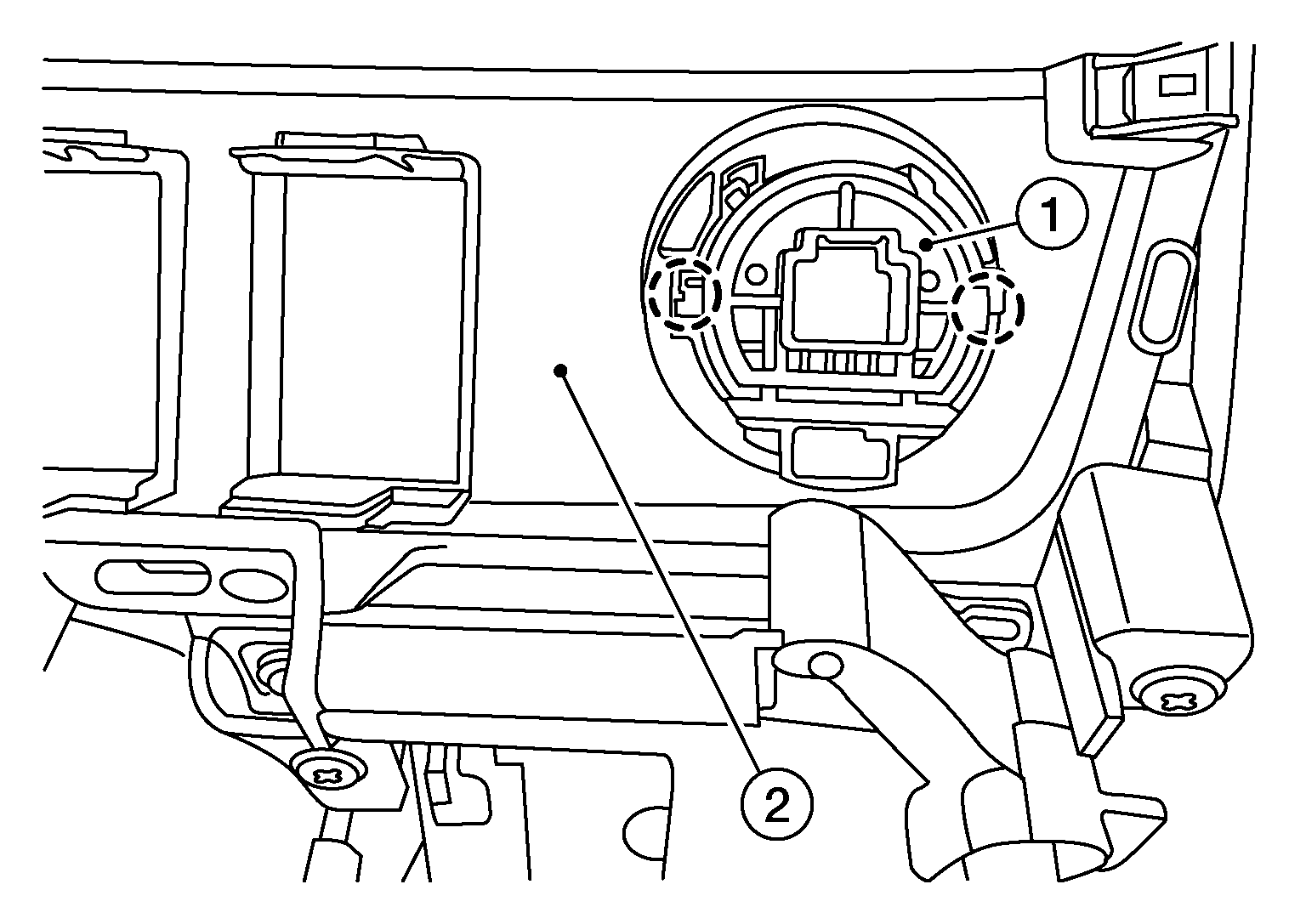

Release the pawl on each side of the push-button ignition switch (1) and remove from the shift selector finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.
