Exploded View With Torque Specifications

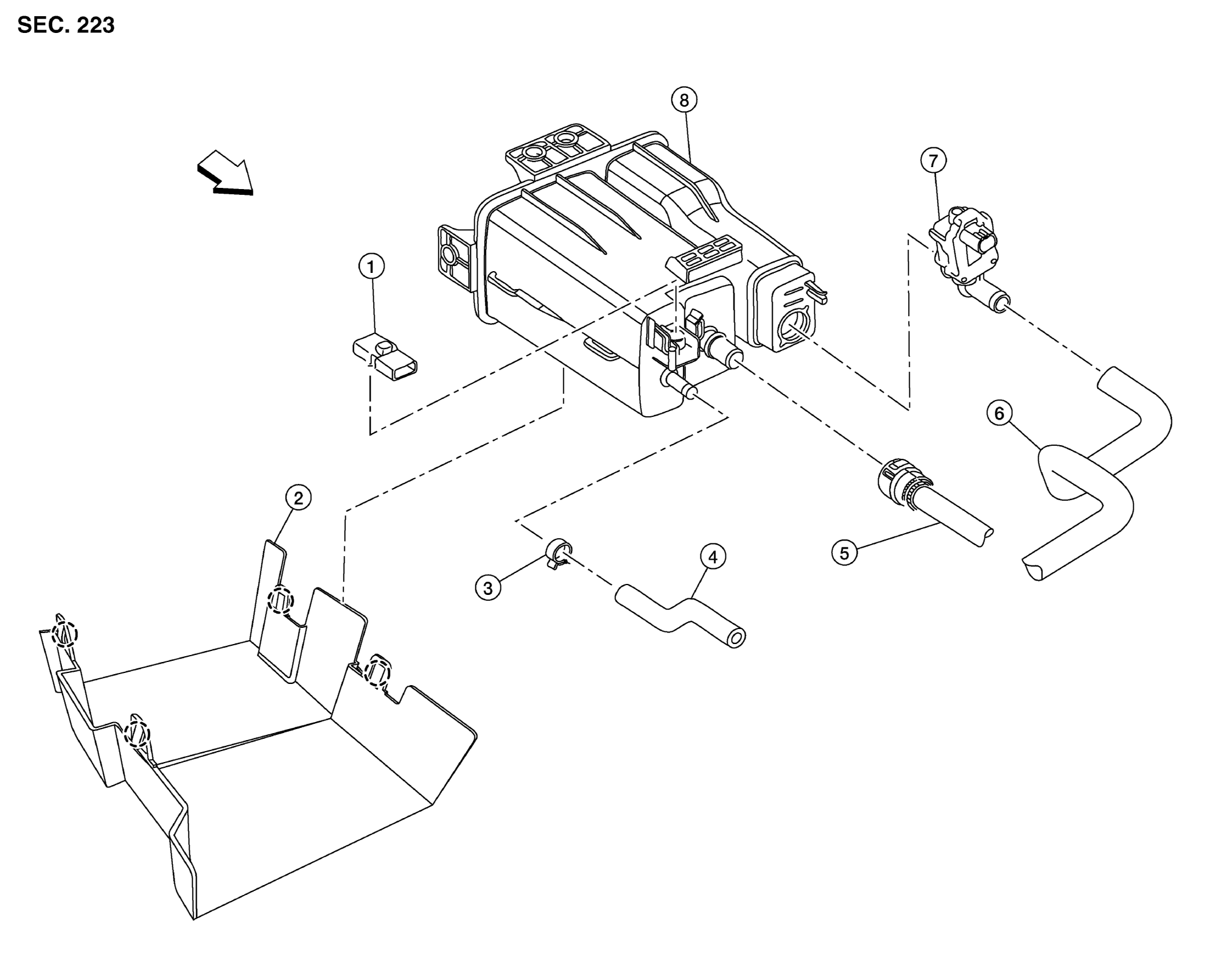

GNSAWBIA3344ZZ-344Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister control pressure sensor 2. EVAP canister protector 3. Hose clamp
4. EVAP canister purge hose 5. EVAP canister vent line 6. EVAP canister vent control valve hose
7. EVAP canister vent control valve 8. EVAP canister MARU-H Pawl
ARROW Front
