Engine Control System: Wiring Diagram

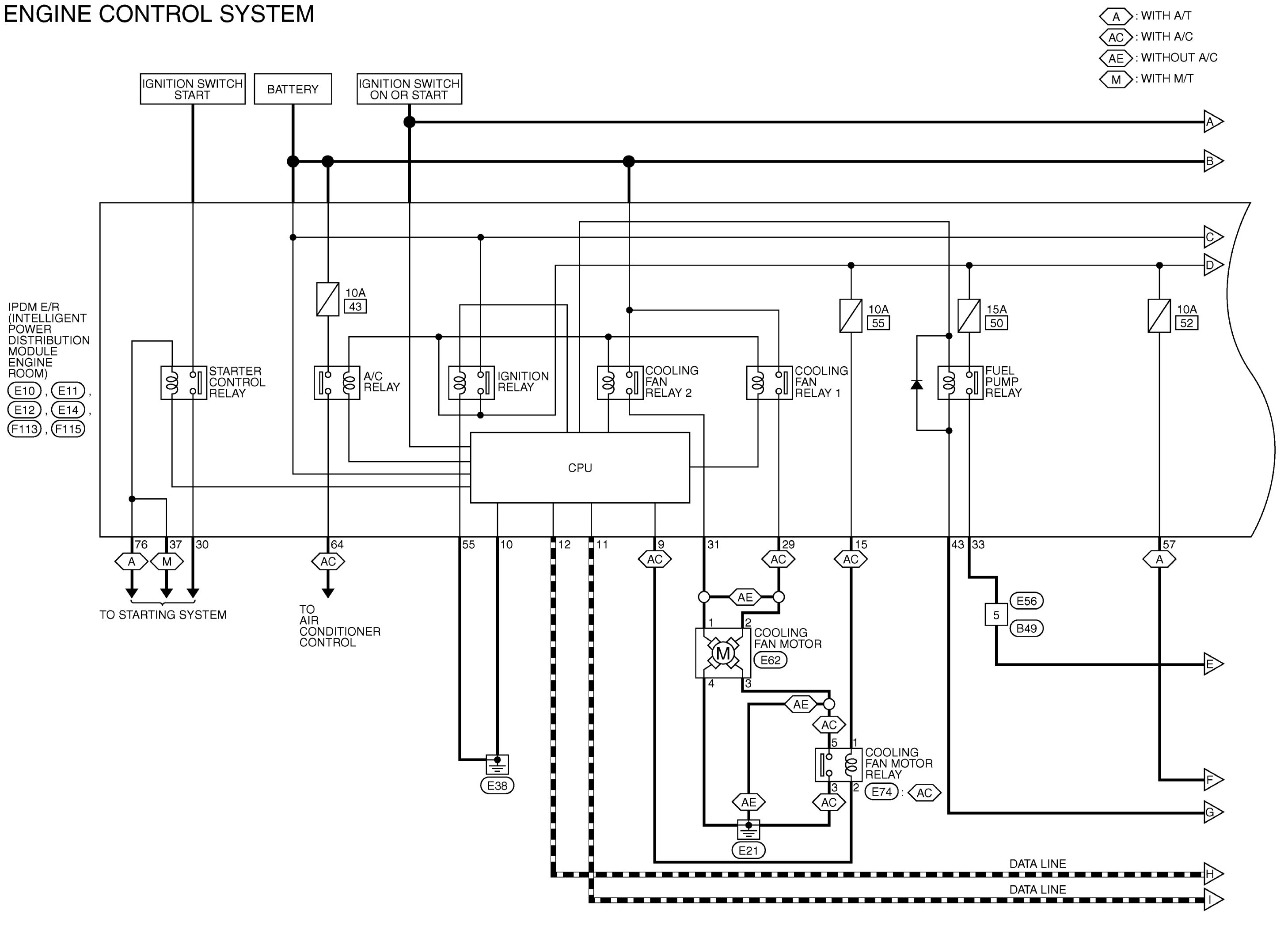

GNSABBWA1263GB-263

Courtesy of NISSAN NORTH AMERICA, INC.

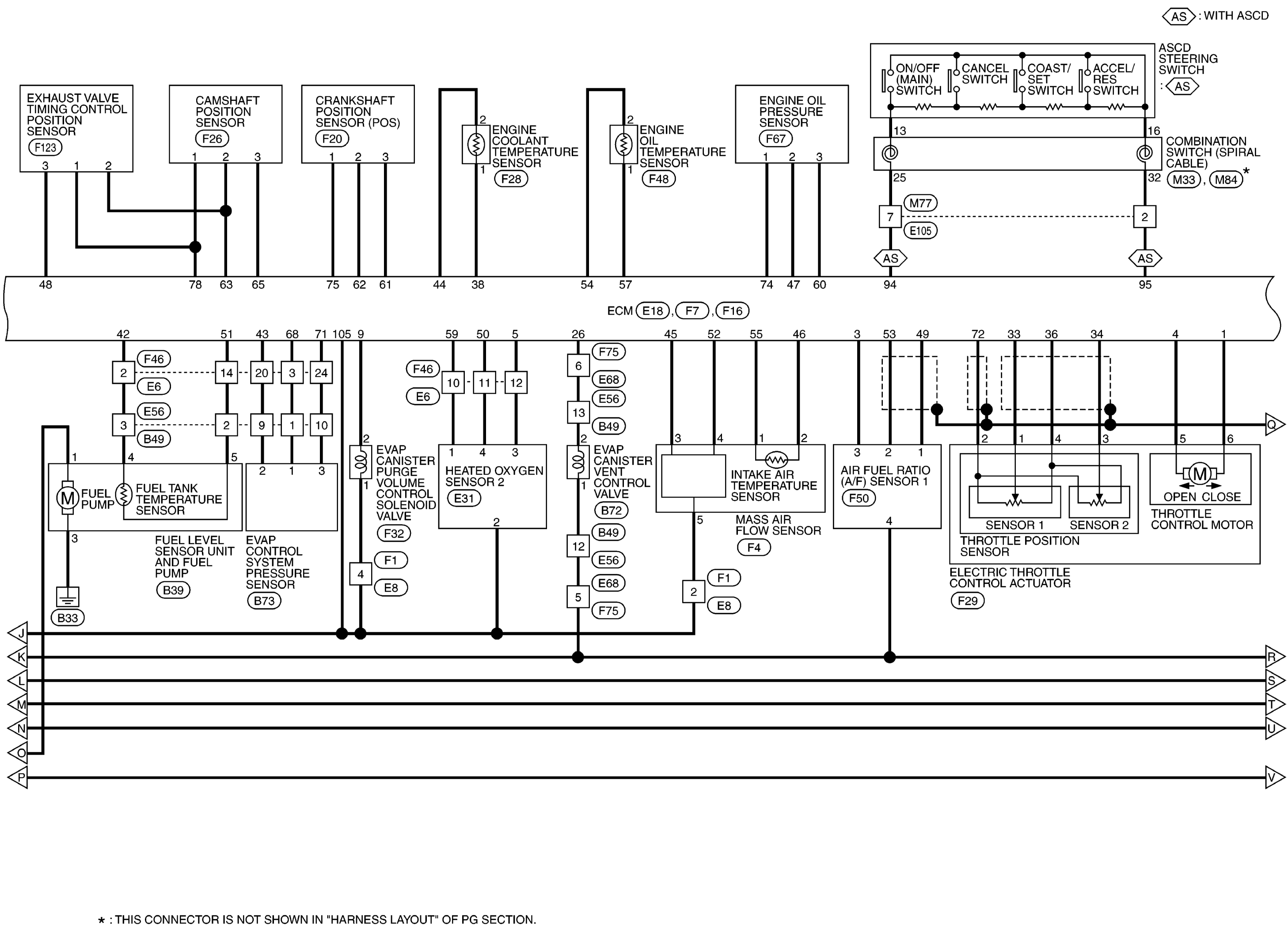

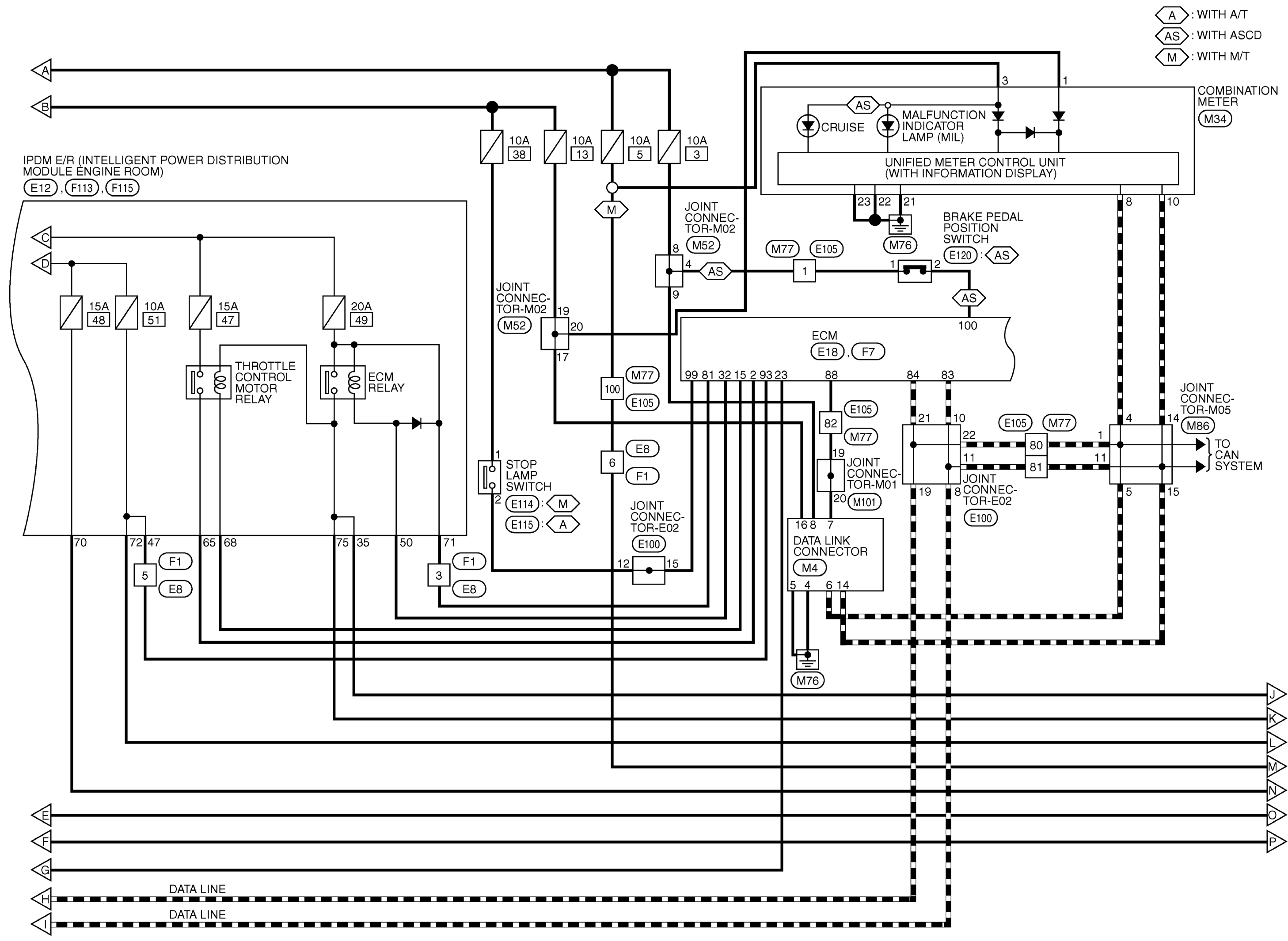

GNSABBWA1662GB-662

Courtesy of NISSAN NORTH AMERICA, INC.

GNSABBWA1265GB-265

Courtesy of NISSAN NORTH AMERICA, INC.

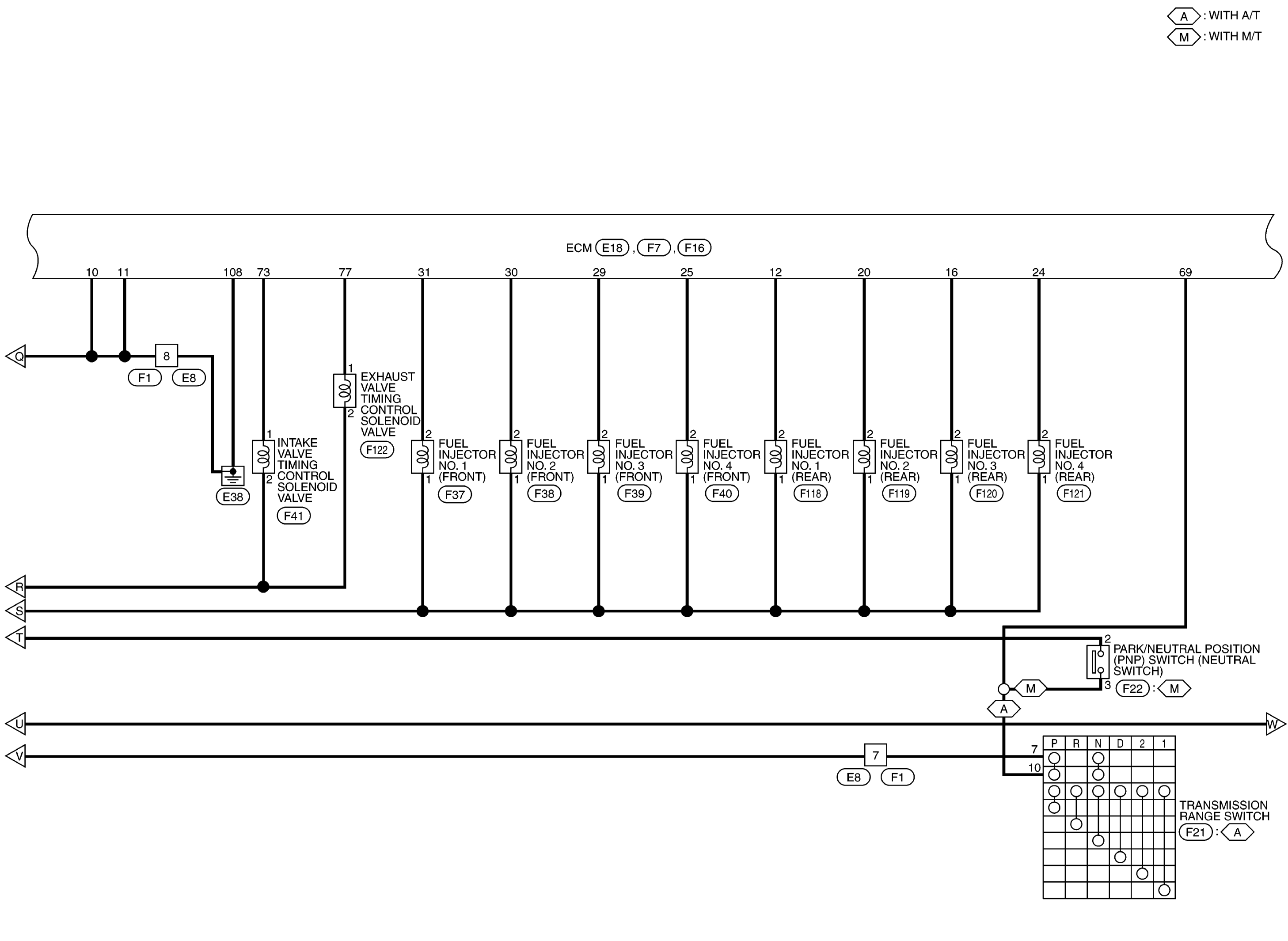

GNSABBWA1266GB-266

Courtesy of NISSAN NORTH AMERICA, INC.

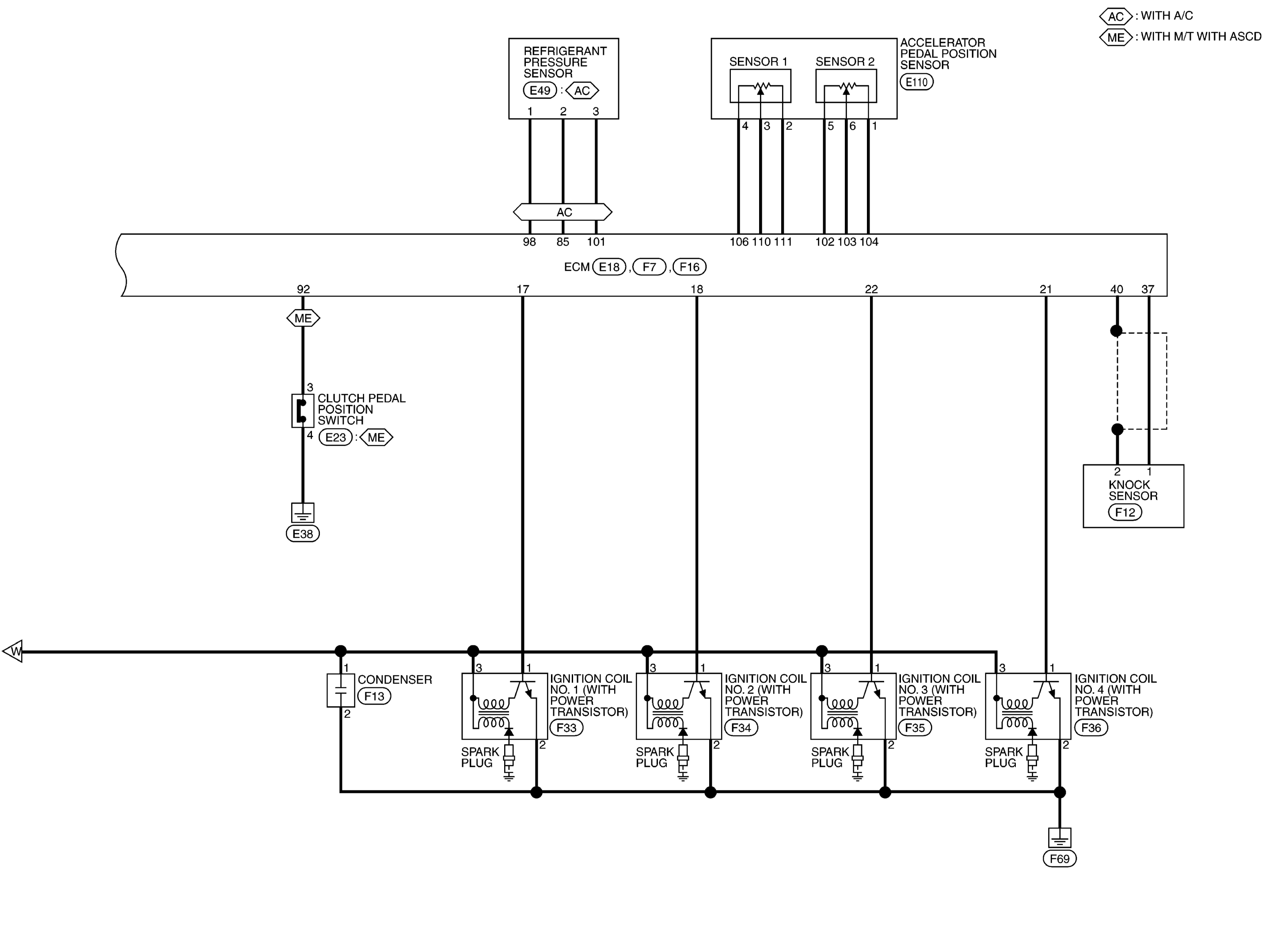

GNSABBWA1267GB-267

Courtesy of NISSAN NORTH AMERICA, INC.

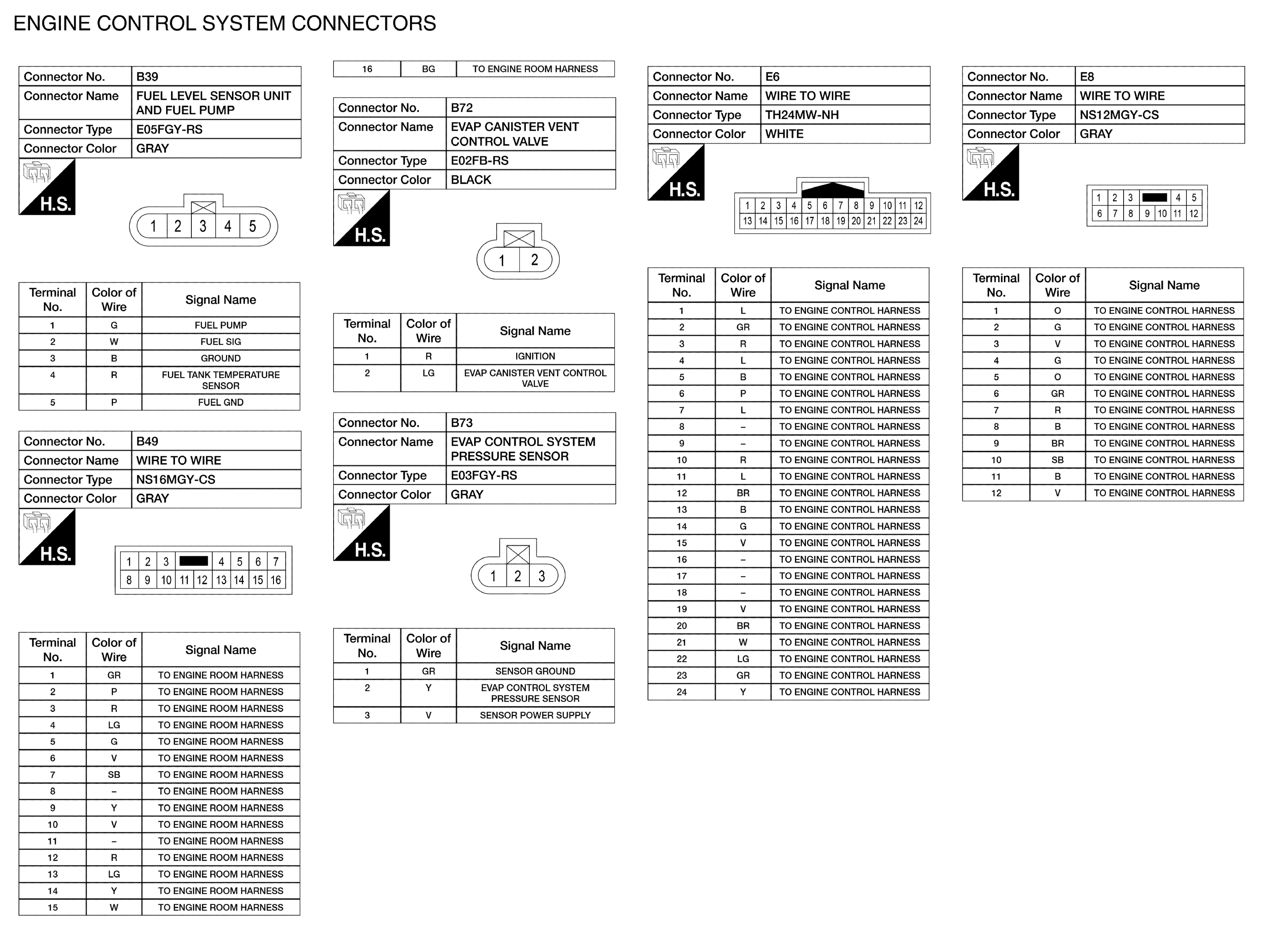

GNSABBIA4060GB-060

Courtesy of NISSAN NORTH AMERICA, INC.

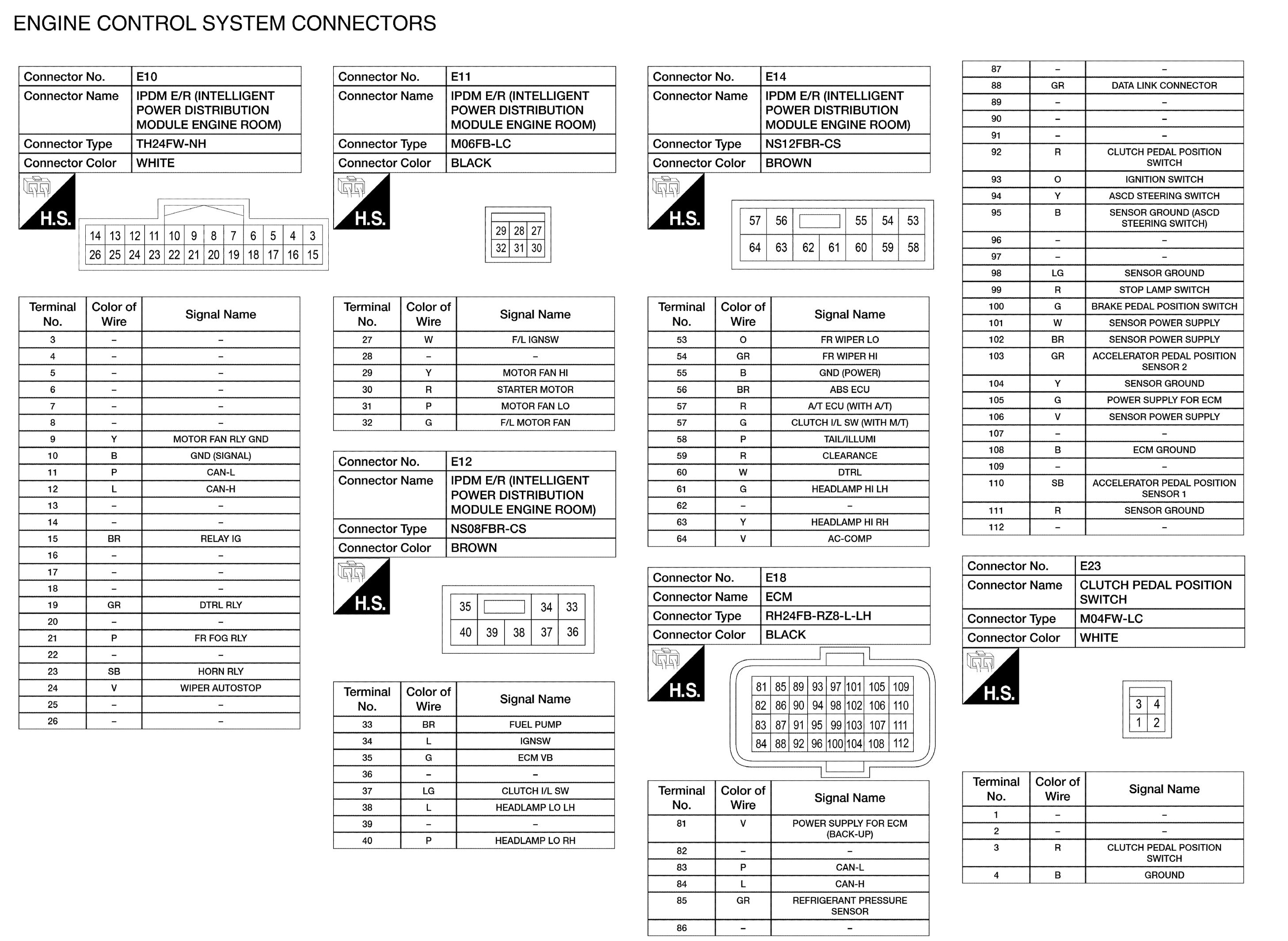

GNSABBIA4061GB-061

Courtesy of NISSAN NORTH AMERICA, INC.

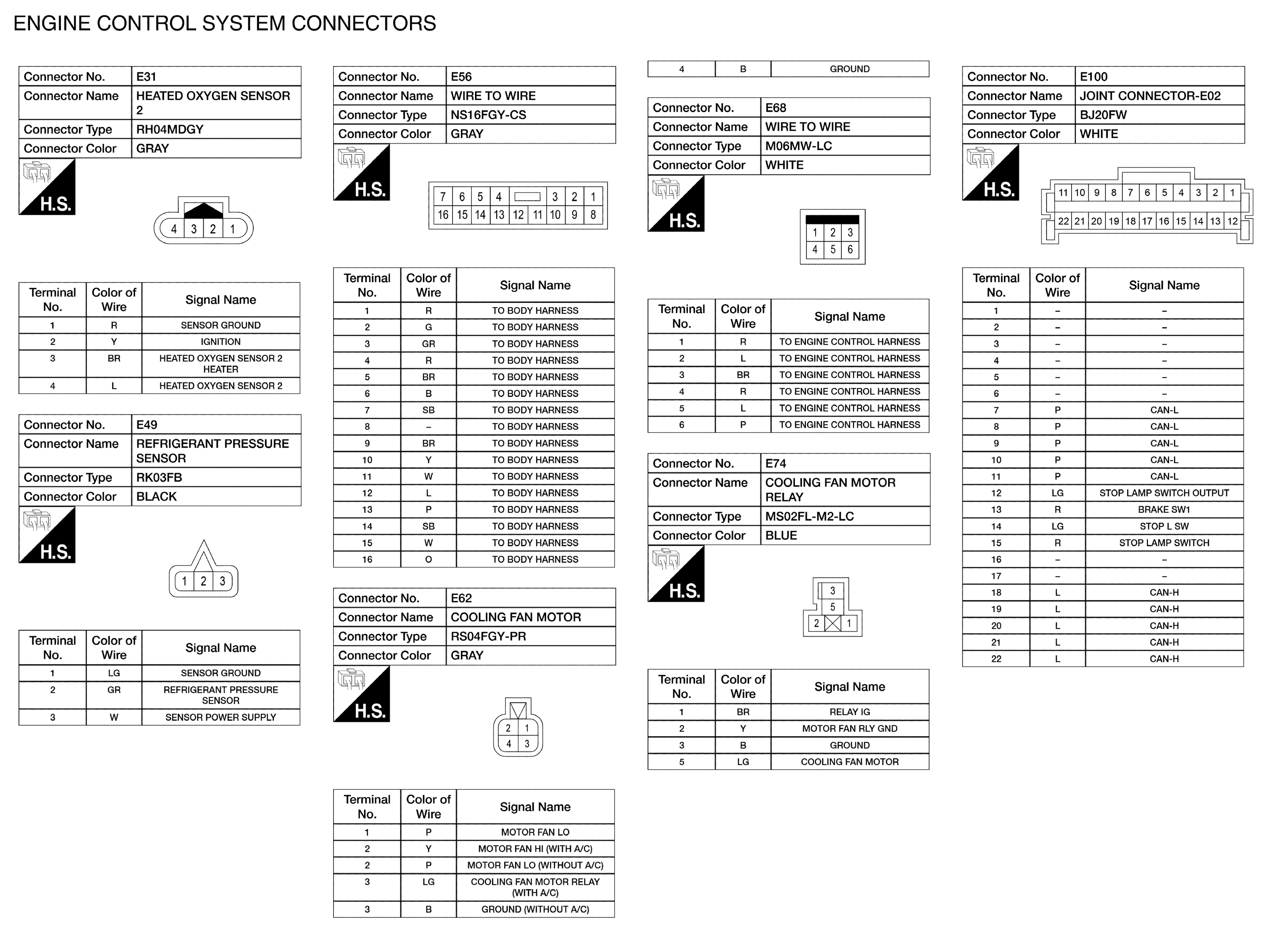

GNSABBIA4062GB-062

Courtesy of NISSAN NORTH AMERICA, INC.

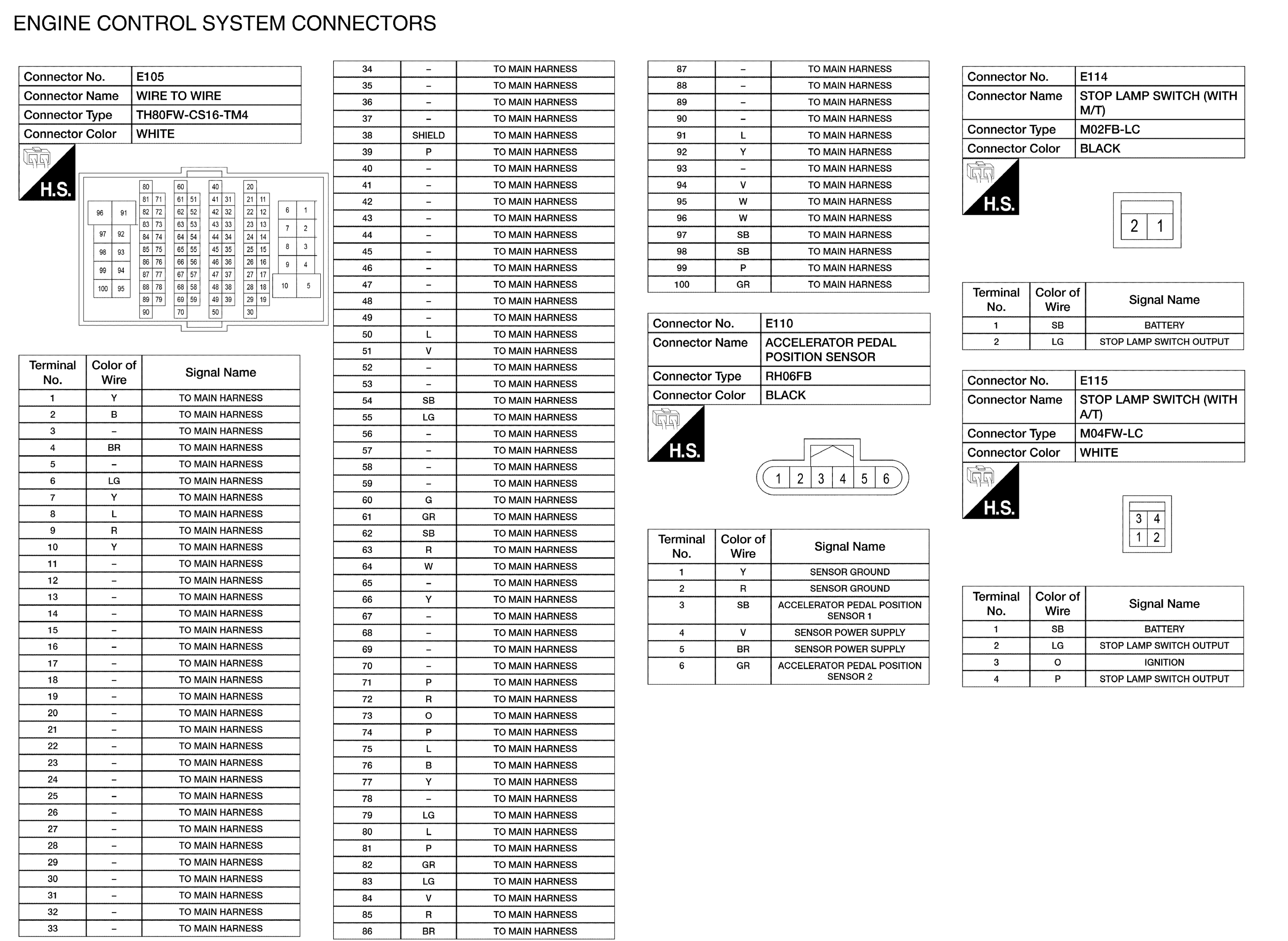

GNSABBIA4063GB-063

Courtesy of NISSAN NORTH AMERICA, INC.

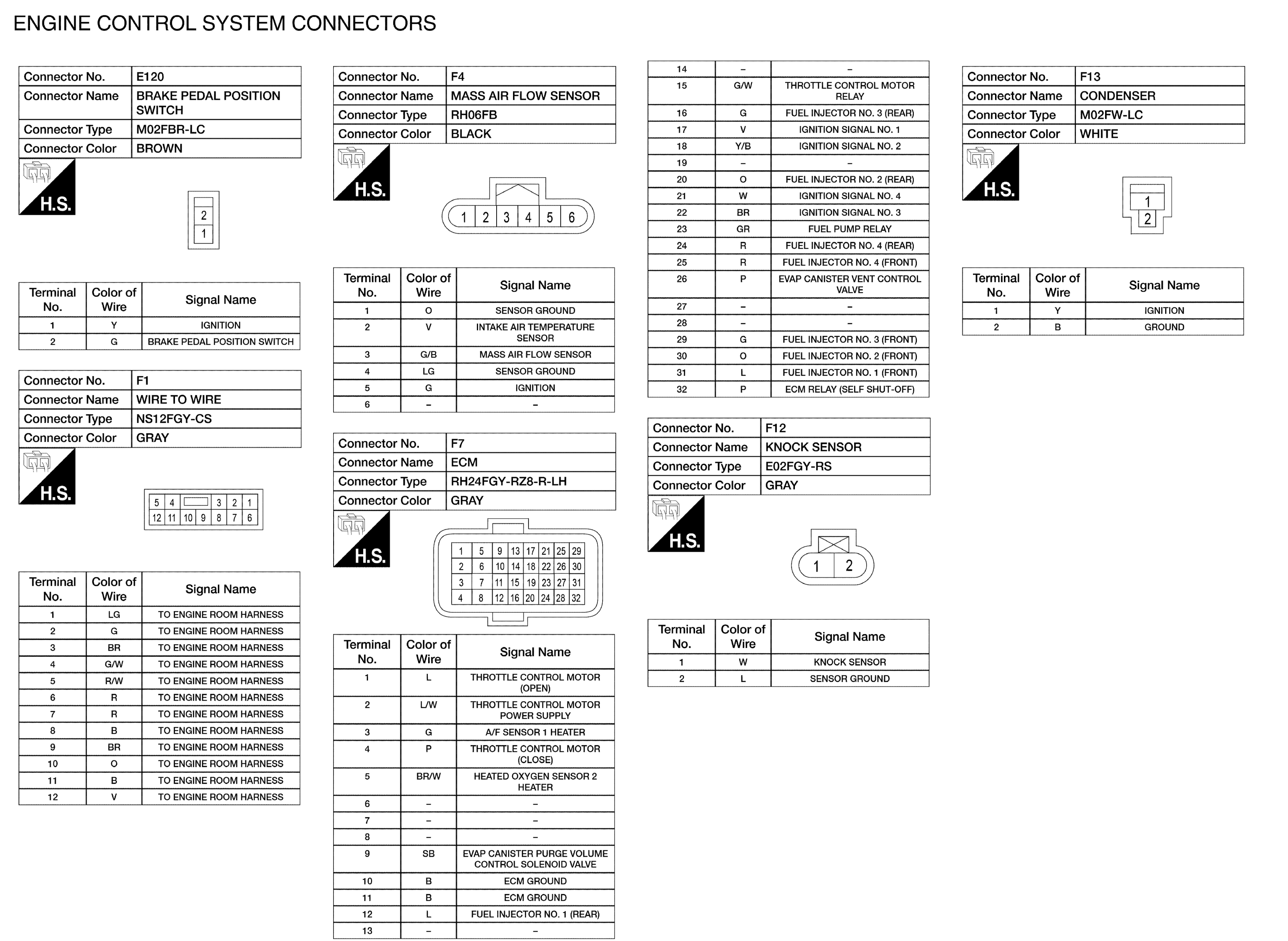

GNSABBIA4064GB-064

Courtesy of NISSAN NORTH AMERICA, INC.

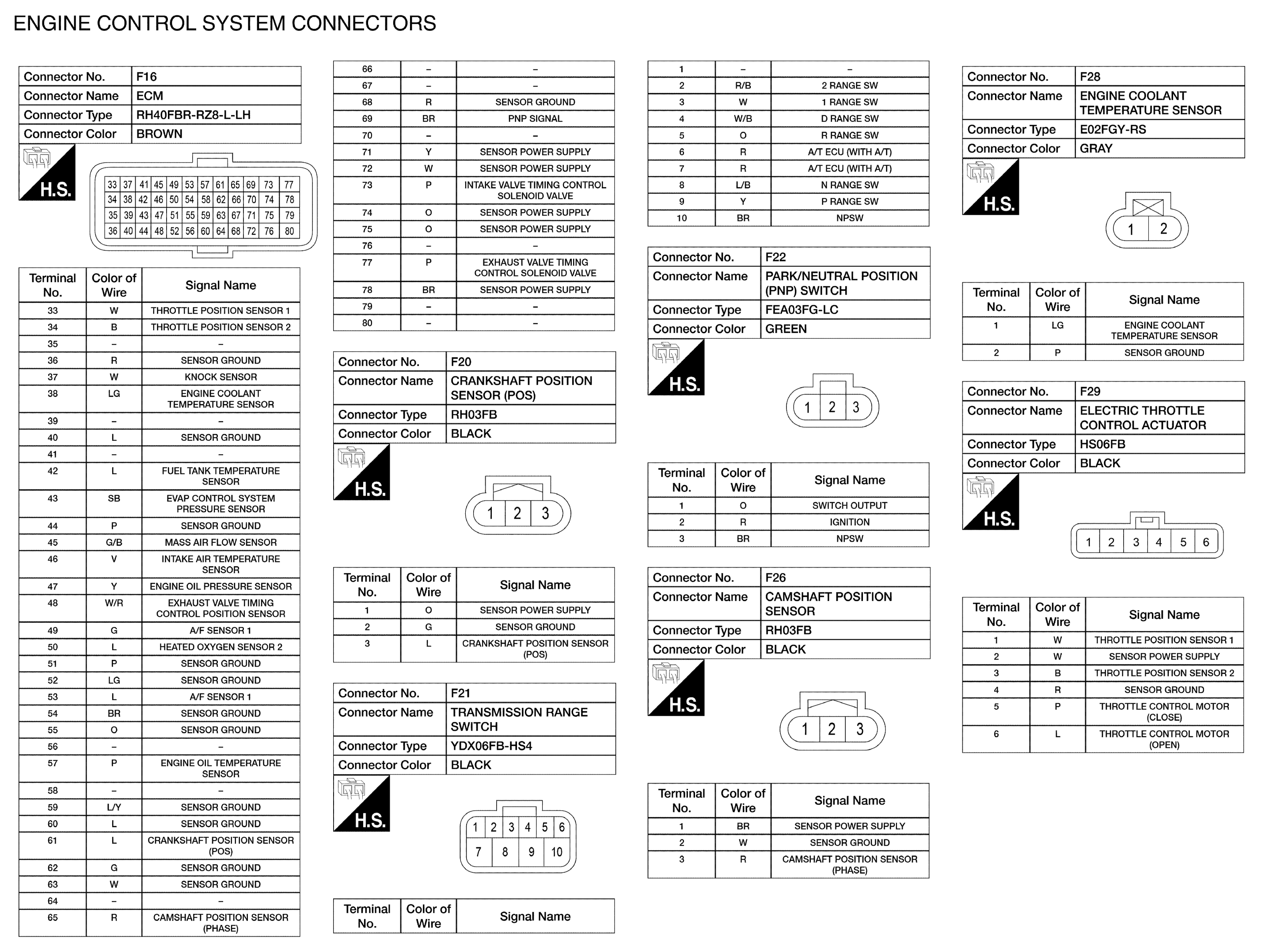

GNSABBIA4065GB-065

Courtesy of NISSAN NORTH AMERICA, INC.

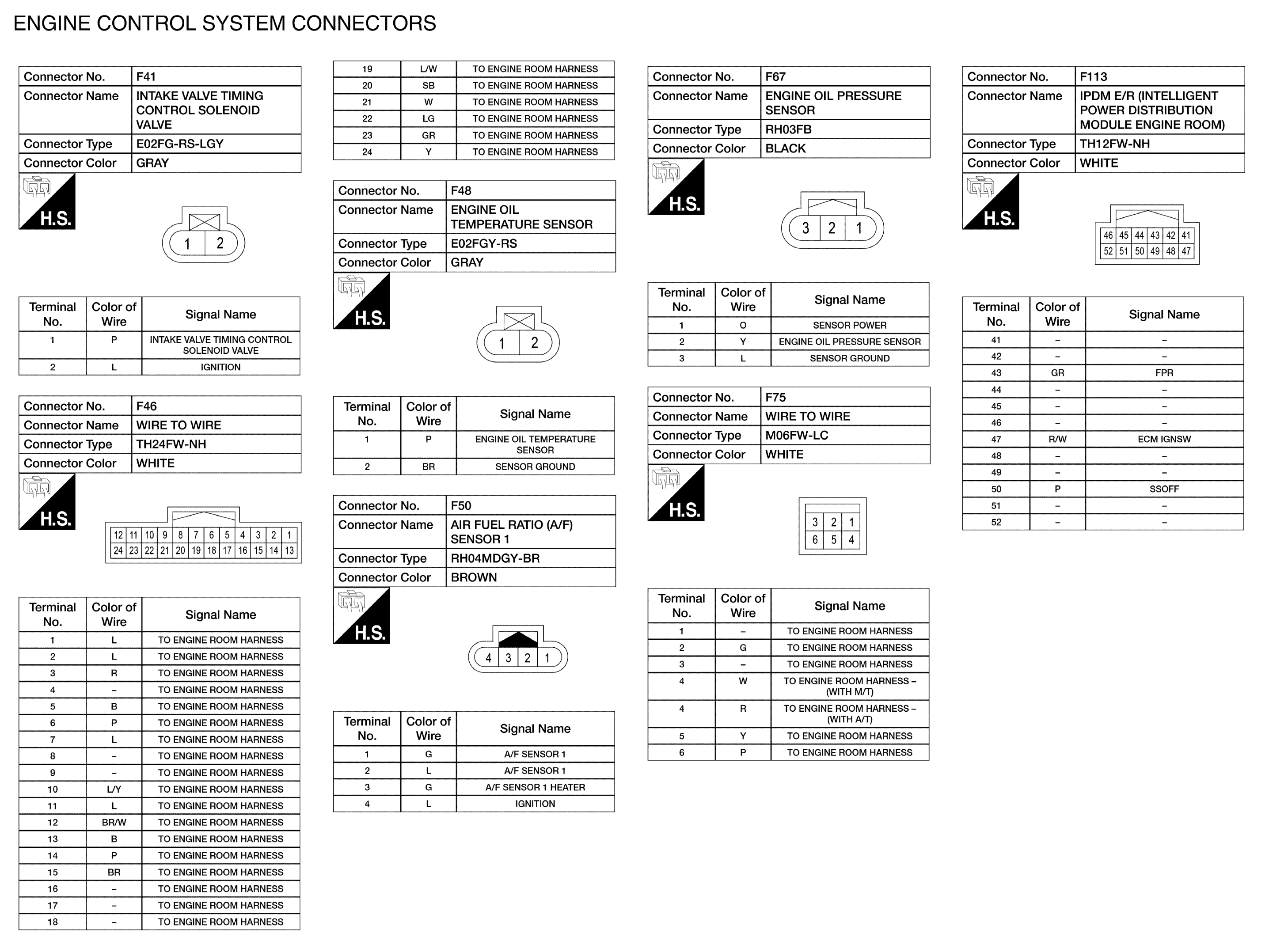

GNSABBIA4066GB-066

Courtesy of NISSAN NORTH AMERICA, INC.

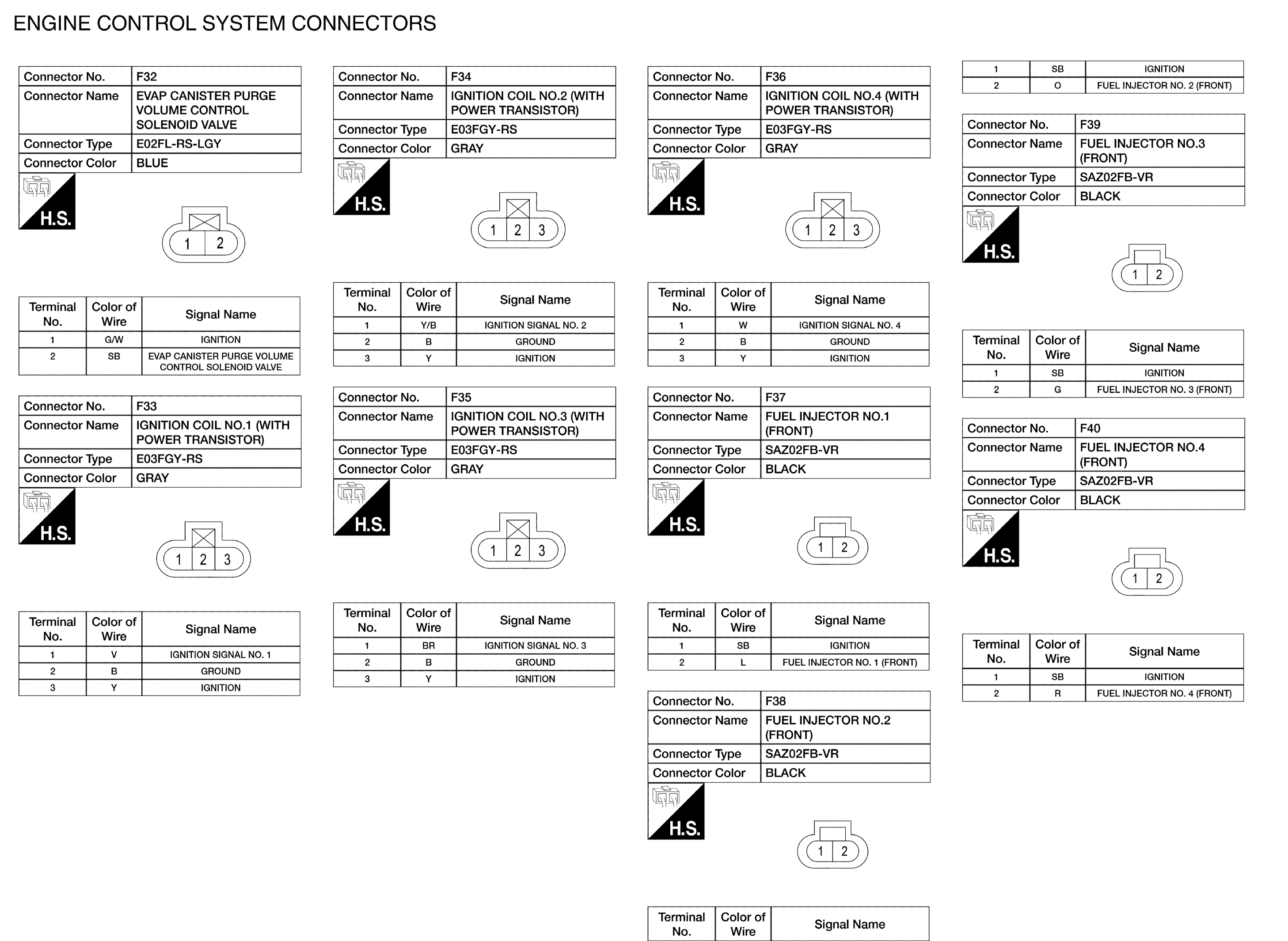

GNSABBIA4067GB-067

Courtesy of NISSAN NORTH AMERICA, INC.

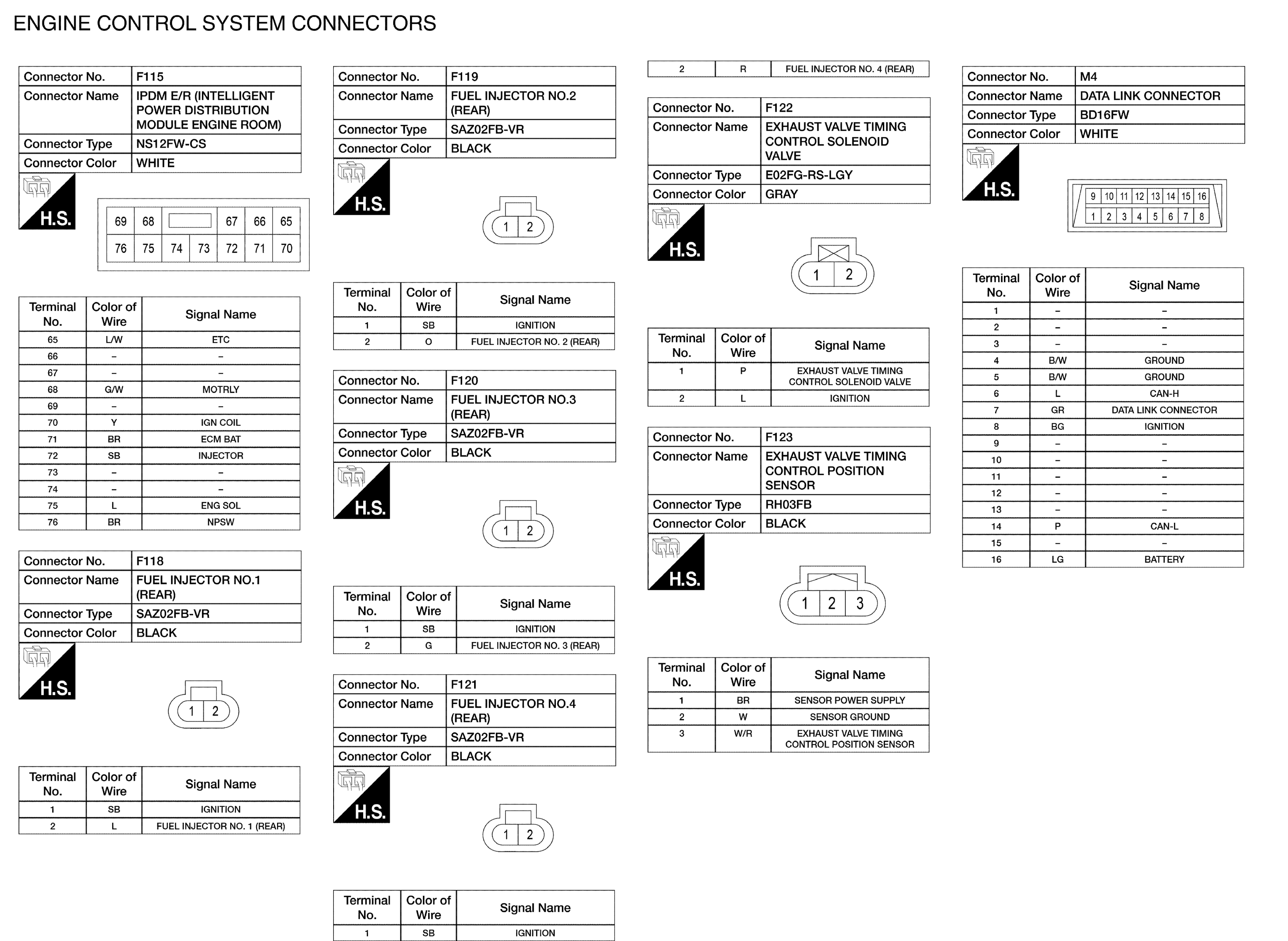

GNSABBIA4068GB-068

Courtesy of NISSAN NORTH AMERICA, INC.

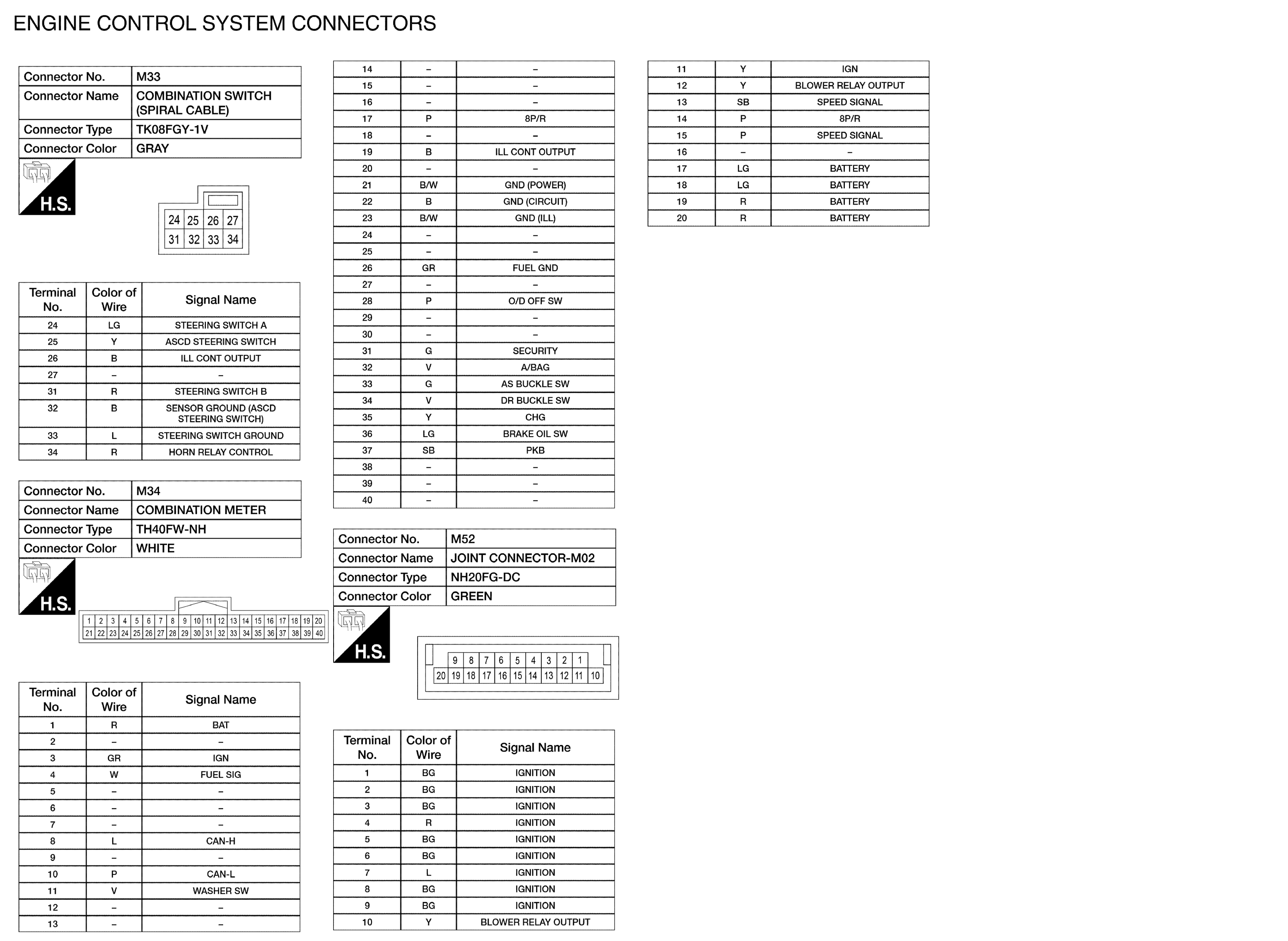

GNSABBIA4069GB-069

Courtesy of NISSAN NORTH AMERICA, INC.

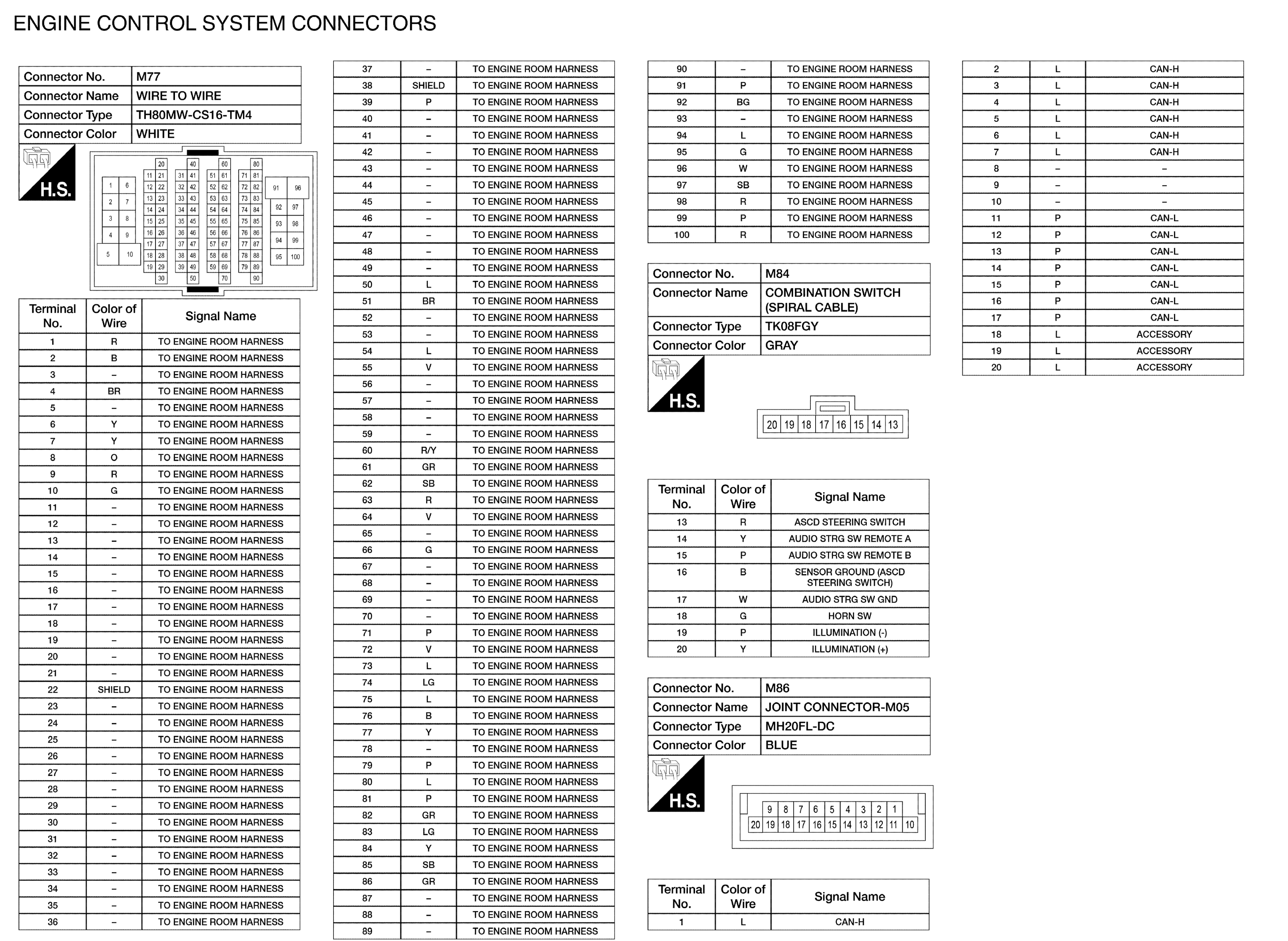

GNSABBIA4070GB-070

Courtesy of NISSAN NORTH AMERICA, INC.

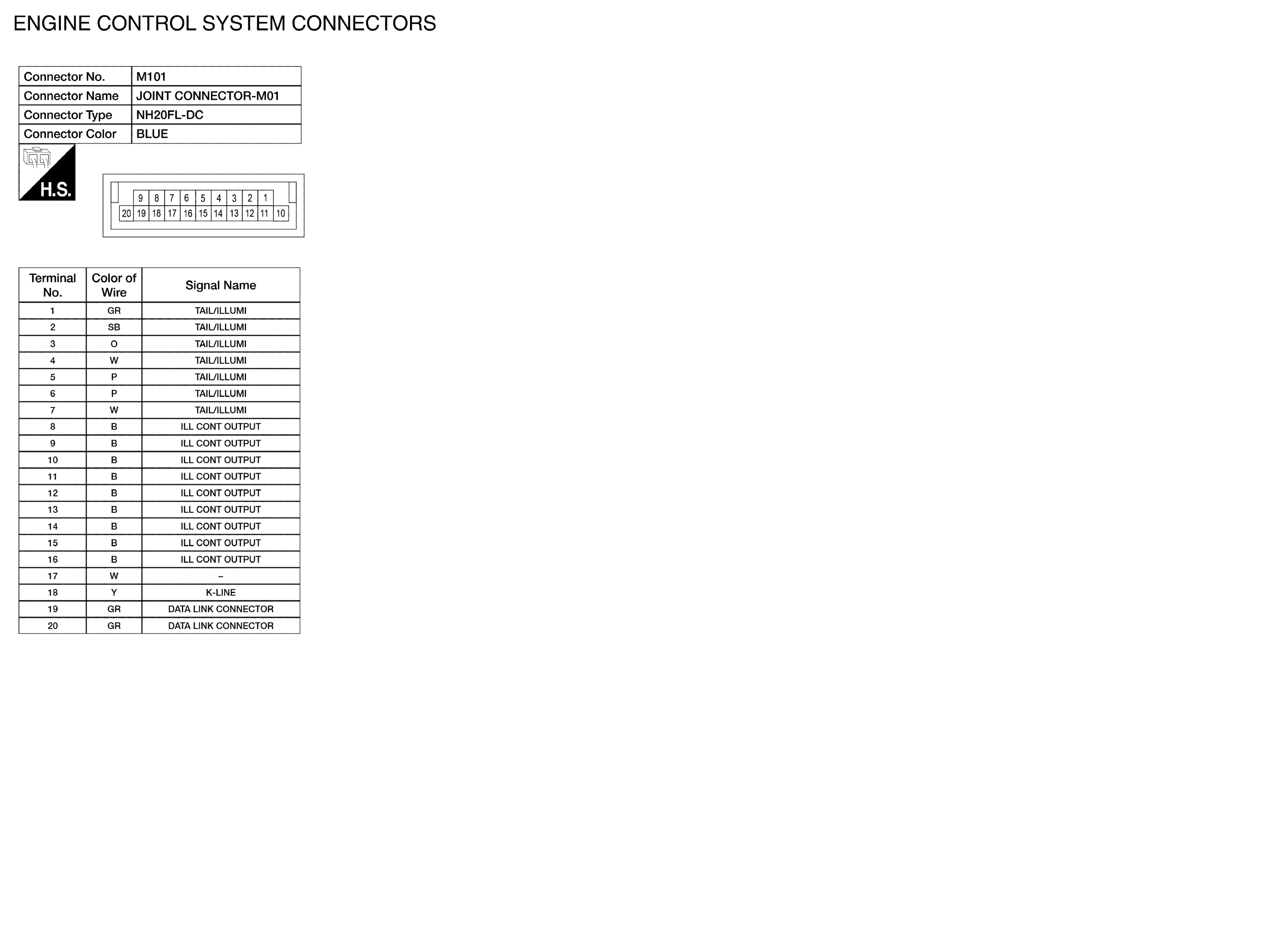

GNSABBIA4071GB-071

Courtesy of NISSAN NORTH AMERICA, INC.
