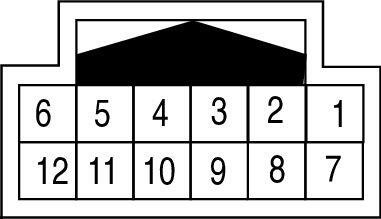

ACCESSORY PREWIRE LH Connector End View (M103)
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
BAT |
| 2 |
- |
- |
| 3 |
L |
ACC |
| 4 |
- |
- |
| 5 |
R |
BAT SAVER |
| 6 |
SB |
DOOR SW |
| 7 |
Y |
THRU SIGNAL 2 |
| 8 |
W |
THRU SIGNAL 1 |
| 9 |
V |
THRU SIGNAL 3 |
| 10 |
P |
ROOM LAMP CONT |
| 11 |
- |
- |
| 12 |
B |
GND |

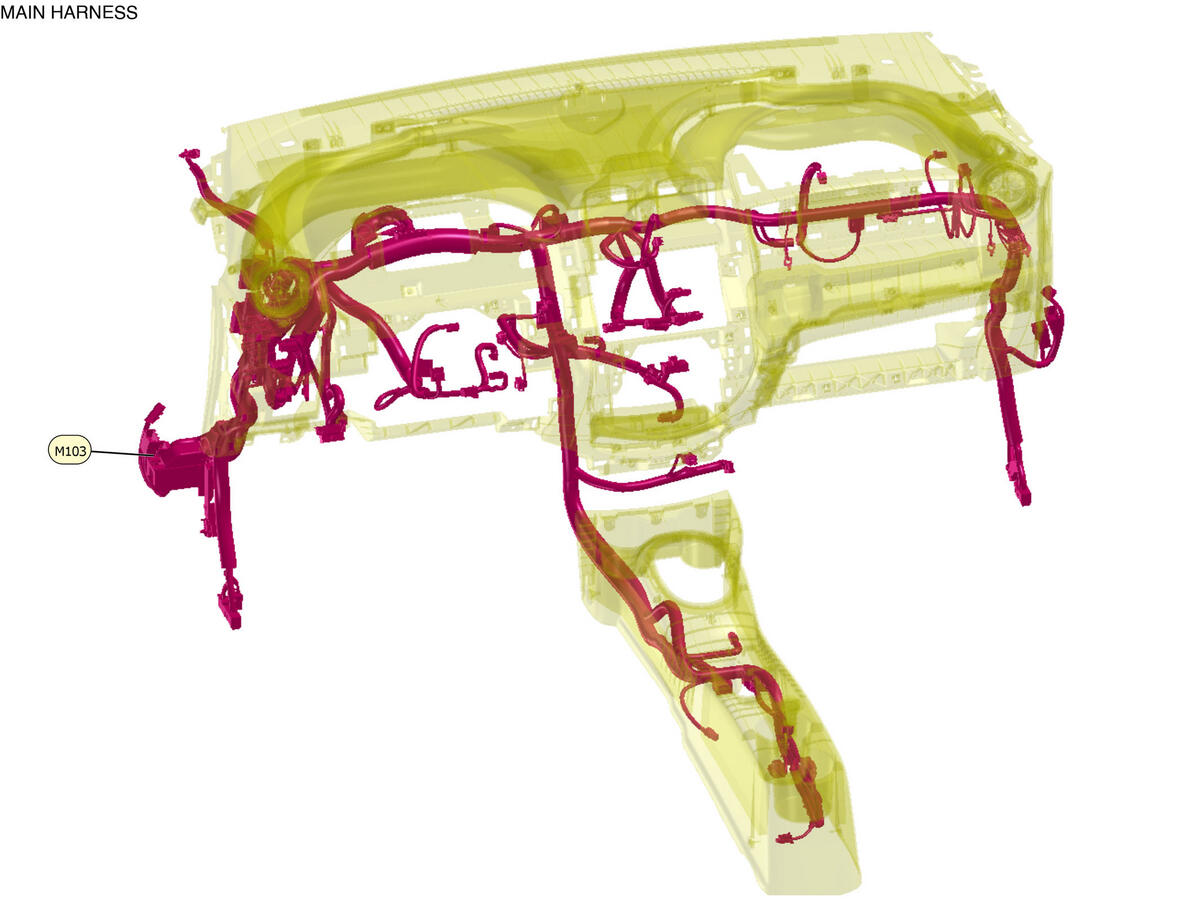

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
TH12MW-NH
