AV CONTROL UNIT Connector End View (M71)

Connector Color: WHITE

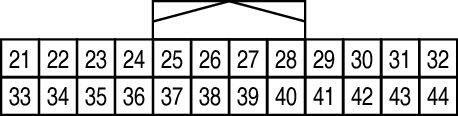

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

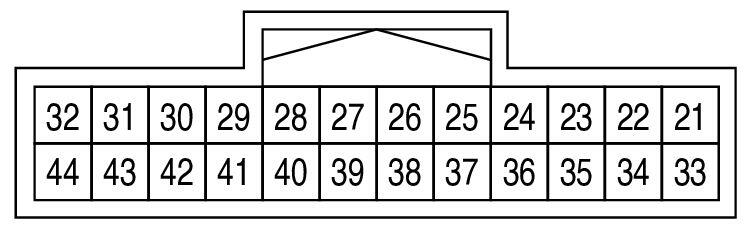

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
21	-	-
22	-	-
23	R	MR OUTPUT
24	-	-
25	-	-
26	-	-
27	-	-
28	Y	REVERSE
29	-	-
30	Y	AUX L
31	G	AUX GND
32	L	AUX R
33	B	CAMERA GND
34	L	CAMERA ON
35	SHIELD	CAMERA SHIELD
36	Y	CAMERA + (WITHOUT AROUND VIEW MONITOR)
36	G	CAMERA + (WITH AROUND VIEW MONITOR)
37	BG	IGNITION
38	-	-
39	-	-
40	-	-
41	SHIELD	MIC GND
42	L	MIC VCC
43	P	MIC SIGNAL
44	B	ILL (-)

Circuit Diagram

Fig 3: ILLUMINATION

Courtesy of NISSAN NORTH AMERICA, INC.

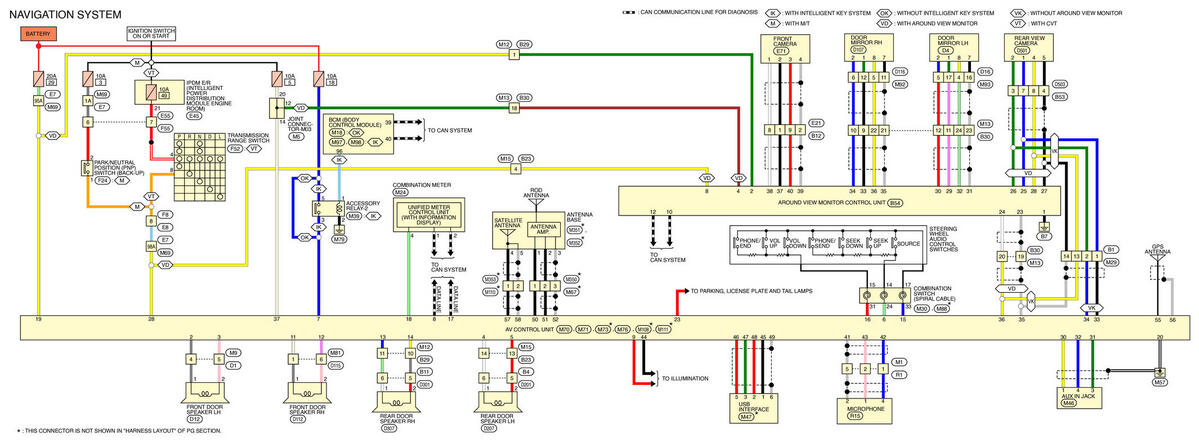

Fig 4: NAVIGATION SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

Fig 5: MAIN HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

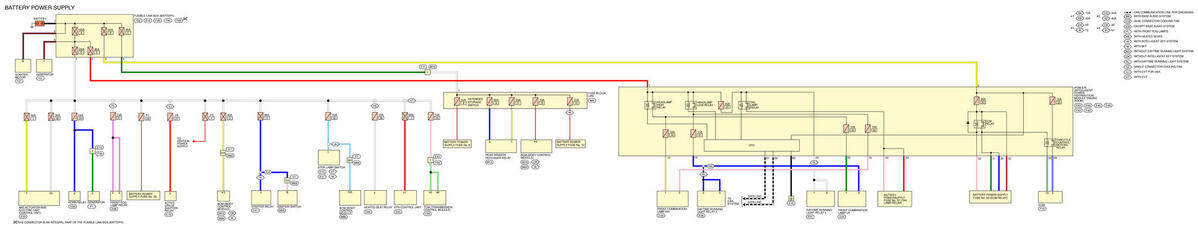

Fig 6: BATTERY POWER SUPPLY

Courtesy of NISSAN NORTH AMERICA, INC.

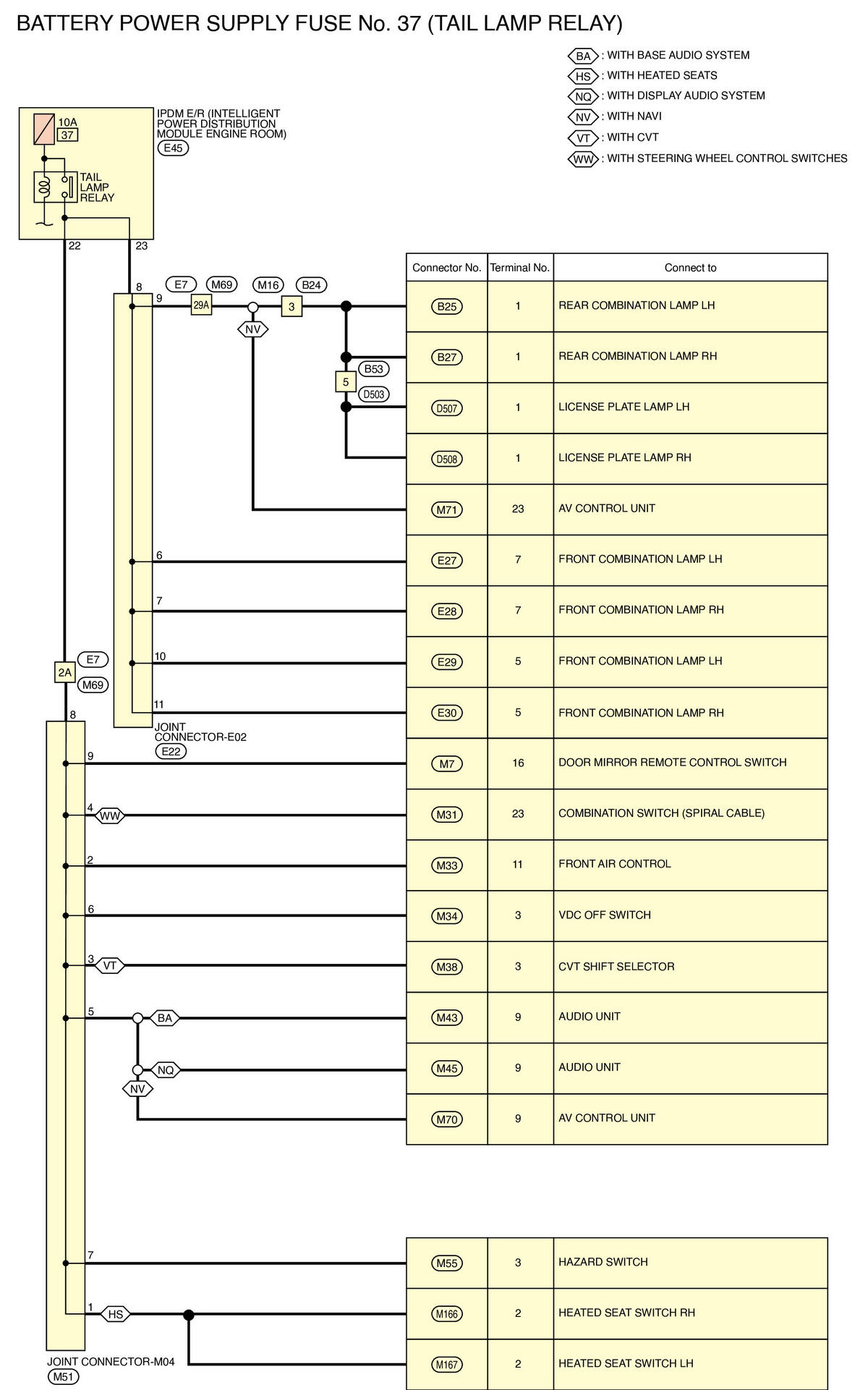

Fig 7: BATTERY POWER SUPPLY FUSE No. 37 (TAIL LAMP RELAY)

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: TH24FW-NH
