Exploded View With Torque Specifications

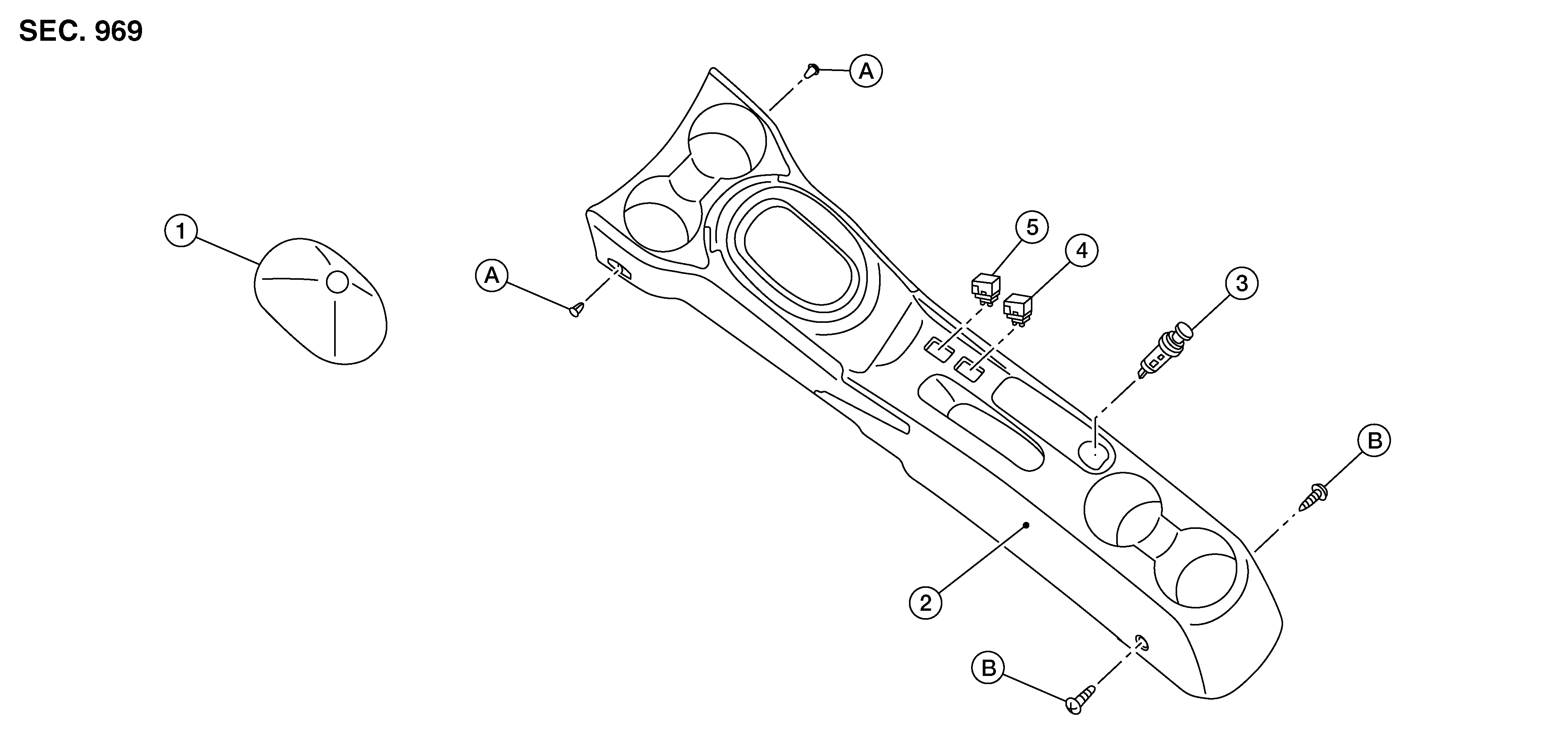

GNSALJIA2158ZZ-158Courtesy of NISSAN NORTH AMERICA, INC.
1. Shift selector boot (5MT: RS5F91R) 2. Center console assembly 3. Power socket (if equipped)
4. Heated seat switch (RH) (if equipped) 5. Heated seat switch (LH) (if equipped) A. Clip
B. Screw
