DTC Detection Logic

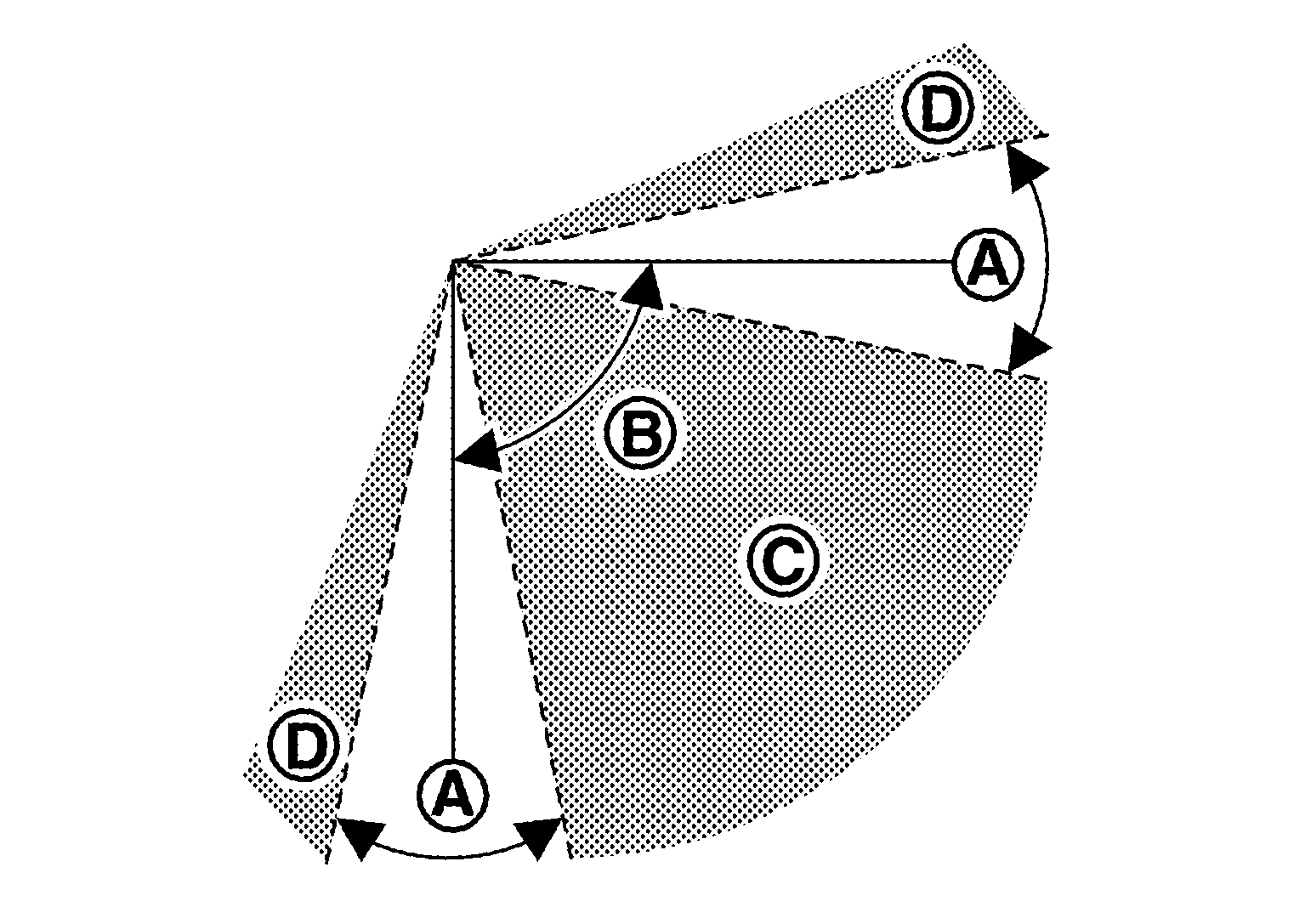

Active grille shutter normally stops within zone
which is defined by zone
(90°+-20°).
If the active grille shutter stops within zone
stuck error is detected, and if the active grille shutter stops at position beyond zone
overrun error is detected.
NOTE:
If DTC P059F displayed with DTC UXXXX, P0116, P0117, P0118, P0125, P0196, P0197, P0198, P0500, P0607, P159F, or P1720 first perform the trouble diagnosis for DTC UXXXX, P0116, P0117, P0118, P0125, P0196, P0197, P0198, P0500, P0607, P159F, or P1720. Refer to DTC INDEX .
| DTC No. | CONSULT screen terms (Trouble diagnosis content) |
DTC detecting condition | Possible cause | |
|---|---|---|---|---|
| P059F | ACTIVE GRILLE AIR SHUTTER A (Active grille air shutter A performance/stuck off) |
Detects the malfunction of initial position learning or operational malfunctions for specified times. |
|
|
