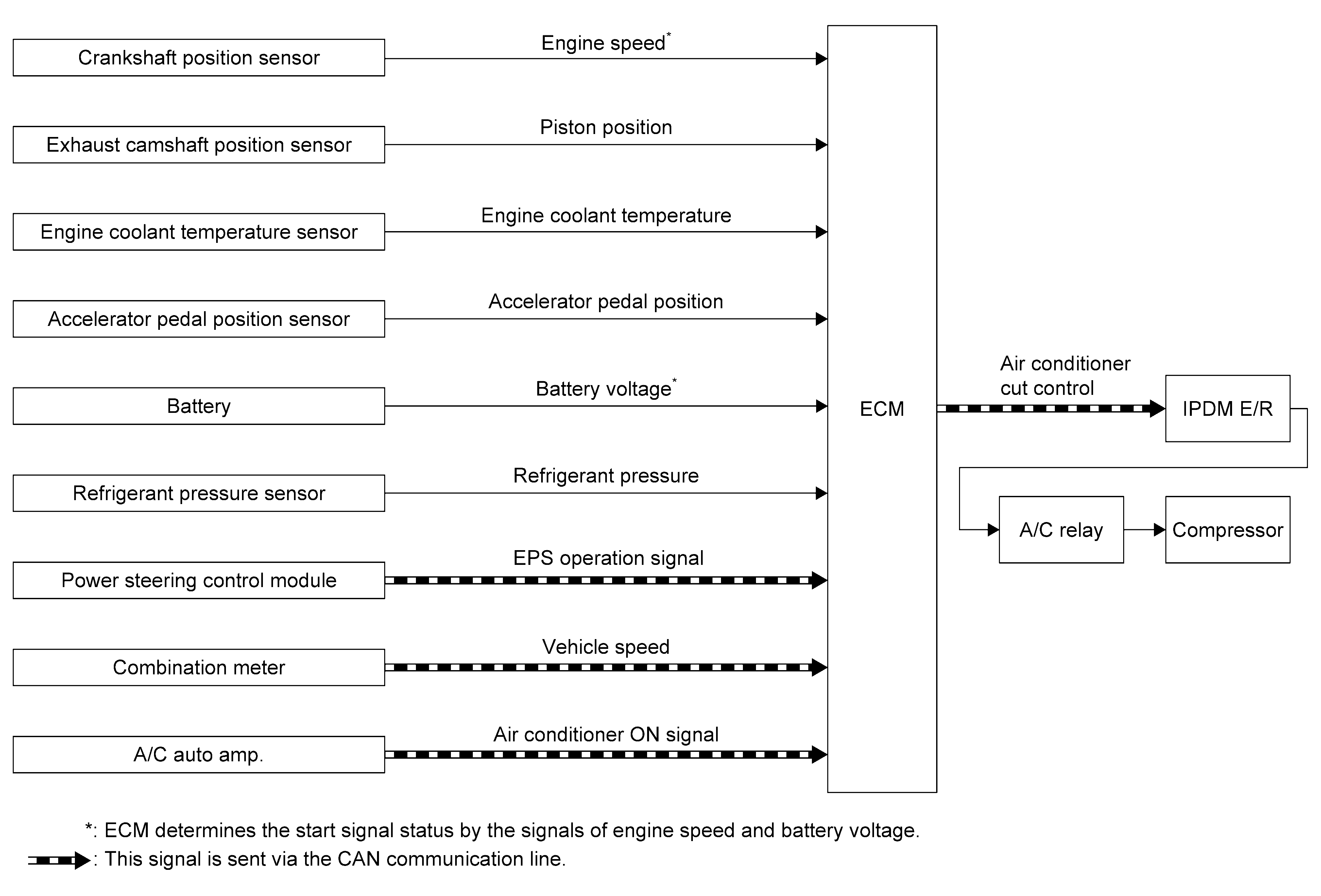

System Diagram

GNSJSBIB1159GB-159Courtesy of NISSAN NORTH AMERICA, INC.

Exhaust camshaft position sensor is not used for engine control operation.
