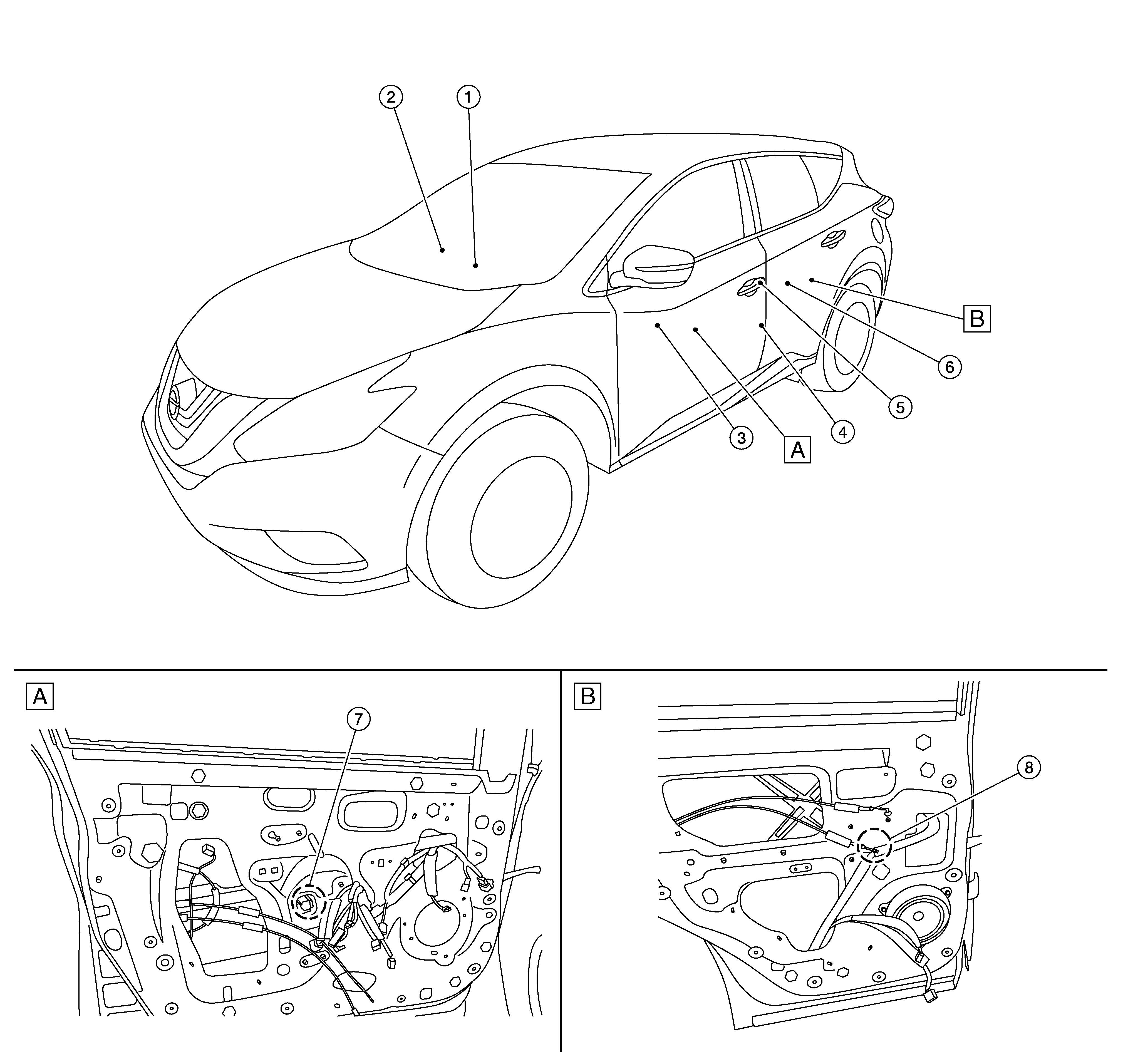

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with front door finisher removed

View with rear door finisher removed

No.	Part	Function
1.	BCM	Supplies power to the window switches. Controls retained power. Refer to Component Location for detailed installation location.
2.	Power window and door lock/unlock switch RH	Refer to Power Window and Door Lock/Unlock Switch RH
3.	Main power window and door lock/unlock switch	Refer to Main Power Window and Door Lock/Unlock Switch
4.	Front door switch LH	Detects door open/close condition and transmits to BCM. Refer to Front Door Switch .
5.	Rear power window switch LH	Refer to Rear Power Window Switch
6.	Front power window motor LH	Refer to Power Window Motor
7.	Rear power window motor LH	Refer to Power Window Motor
