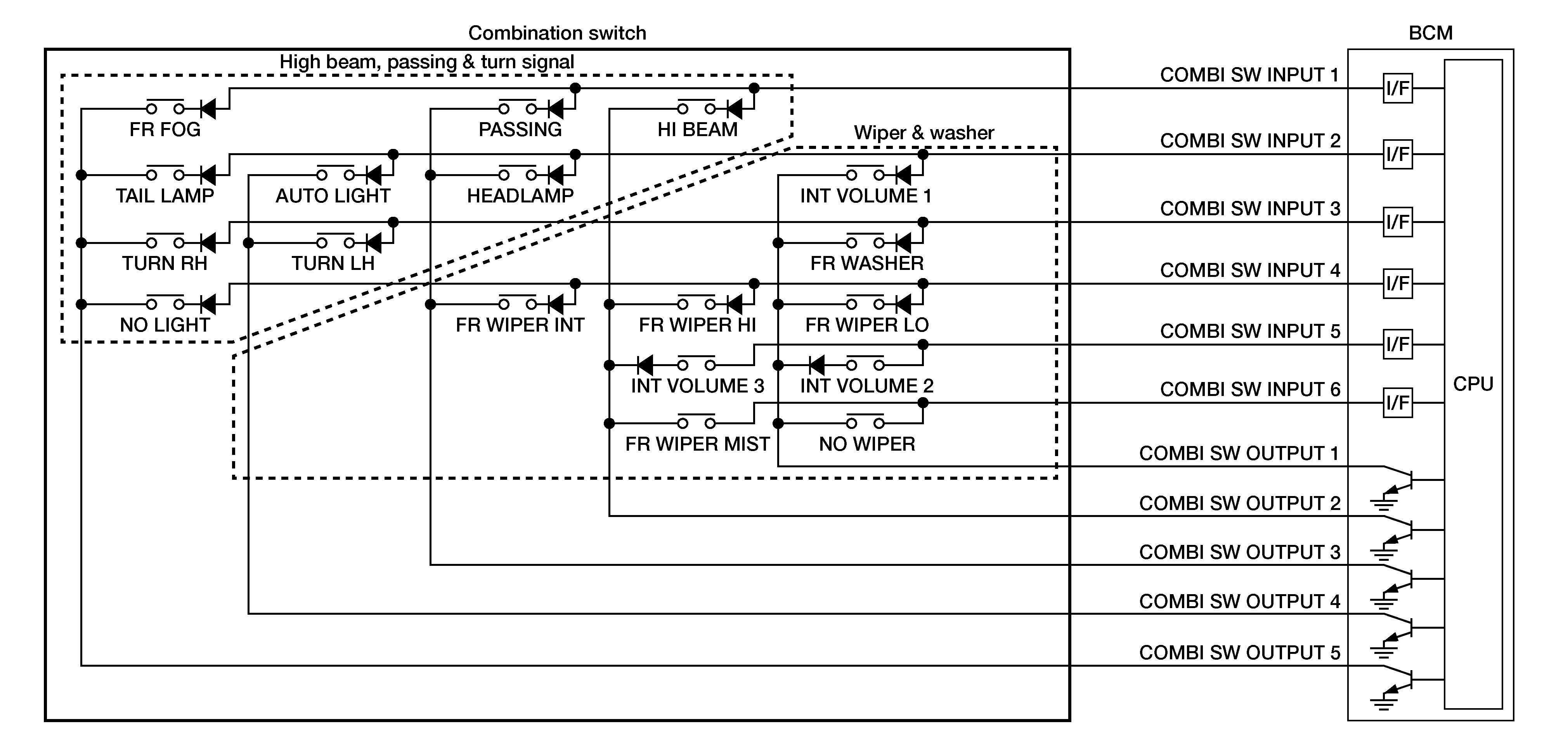

Combination Switch Matrix
Combination switch INPUT-OUTPUT system list
|
System |
INPUT 1 |
INPUT 2 |
INPUT 3 |
INPUT 4 |
INPUT 5 |
INPUT 6 |
|
OUTPUT 1 |
-- |
INT VOLUME 1 |
FR WASHER |
FR WIPER LO |
INT VOLUME 2 |
NO WIPER |
|
OUTPUT 2 |
HI BEAM |
-- |
-- |
FR WIPER HI |
INT VOLUME 3 |
FR WIPER MIST |
|
OUTPUT 3 |
PASSING |
HEADLAMP |
-- |
FR WIPER INT |
-- |
-- |
|
OUTPUT 4 |
-- |
AUTO LIGHT |
TURN LH |
-- |
-- |
-- |
|
OUTPUT 5 |
FR FOG |
TAIL LAMP |
TURN RH |
NO LIGHT |
-- |
-- |
