FUEL TANK : Exploded View

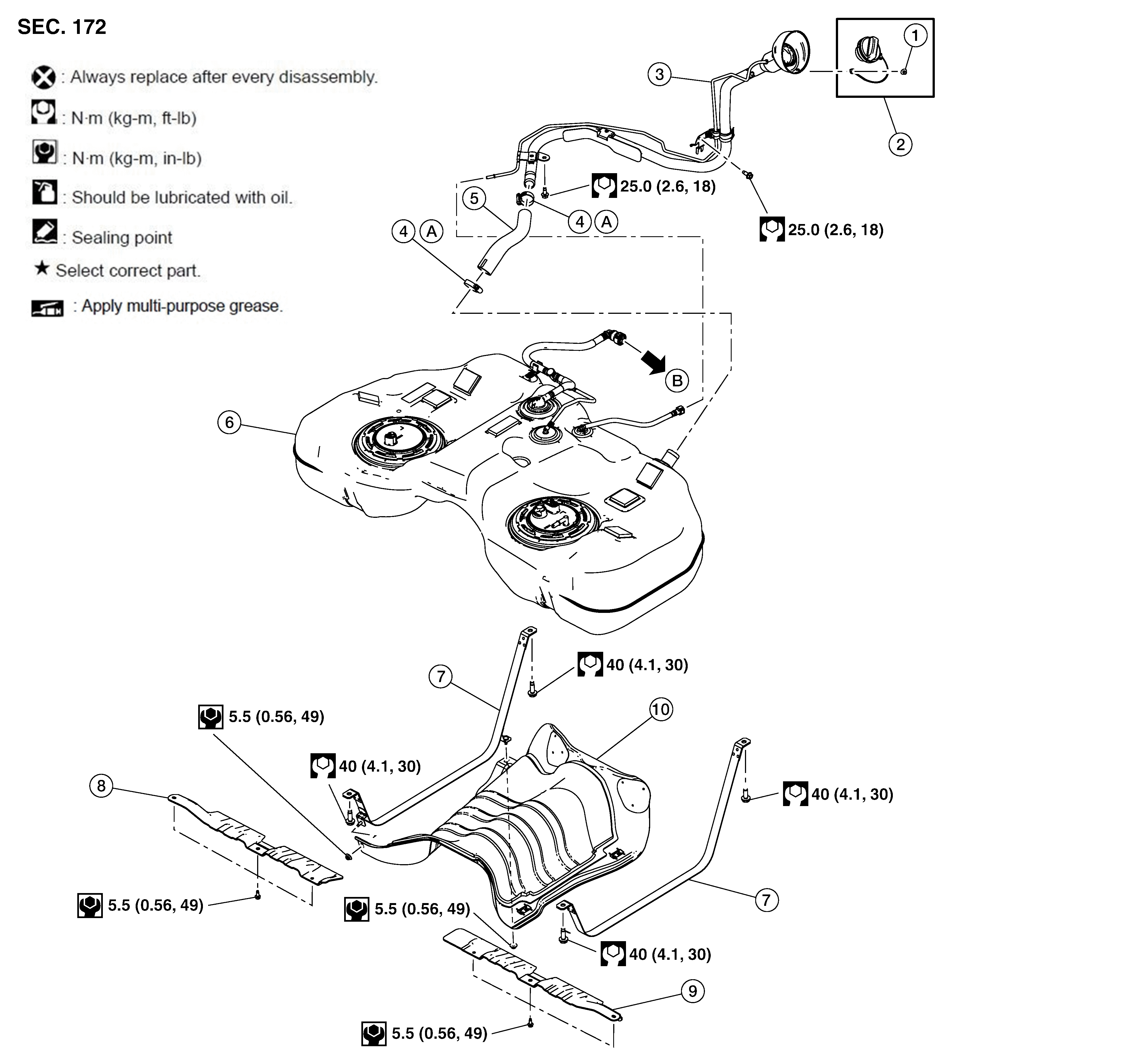

Fig 1: Fuel Tank Components With Torque Specifications - AWD
GNSALBIA0442Z-442Courtesy of NISSAN NORTH AMERICA, INC.

1.

Clip

2.

Fuel filler cap

3.

Fuel filler hose

4.

Clamp

5.

Fuel filler hose lower

6.

Fuel tank

7.

Fuel tank mounting straps

8.

Fuel tank protector (RH)

9.

Fuel tank protector (LH)

10.

Fuel tank protector

A.

Refer to FUEL TANK : Removal & Installation .

B.

To EVAP canister. Refer to EVAP CANISTER : Exploded View .
