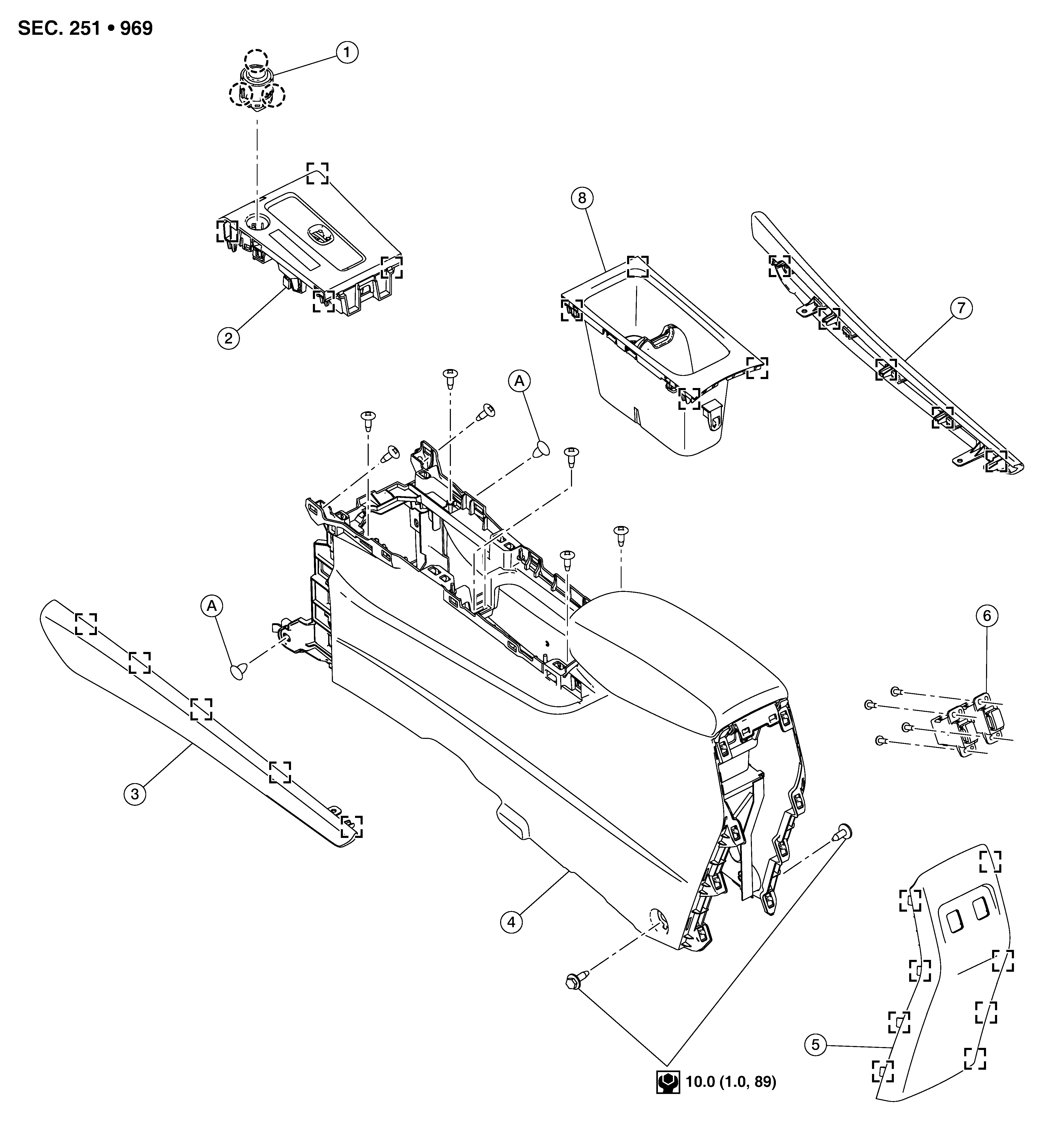

Exploded View
|
1. |
Push-button ignition switch |
2. |
Shift selector finisher |
3. |
Center console finisher (LH) |
|
4. |
Center console assembly |
5. |
Center console rear finisher |
6. |
Rear USB charge port |
|
7. |
Center console finisher (RH) |
8. |
Cup holder |
A. |
Clip |
|
|
Pawl |
|
Metal clip |
|

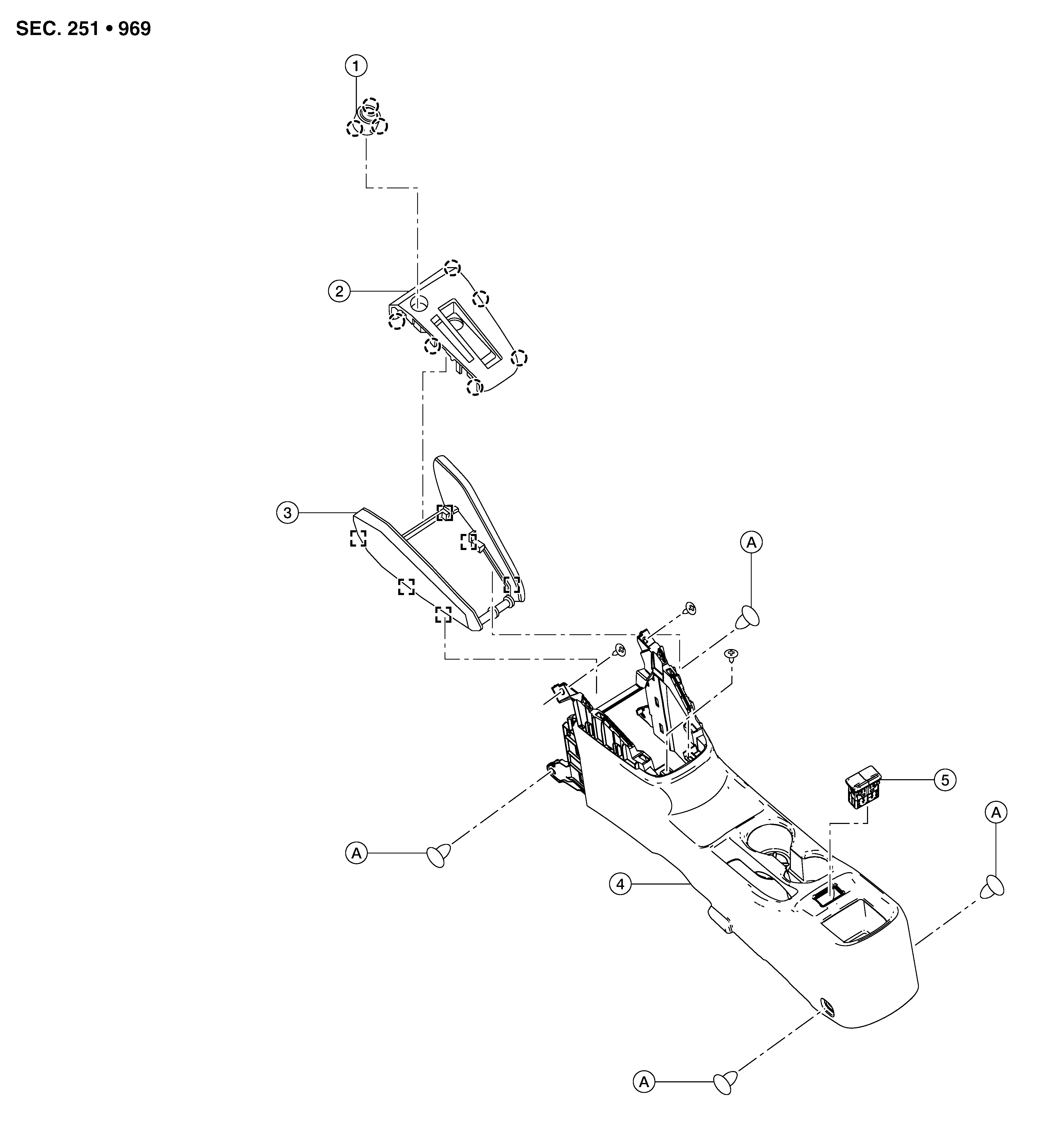

1. |
Push-button ignition switch |
2. |
Shift selector finisher |
3. |
Console upper finisher |
|
4. |
Center console |
5. |
Front USB charge port |
A. |
Clip |
|
|
Pawl |
|
Metal clip |
