Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name |
Description |
|
|

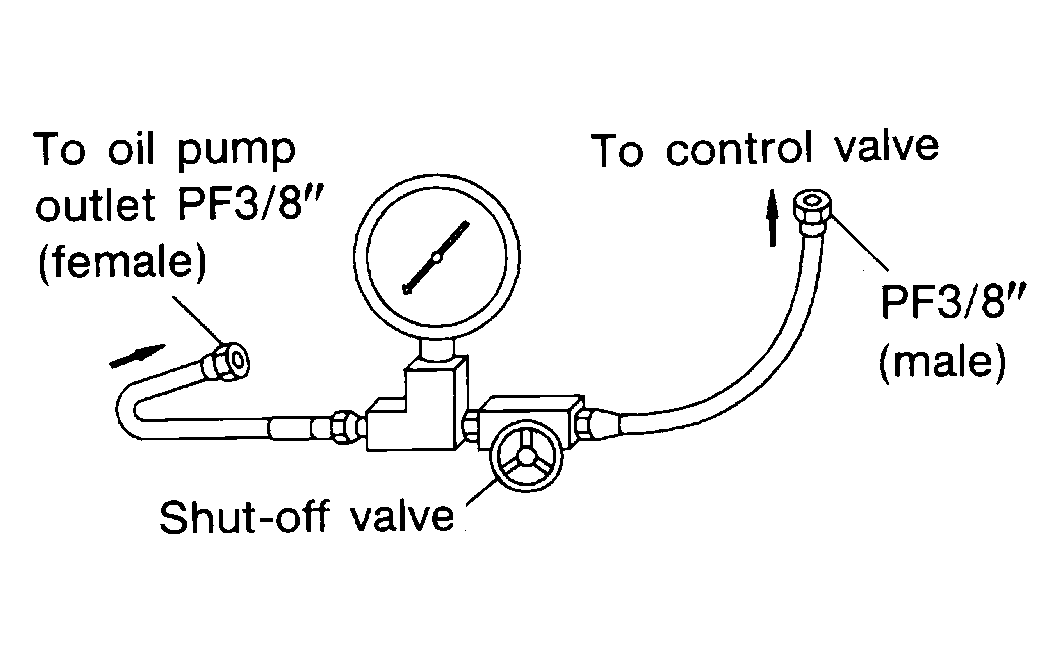

KV48103500 (J-26357) Pressure gauge |
Measuring power steering oil pump relief pressure |
|
|

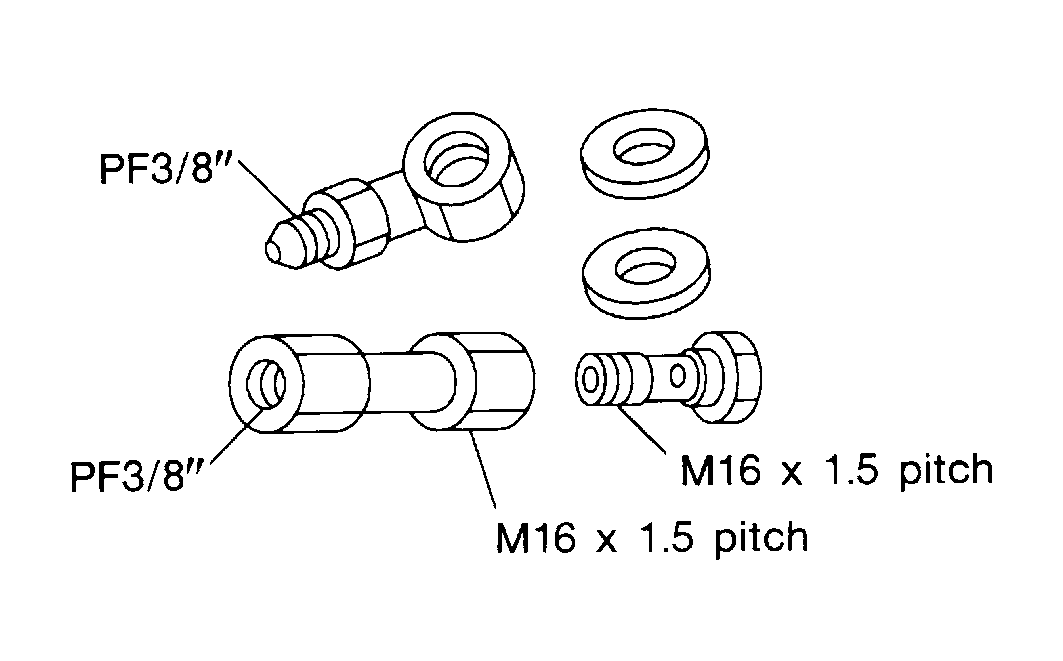

KV48102500 (J-33914) Pressure gauge adapter |
Measuring power steering oil pump relief pressure |
|
|
KV40107300 (J-51751) Boot clamp crimping tool |
Installing boot clamps |
|
|
-- (J-44372) Pull gauge |
Measuring steering wheel turning force, rack sliding force and ball joint swinging force |
|
