System Description: Description

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.
• When the selector lever is shifted to any position other than the reverse position, the original image (the image displayed before the rear view monitor image) is displayed.
• The sonar indicator is displayed on display (superimposed on the camera image) in combination with the camera assistance sonar system to warn of the approach of an obstacle.
• Camera image is displayed on the display when an obstacle is detected by sonar system.

Camera Image Operation Principle

• The AV control unit receives the reverse signal input and supplies power to the rear view camera.
• The rear view camera supplies the image signal to the AV control unit.
• The AV control unit displays the rear view camera image when the reverse signal is received.
• The AV control unit generates the warning message, vehicle width guide lines and the predicted course lines on the image from the rear view camera.

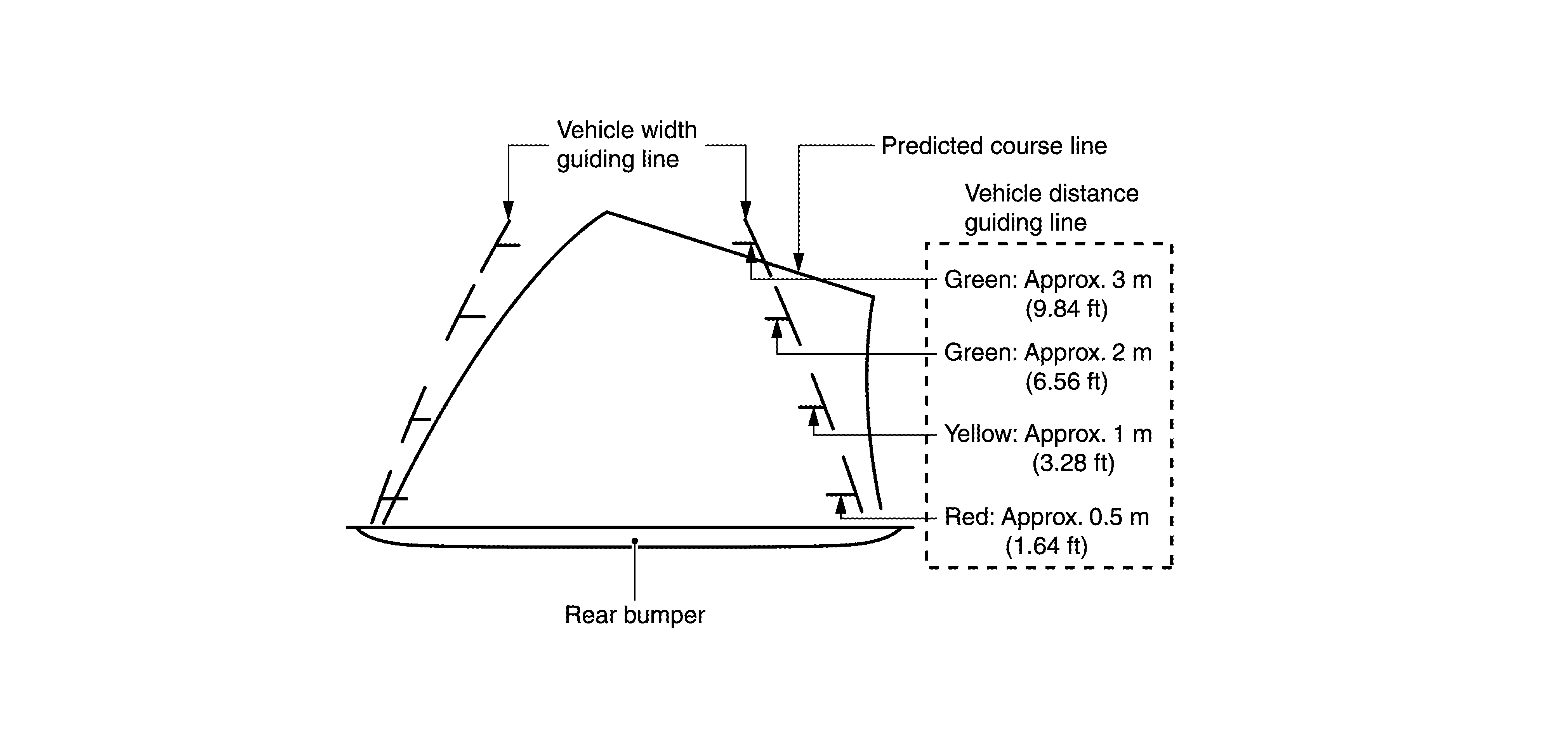

Vehicle Width Guide Lines and Predicted Course Lines Display Function

• The vehicle width guide lines and the predicted course lines that indicate the vehicle route according to the steering angle are displayed to allow the driver to more easily judge distances between the vehicle and objects and to help the driver back into a parking space.
• The AV control unit receives the steering signal from the steering sensor via CAN communication and draws a vehicle width guide line according to the steering angle.
• Vehicle width guide lines are displayed translucently.
• The predicted course lines are not displayed when the steering is in the neutral position.

Courtesy of NISSAN NORTH AMERICA, INC.

Precautions for Vehicle Width Guide Lines and Predicted Course Lines

Vehicle width guide lines and predicted course lines displayed may be different from actual lines depending on vehicle conditions and road conditions.

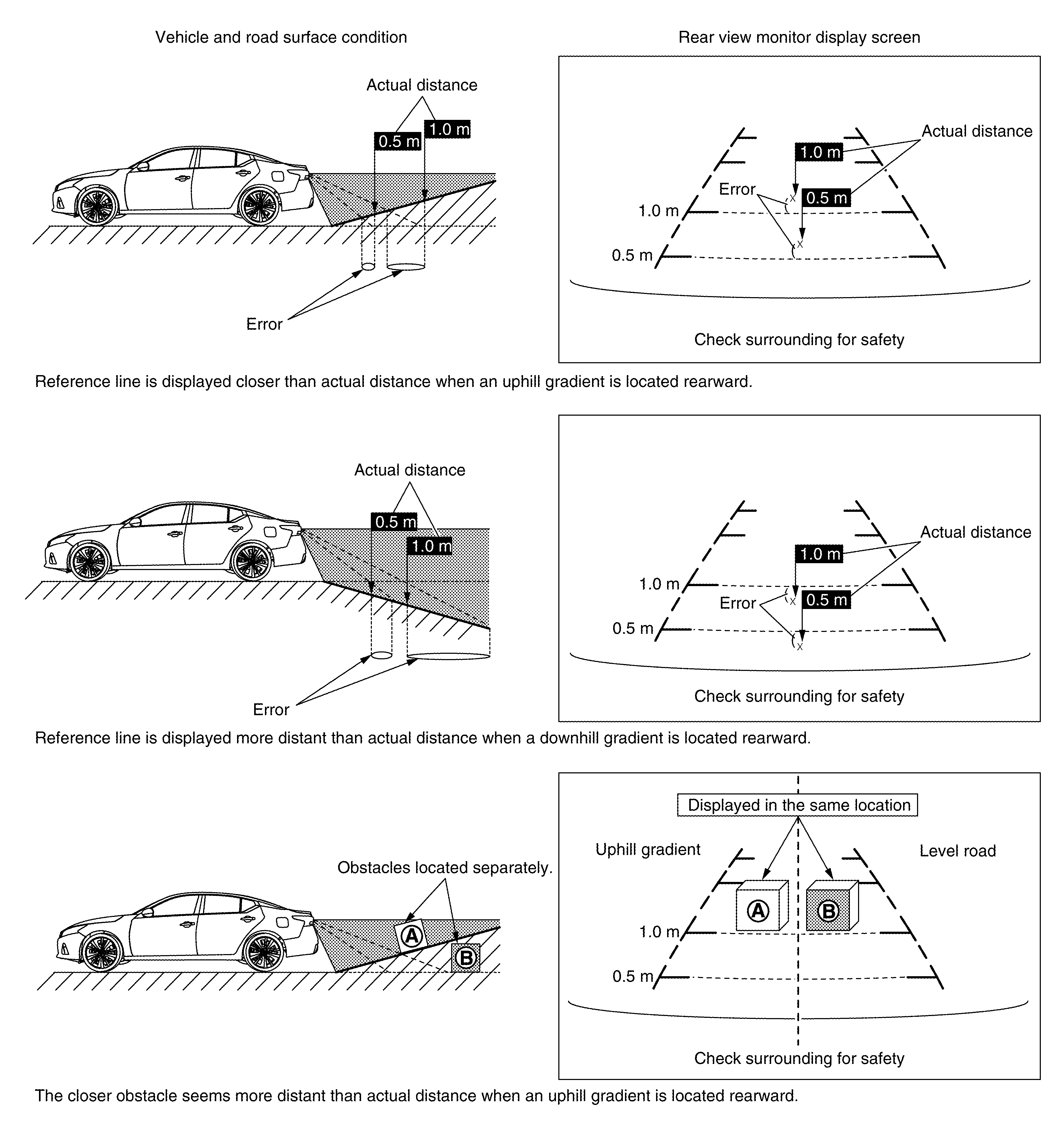

Precautions for road conditions

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if uphill or downhill gradient is present nearby.

  Courtesy of NISSAN NORTH AMERICA, INC.

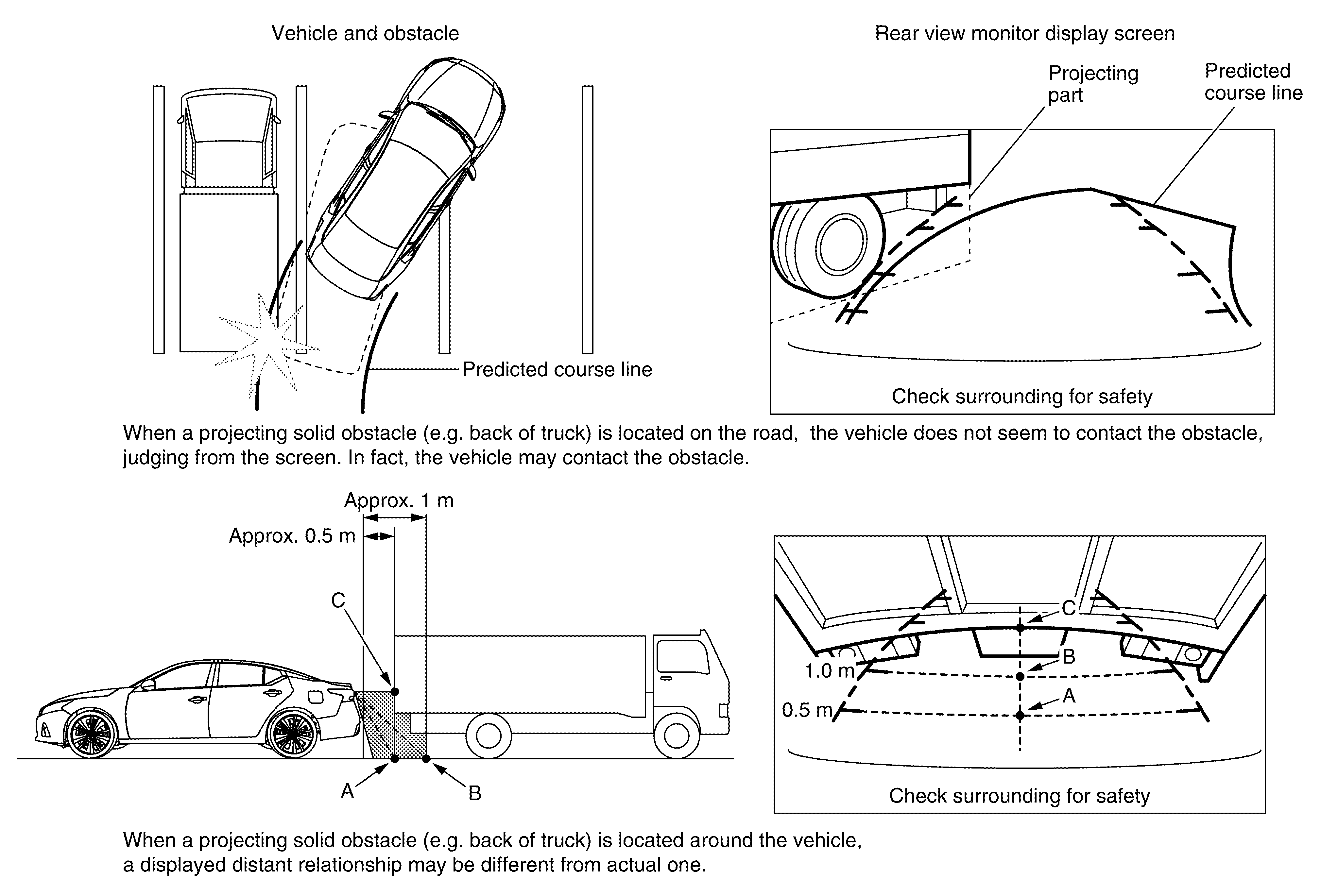

Precautions for block

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if a projecting obstacle is present nearby.

  Courtesy of NISSAN NORTH AMERICA, INC.
