Checking Front Wheel Turning Angle

Check front wheel turning angle after toe-in inspection. Place front wheels on turning radius gauges and rear wheels on stands. Check the maximum inner and outer wheel turning angles for LH and RH wheels.

Courtesy of NISSAN NORTH AMERICA, INC.

Measure the turning angles with the engine at idle, then turn the steering wheel from full left stop to full right stop and measure the turning angle. Refer to Steering Angle .

Courtesy of NISSAN NORTH AMERICA, INC.

Inner wheel angle (A)	: Refer to Steering Angle .
Outer wheel angle (B)	: Refer to Steering Angle .

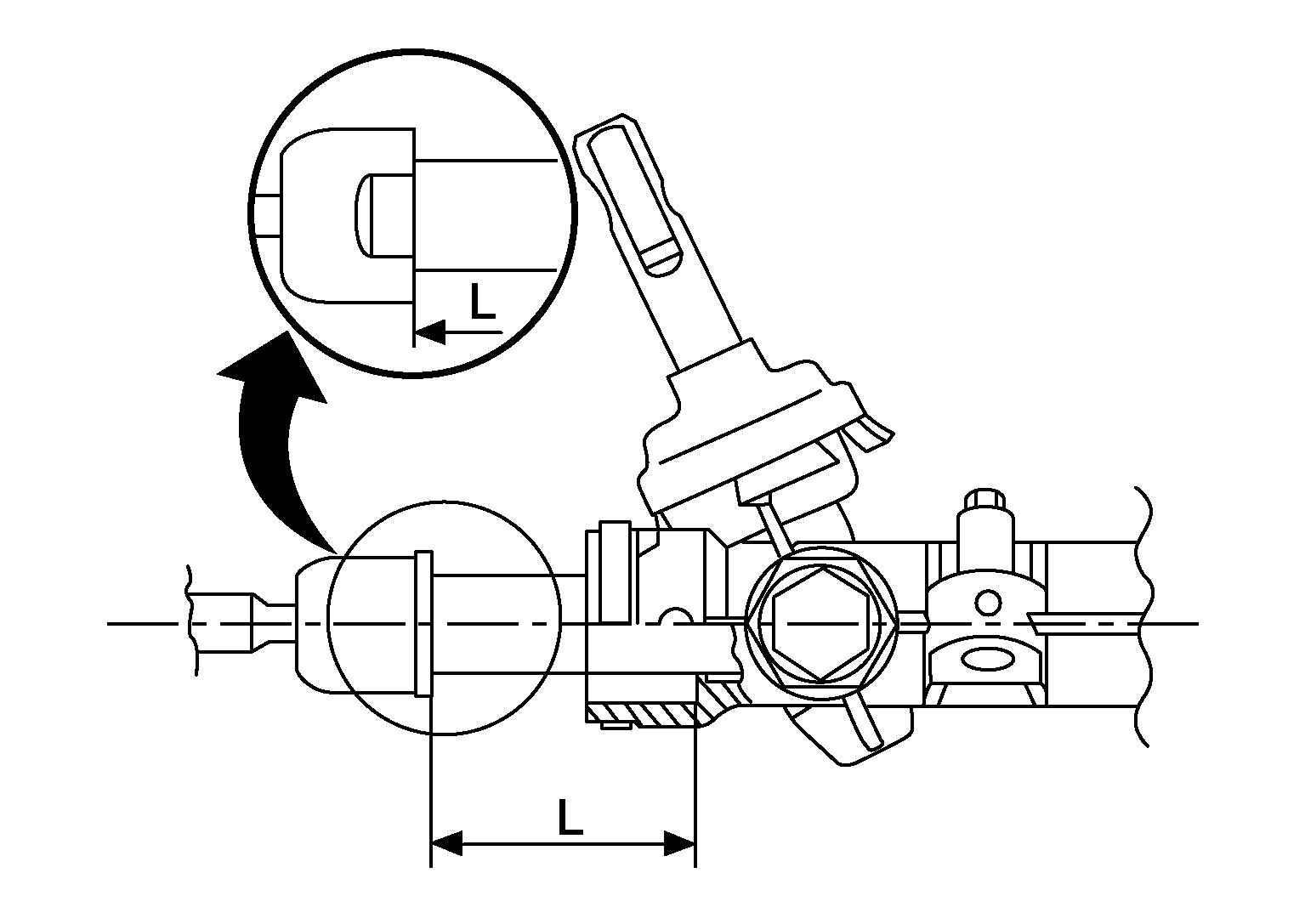

Measure the rack stroke specification with vehicle in neutral position. Refer to Steering Gear .

Courtesy of NISSAN NORTH AMERICA, INC.

Rack stroke in neutral position (L)

: Refer to Steering Gear .
