Work Procedure

  1. CHECK IGNITION TIMING

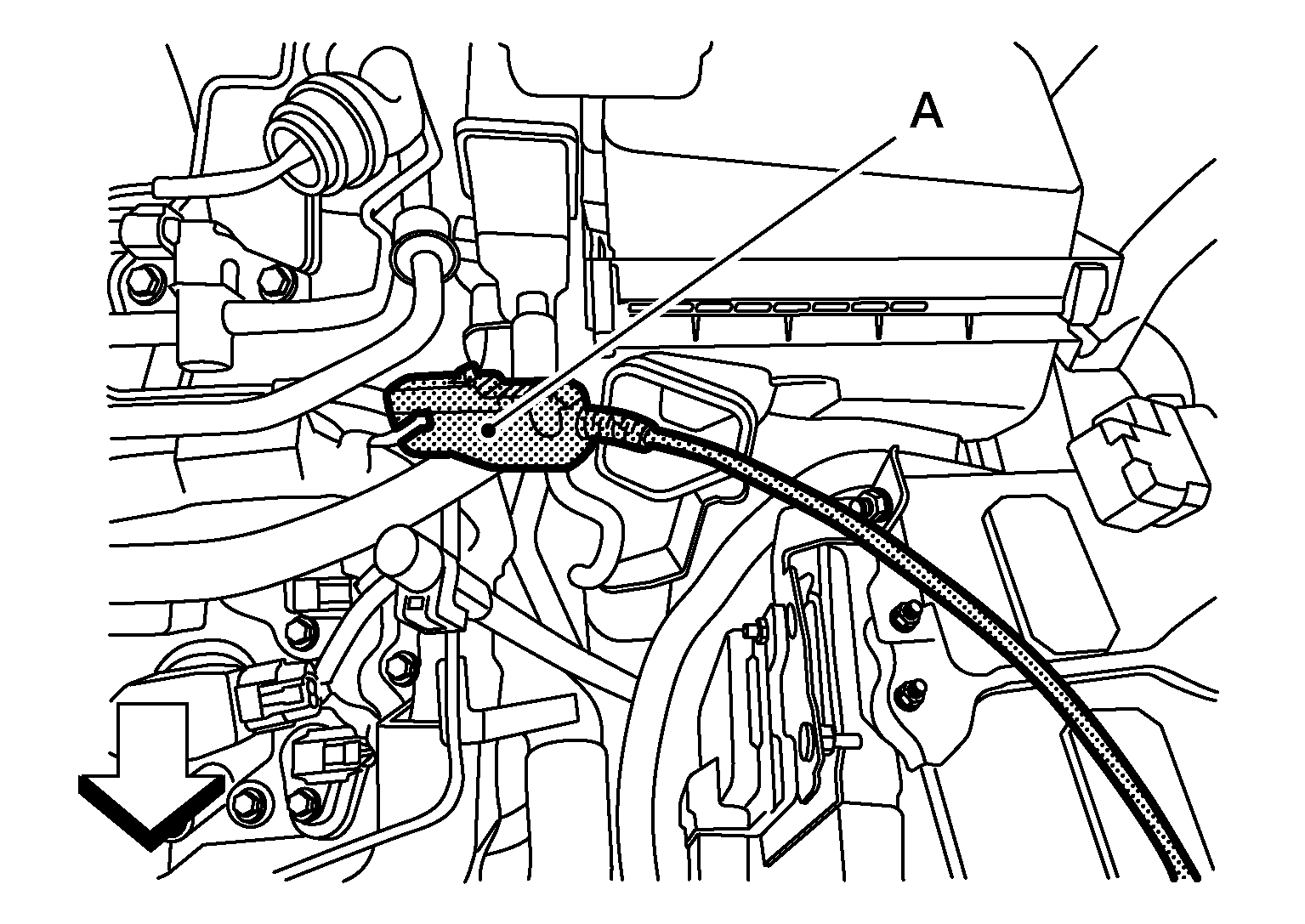

    1. Attach timing light to loop wires as shown.
      GNSALBIA1271Z-271Courtesy of NISSAN NORTH AMERICA, INC.

      (A)

      : Timing light

      SYMBOL

      : Vehicle front
    2. Check ignition timing.
      G00572401Courtesy of NISSAN NORTH AMERICA, INC.

    INSPECTION END
