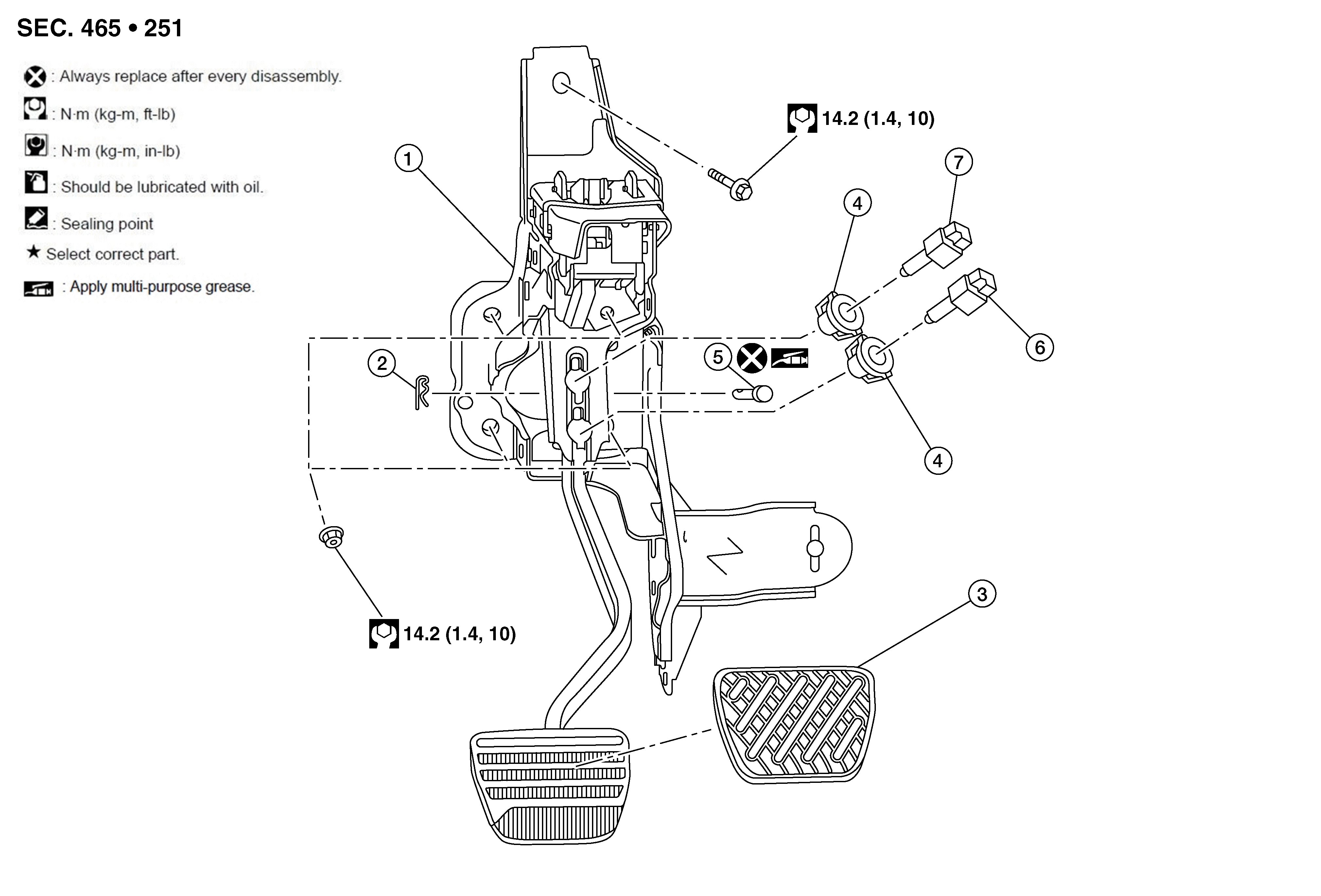

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Brake pedal
|
2.
|
Snap pin
|
3.
|
Brake pedal pad
|
|
4.
|
Clip
|
5.
|
Clevis pin
|
6.
|
Stop lamp switch
|
|
7.
|
Brake pedal position switch
|
