Exploded View

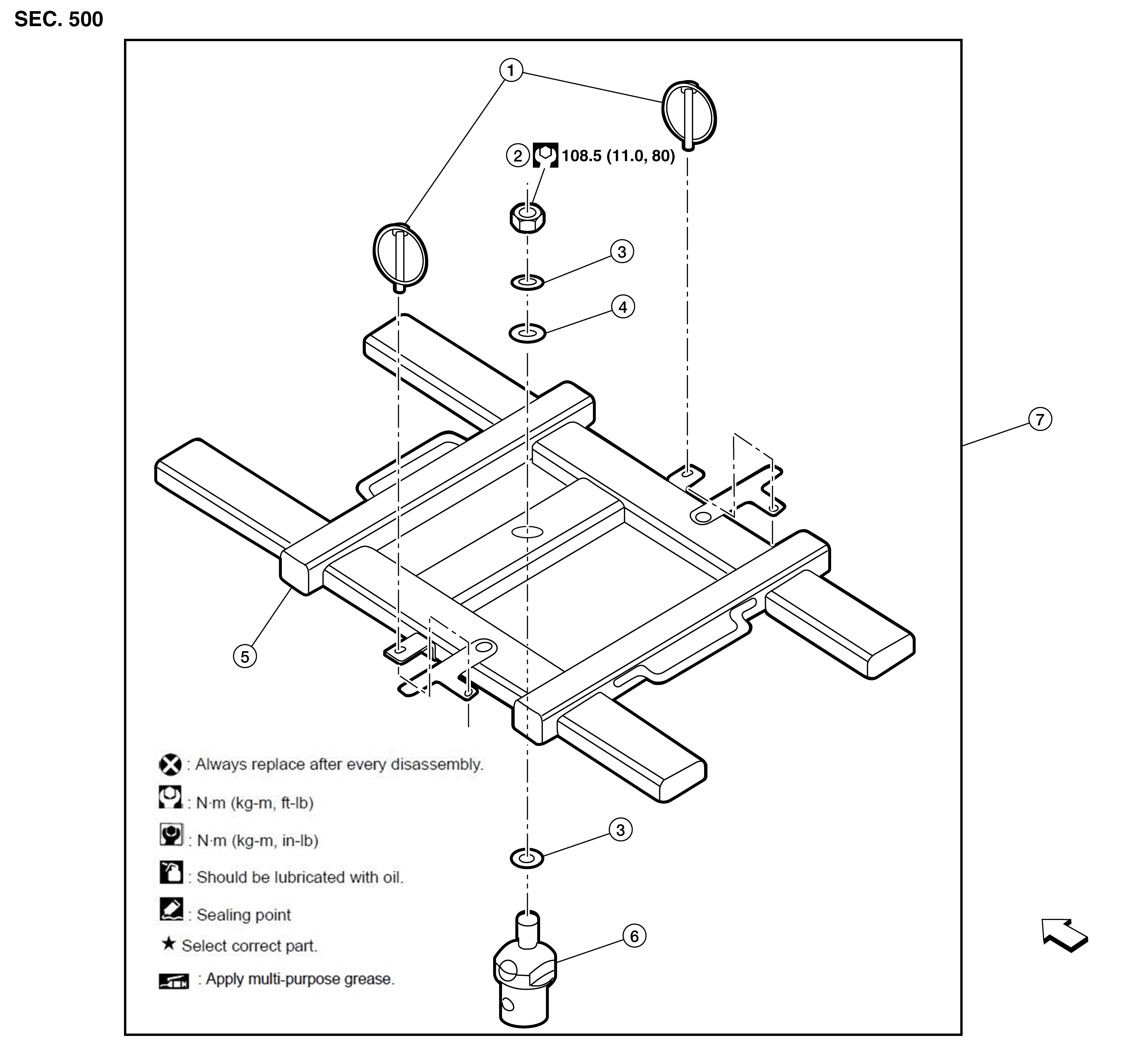

Fig 1: Fifth Wheel Adapter Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lynch pin	2.	Nut	3.	Conical washer
4.	Flat washer	5.	Fifth wheel adapter	6.	Center attachment
7.	Fifth wheel adapter assembly		Front
