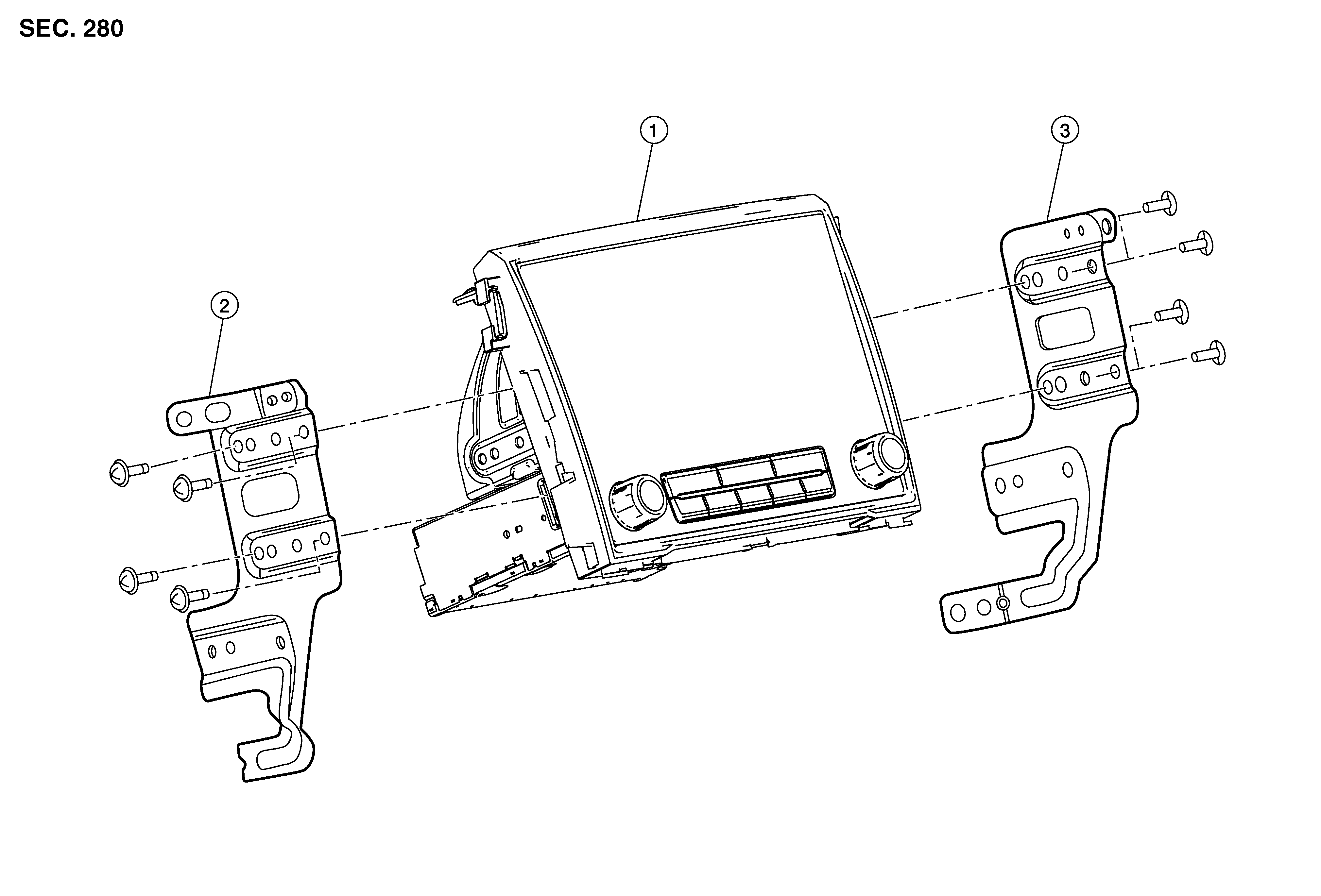

Exploded View

GNSAWNIA0454Z-454Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit

2.

AV control unit bracket (LH)

3.

AV control unit bracket (RH)

SYMBOL

Front
