Exploded View

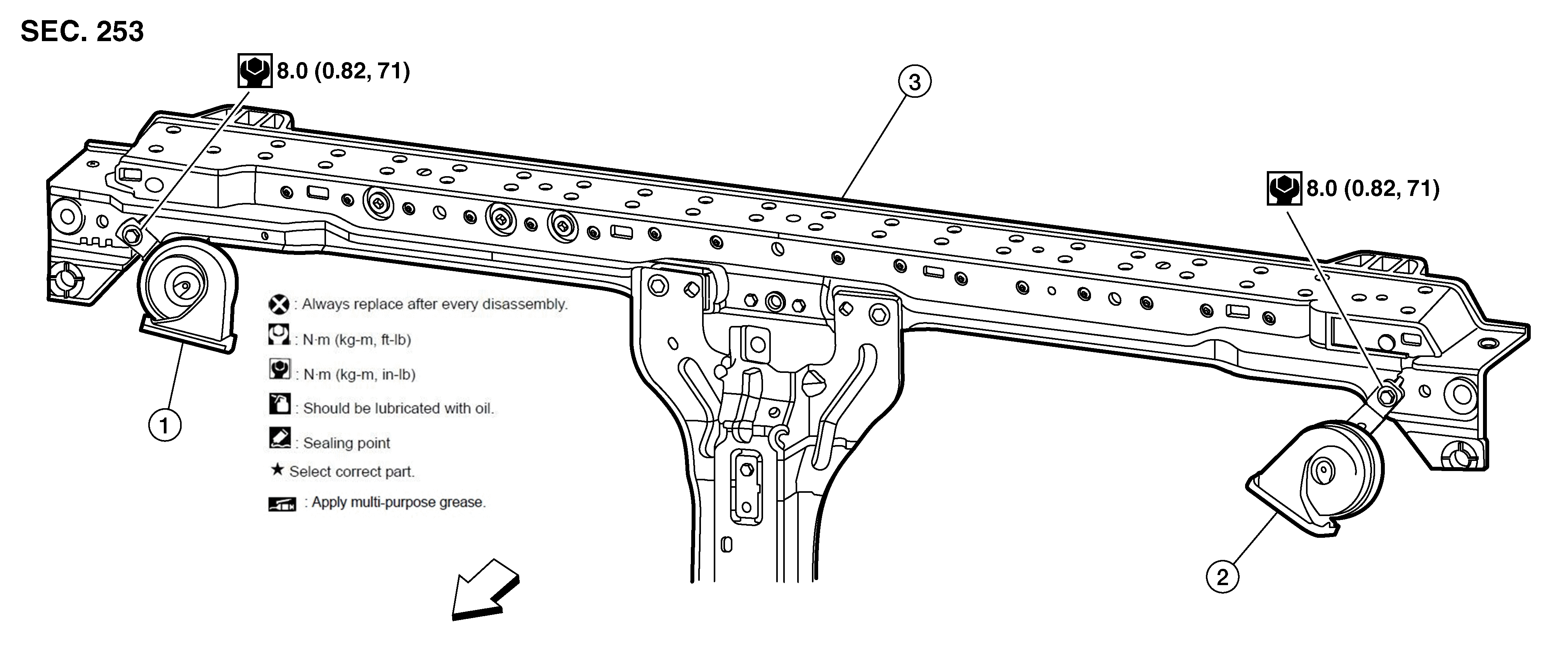

Fig 1: Horn Components With Torque Specifications
GNSAWLIA3128Z-128Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn (LOW)

2.

Horn (HIGH)

3.

Radiator core support

SYMBOL

Front
NOTE: XD Models shown, Non-XD Models similar.
