Home
>>
Nissan-Datsun
>>
2021
>>
Versa S, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Intelligent Cruise Control
>>
System Description
>>
System
>>
Conventional (Fixed Speed) Cruise Control Mode Function
>>

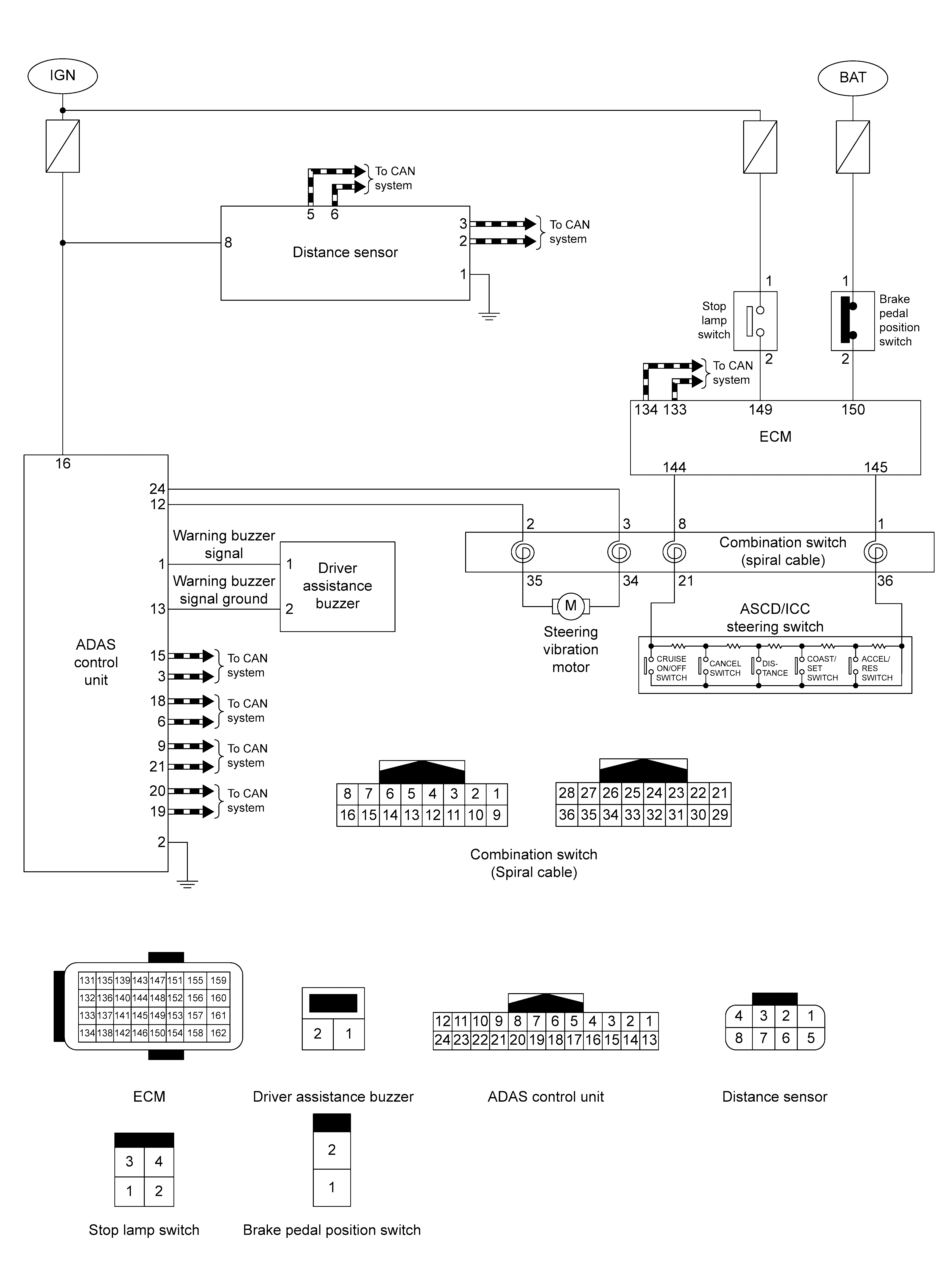

Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
