Exploded View

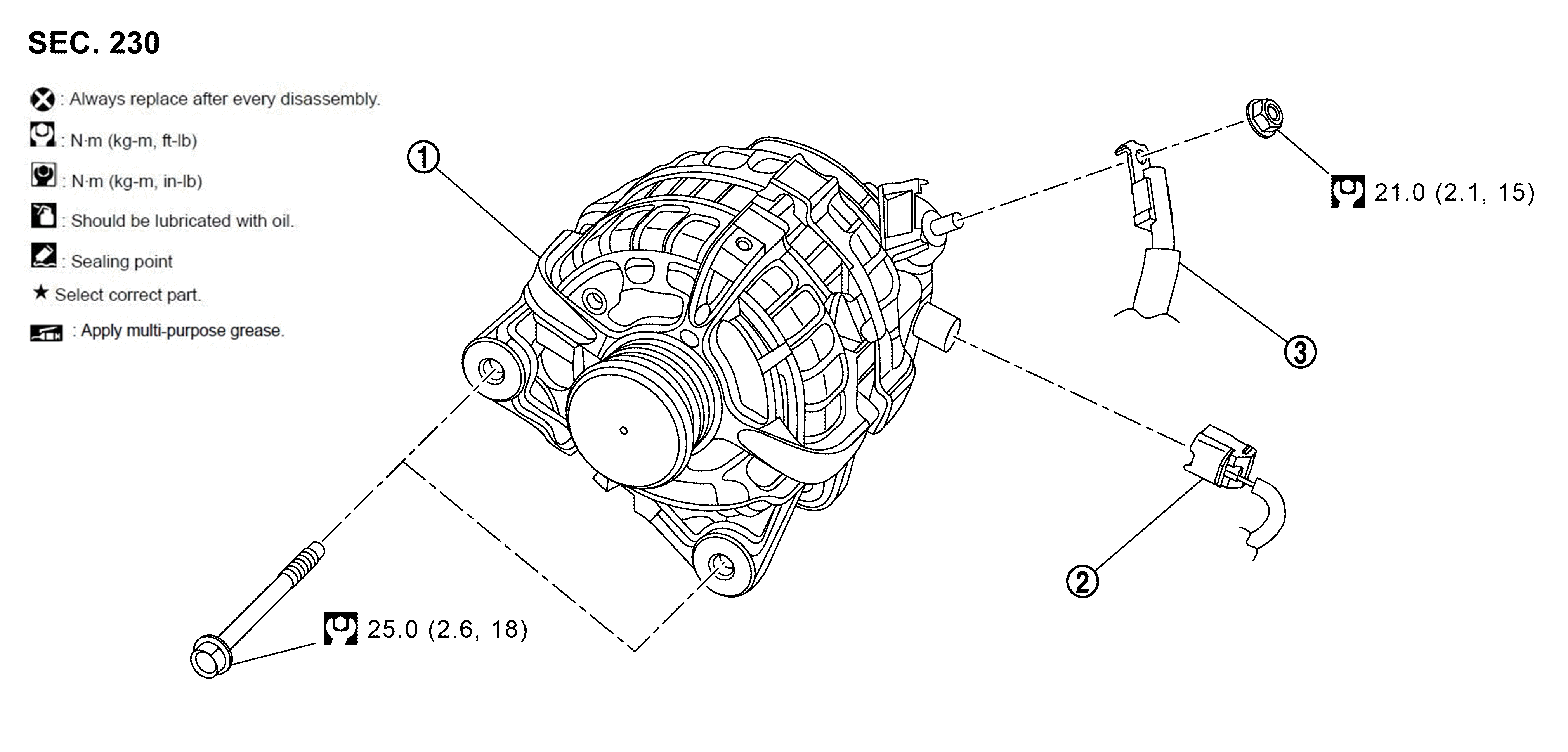

Fig 1: Generator With Torque Specifications
GNSILL0310315SYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Generator

SYMBOL

Generator harness connector

SYMBOL

"B" terminal

SYMBOL

: N.m (kg-m, ft-lb)
