Exploded View

POWER DRIVER SEAT

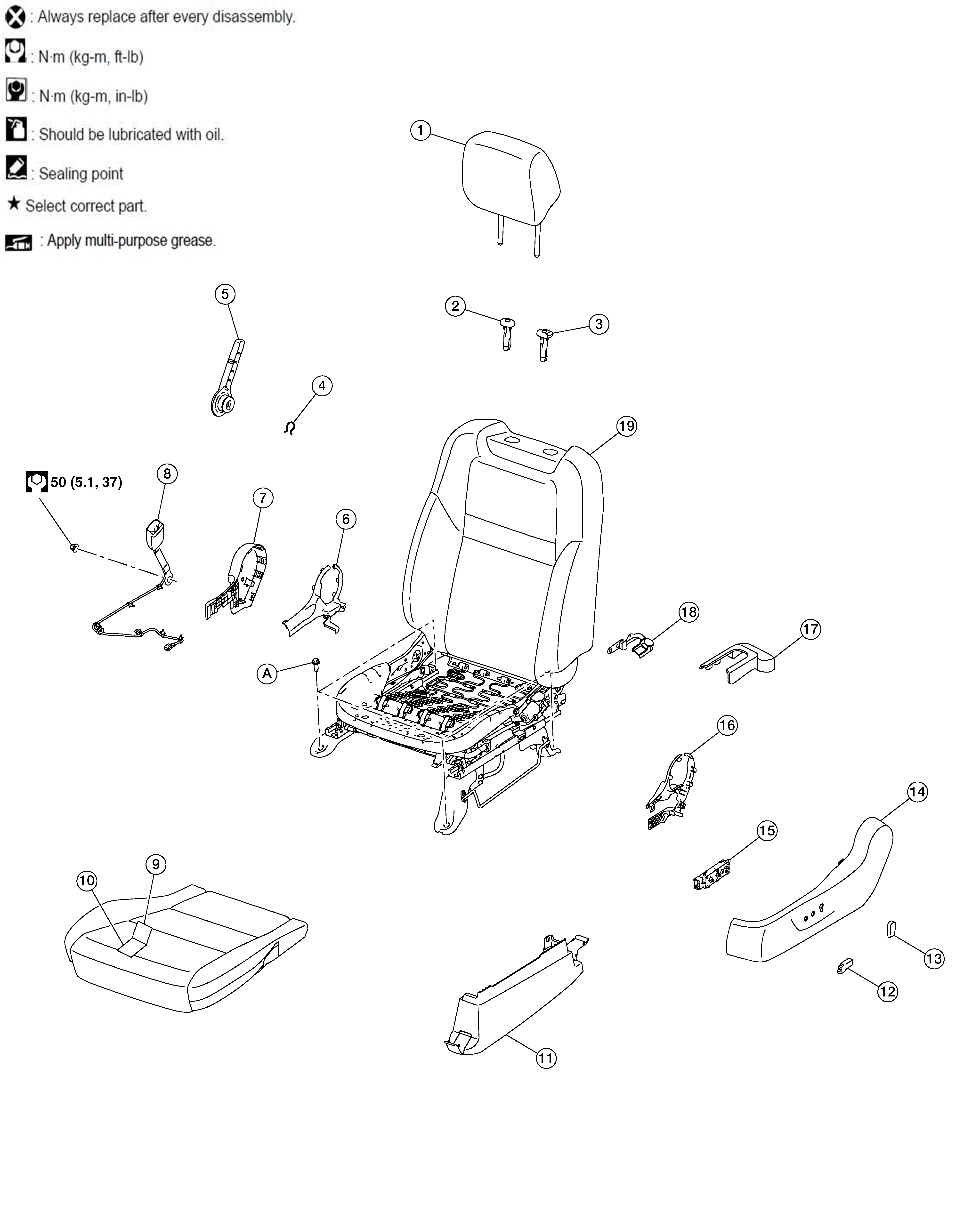

Fig 1: Front Seat With Torque Specifications - Power Driver Seat

Courtesy of NISSAN

1.	Headrest	2.	Headrest holder (free)	3.	Headrest holder (locked)
4.	Snap ring	5.	Lumbar support lever knob	6.	Seat cushion inner finisher (RH)
7.	Seat cushion outer finisher (RH)	8.	Seat belt buckle	9.	Seat cushion trim
10.	Seat cushion pad	11.	Leg cover	12.	Slide switch knob
13.	Recliner switch knob	14.	Seat cushion outer finisher (LH)	15.	Power seat switch
16.	Seat cushion inner finisher (LH)	17.	Slide finisher	18.	Slide finisher lower
19.	Seat frame assembly	A.	Refer to Removal and Installation .

MANUAL DRIVER SEAT

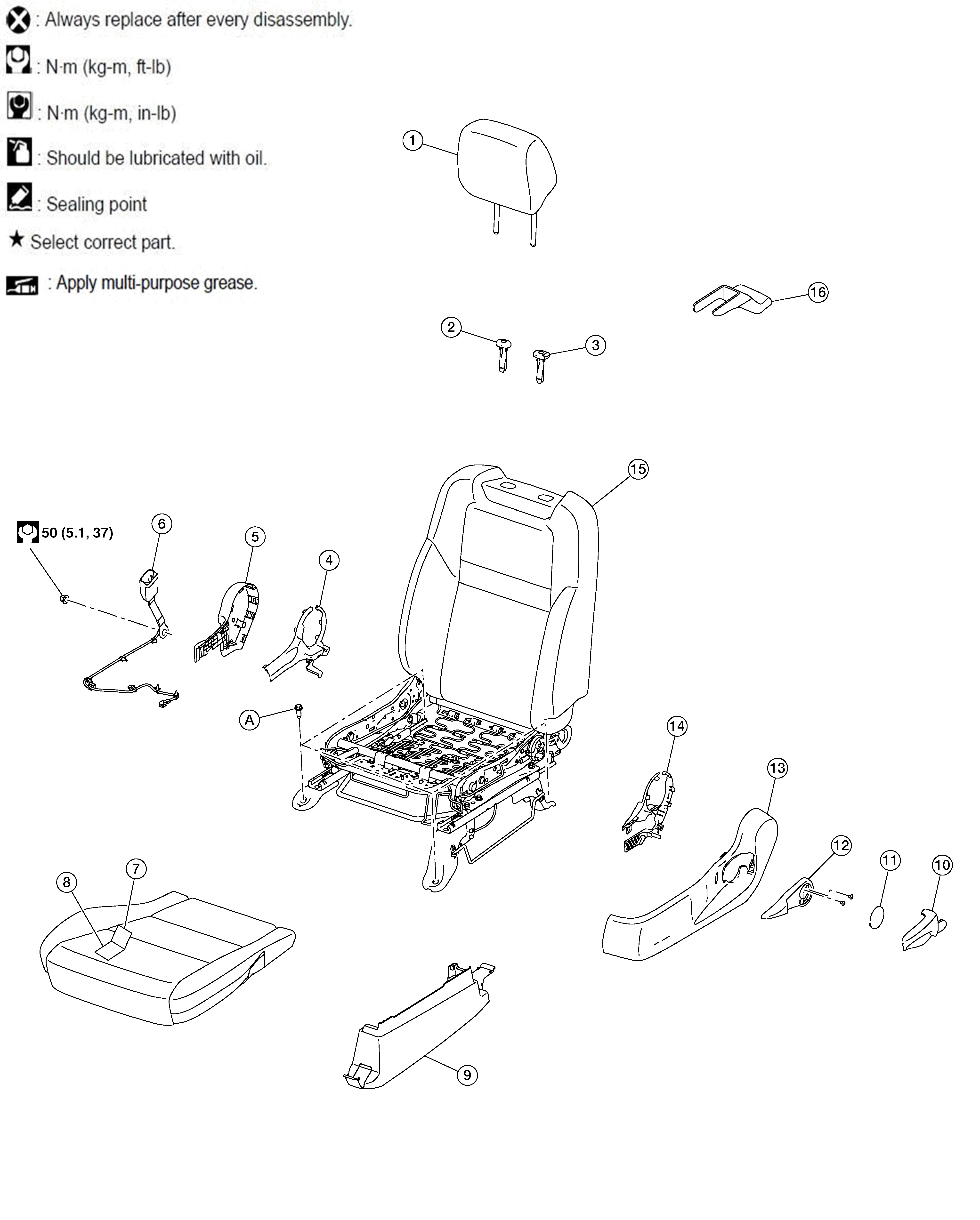

Fig 2: Front Seat With Torque Specifications - Manual Driver Seat

Courtesy of NISSAN

1.	Headrest	2.	Headrest holder (free)	3.	Headrest holder (locked)
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat belt buckle
7.	Seat cushion trim	8.	Seat cushion pad	9.	Leg cover
10.	Recline lever finisher	11.	Lift lever cover	12.	Lift lever
13.	Seat cushion outer finisher (LH)	14.	Seat cushion inner finisher (LH)	15.	Seat frame assembly
16.	Slide finisher	A.	Refer to Removal and Installation .

PASSENGER SEAT

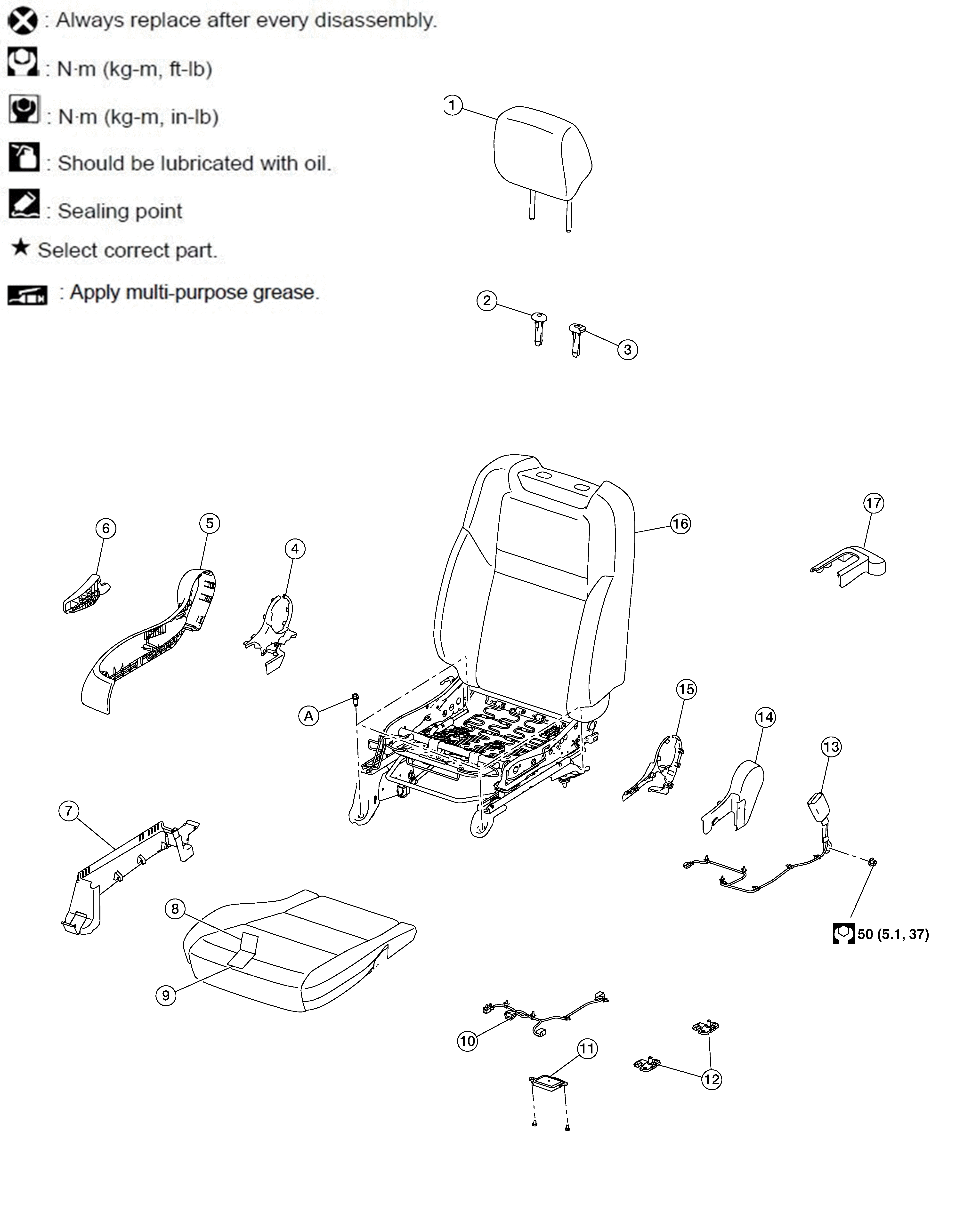

Fig 3: Front Seat With Torque Specifications - Passenger Seat

Courtesy of NISSAN

1.	Headrest	2.	Headrest holder (free)	3.	Headrest holder (locked)
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Recline lever finisher
7.	Leg cover	8.	Seat cushion trim	9.	Seat cushion pad
10.	Occupant classification system sensor harness	11.	Occupant classification system control unit	12.	Occupant classification system sensors
13.	Seat belt buckle	14.	Seat cushion outer finisher (LH)	15.	Seat cushion inner finisher (LH)
16.	Seat frame assembly	17.	Slide finisher	A.	Refer to Removal and Installation .
