Removal and Installation

REMOVAL

CAUTION:

If replacing ADAS control unit, perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2". Refer to Description .

  1. Disconnect battery. Refer to Battery Disconnect .
  2. Remove glove box assembly. Refer to Removal and Installation .

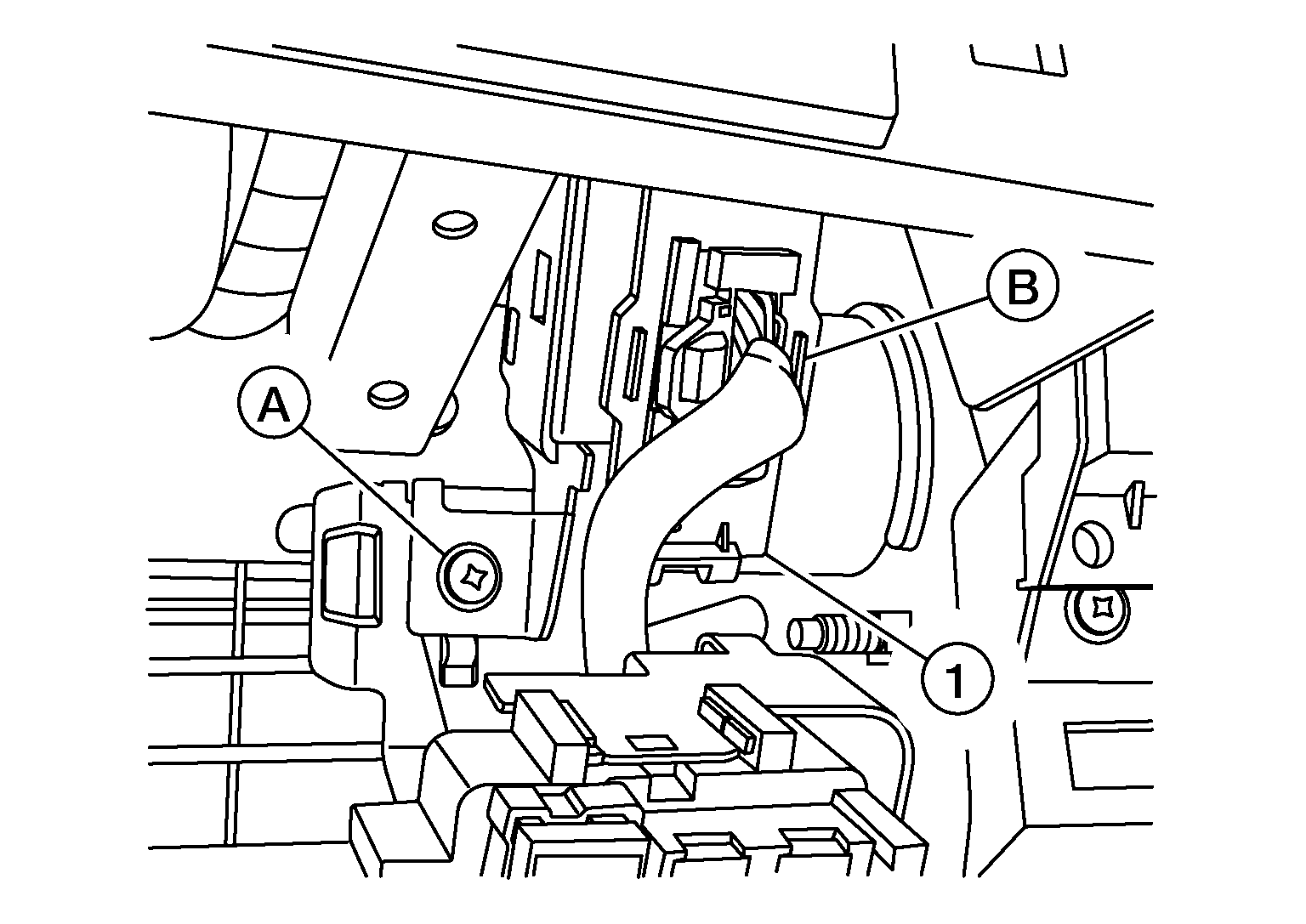

  3. Remove ADAS control unit 2 screw (A).
    GNSDB43938Courtesy of NISSAN
  4. Disconnect harness connector (B) from ADAS control unit 2 (1).
  5. Remove ADAS control unit 2.

INSTALLATION

CAUTION:

If replacing ADAS control unit 2, perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT 2". Refer to Description .

Installation is in the reverse order of removal.
