Removal and Installation

REMOVAL

CAUTION:

If replacing chassis control module, Perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .

Remove the instrument panel assembly. Refer to Removal and Installation .

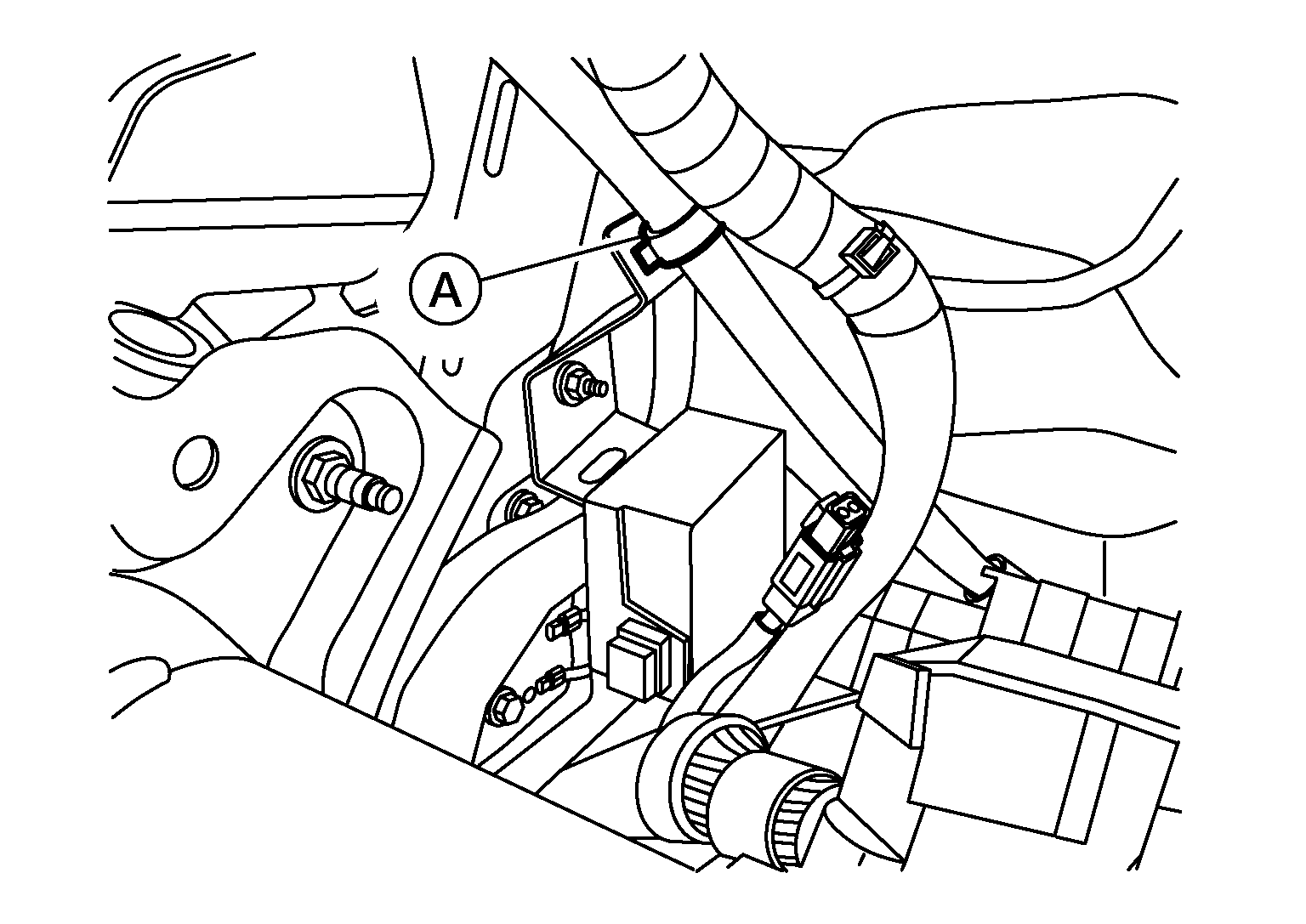

Release clip (A).

Courtesy of NISSAN
Disconnect the harness connector from chassis control module.

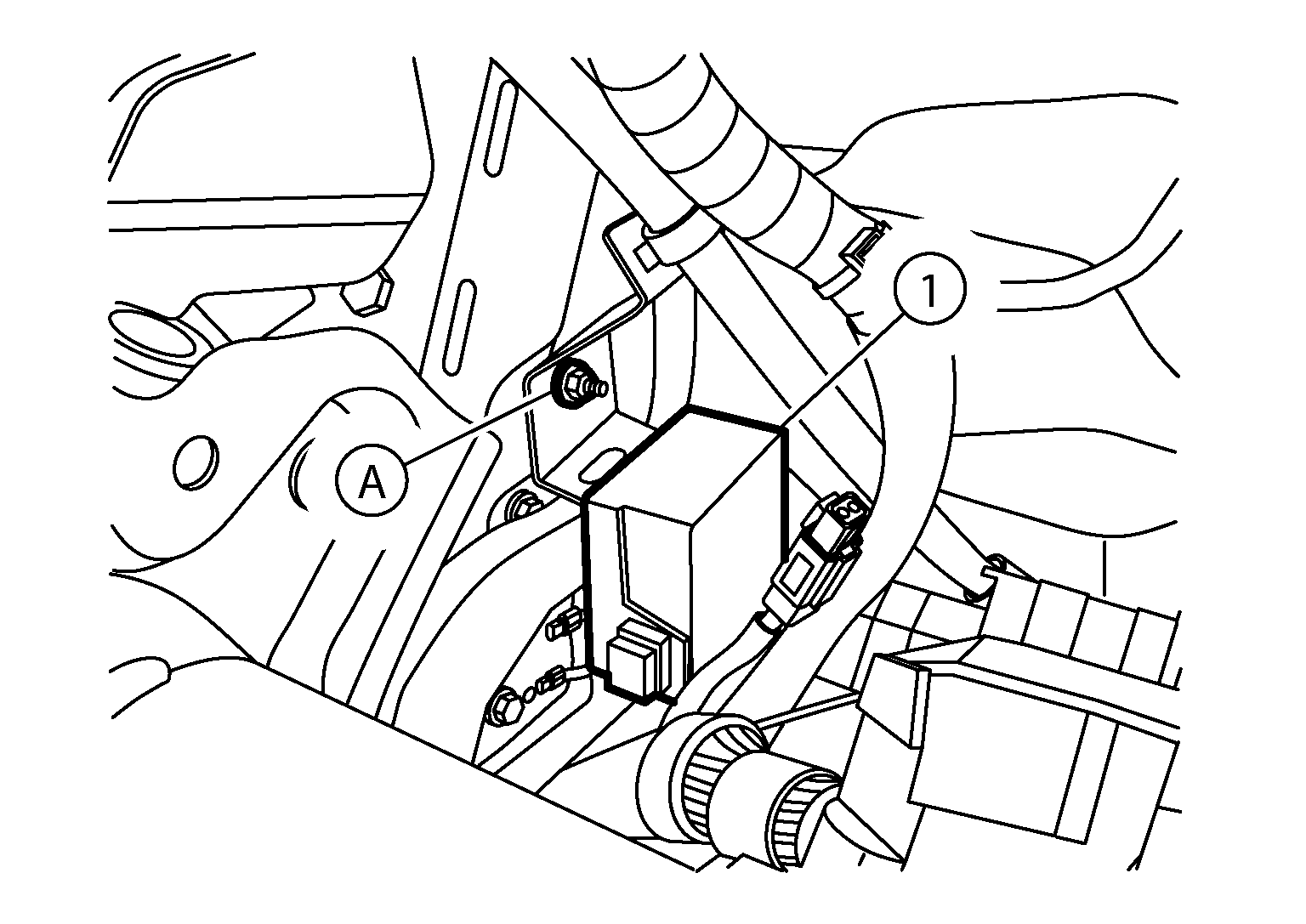

Remove nut (A), then remove chassis control module (1).

Courtesy of NISSAN

CAUTION:
Do not drop the chassis control module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing chassis control module, perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
