Engine Control System: Wiring Diagram

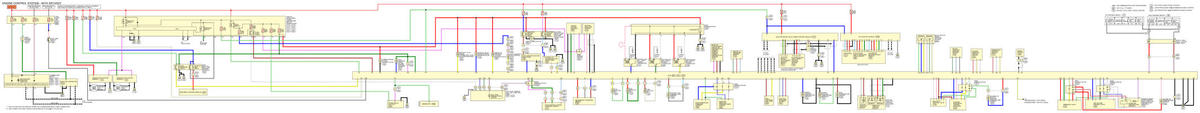

ENGINE CONTROL SYSTEM WITH IDLE STOP/START SYSTEM

GNSW70512Courtesy of NISSAN NORTH AMERICA, INC.

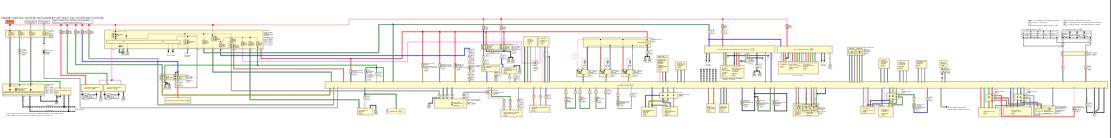

ENGINE CONTROL SYSTEM WITHOUT IDLE STOP/START SYSTEM

GNSW73300Courtesy of NISSAN NORTH AMERICA, INC.
