Component Location

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

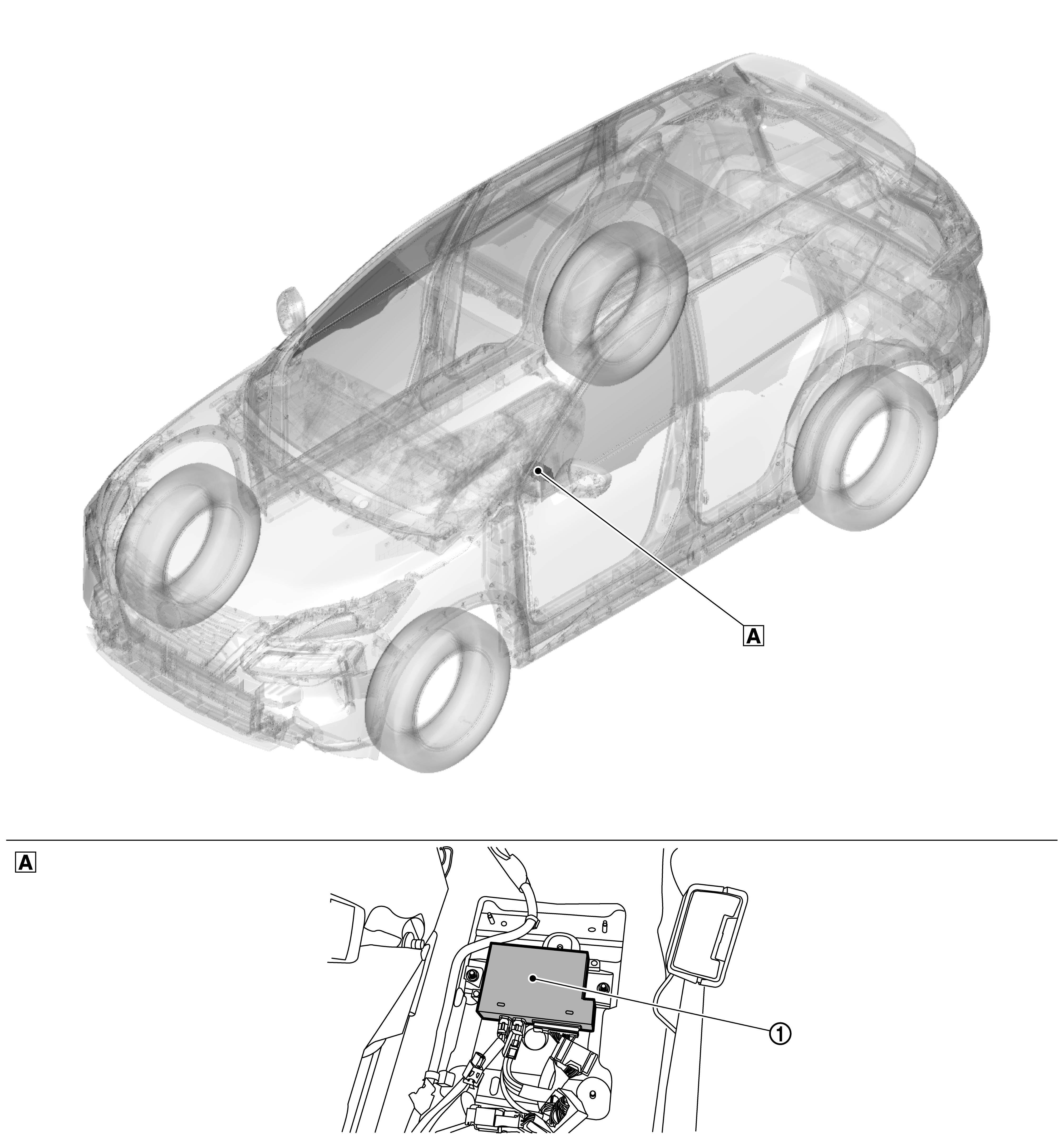

GNSILL0306852Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

View with center console assembly

SYMBOL

ADAS control unit 2
