Removal and Installation

REMOTE KEYLESS ENTRY RECEIVER

Removal

1. Remove instrument upper panel. Refer to Removal and Installation .

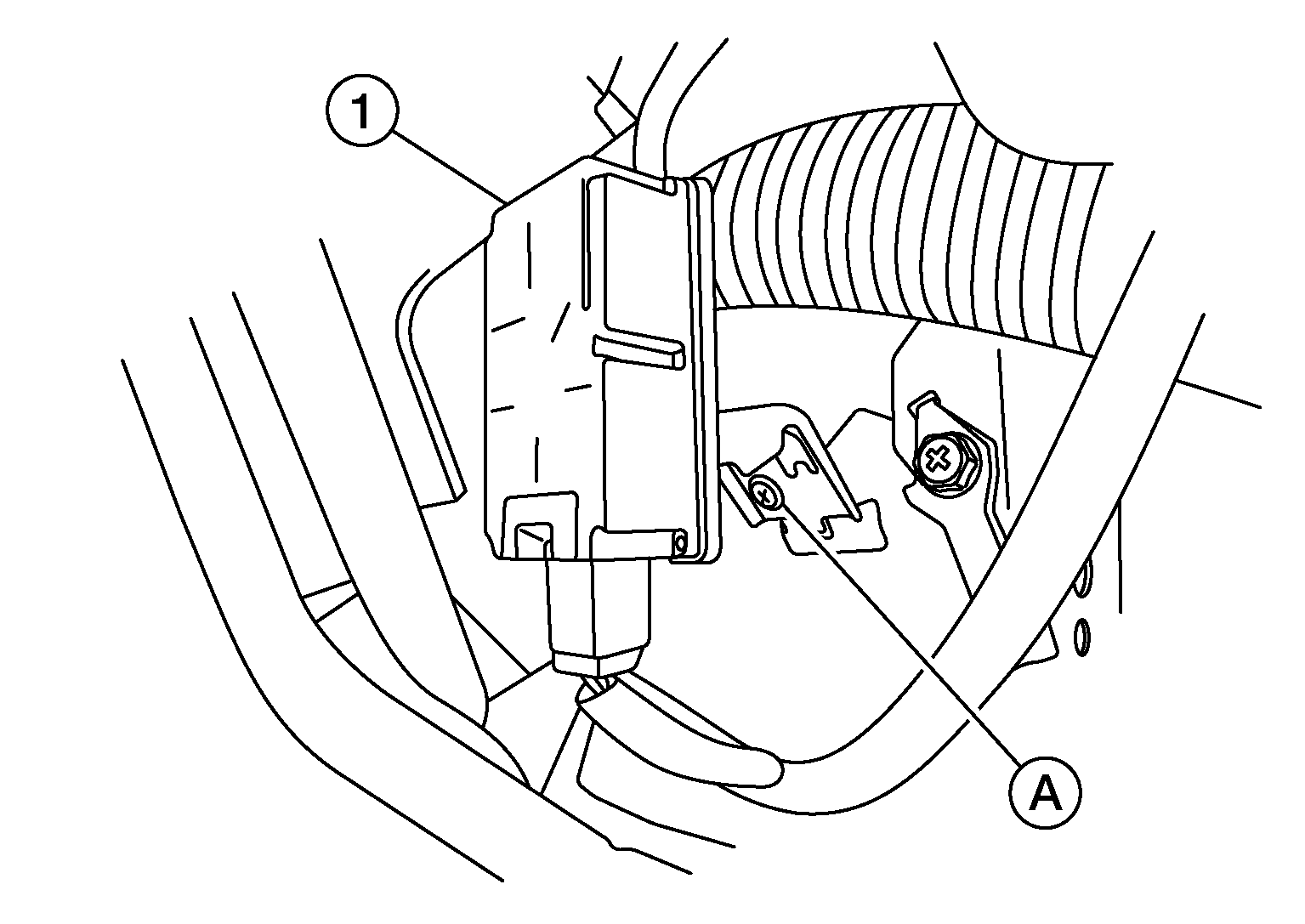

2. Disconnect the harness connector from the remote keyless entry receiver (1).

   Courtesy of NISSAN

3. Remove screw (A) and remote keyless entry receiver.
4. Remove remote keyless entry receiver from bracket.

Installation

Installation is in the reverse order of removal.
