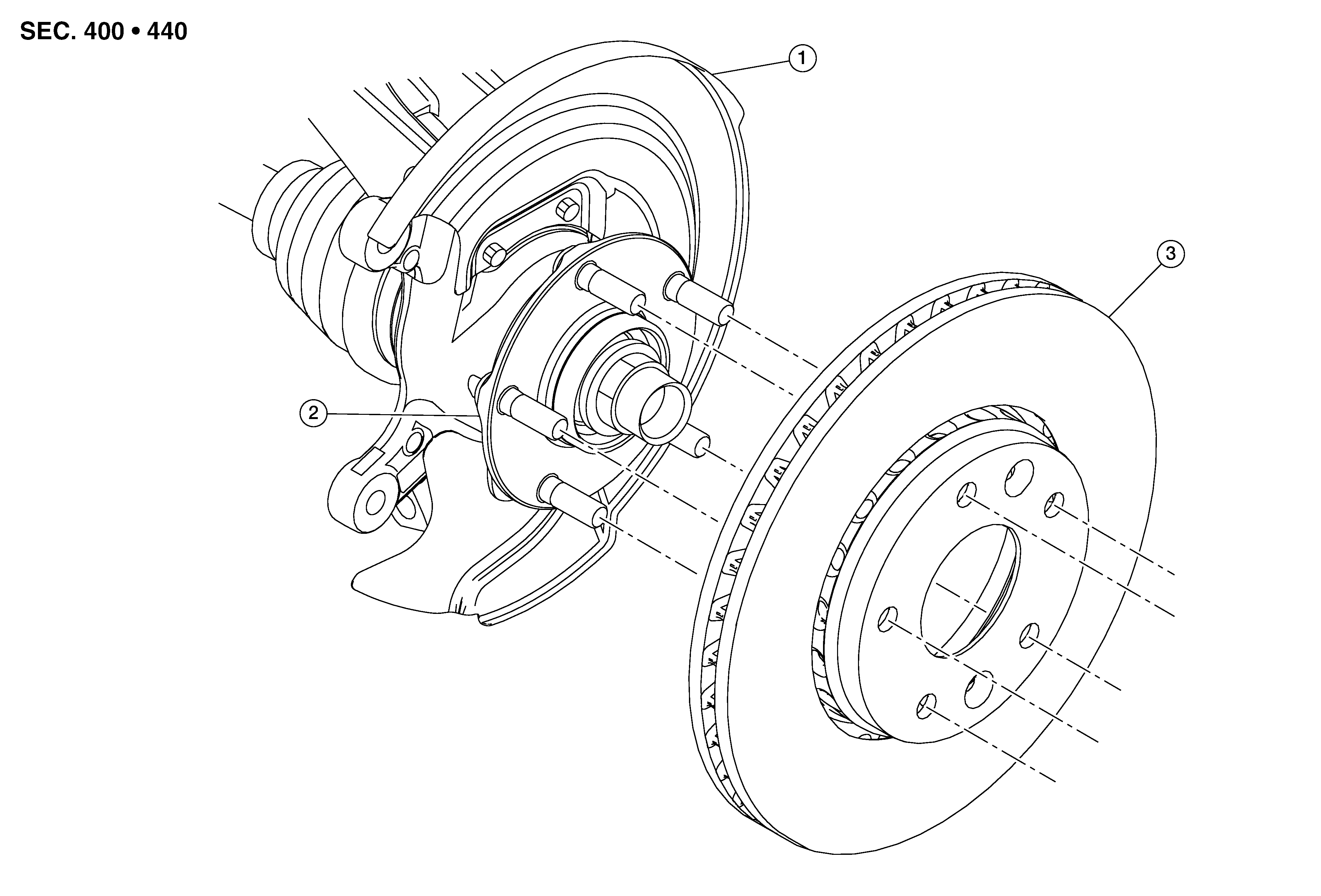

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Splash guard |
2. |
Wheel hub |
3. |
Disc brake rotor |
