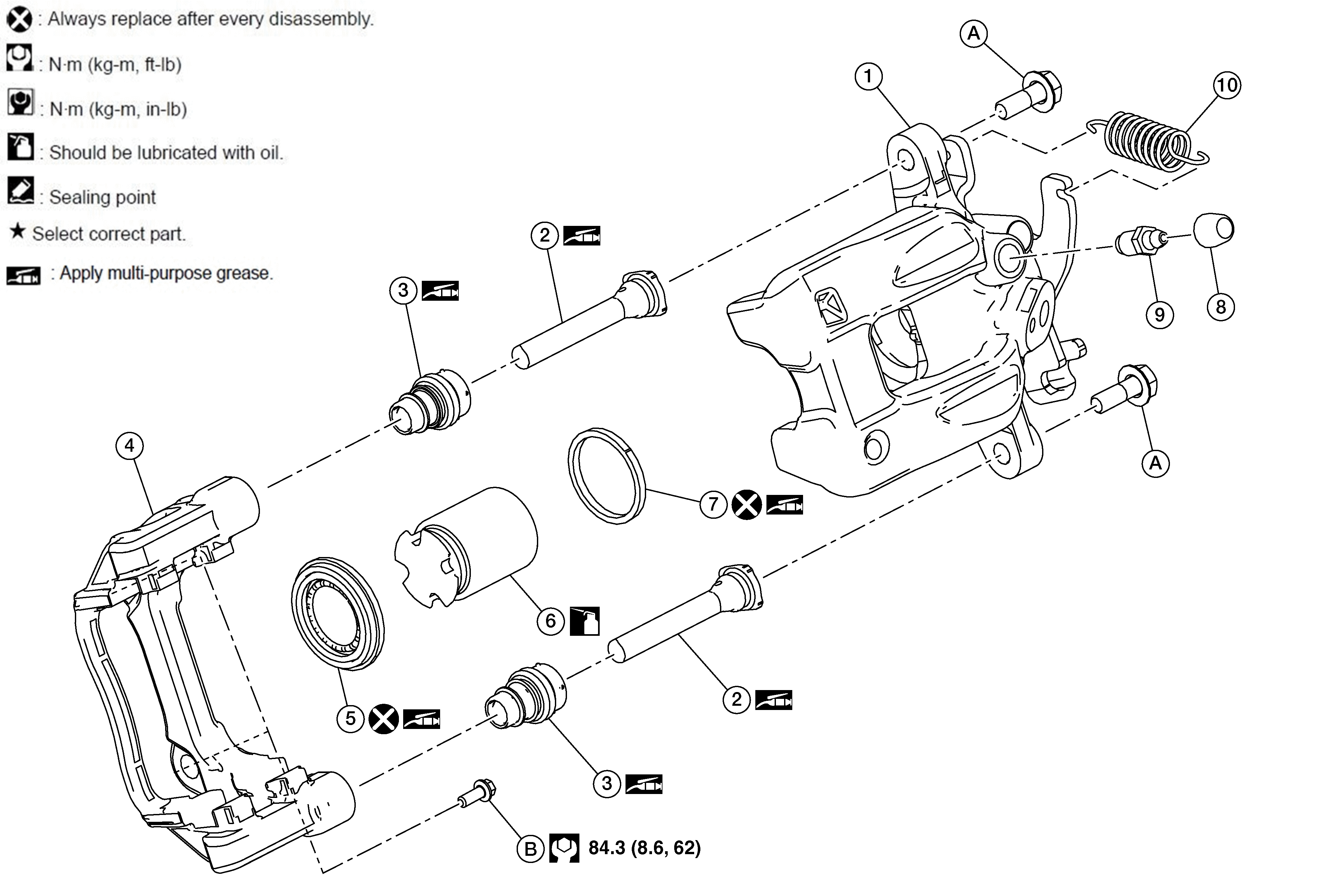

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN
| 1. |
Brake caliper body |
2. |
Slide pin |
3. |
Slide pin boot |
| 4. |
Torque member |
5. |
Piston boot |
6. |
Piston |
| 7. |
Piston seal |
8. |
Bleeder cap |
9. |
Bleeder valve |
| 10. |
Return spring |
A. |
Slide pin bolt |
B. |
Torque member bolt |
 |
Brake fluid |
